Fiamma Carry-Bike 02096-06A Bicycle Carrier Installation and User Guide

Quick guide from the manual

The Fiamma Carry-Bike 02096-06A is designed specifically for Ford Transit and Tourneo Custom vehicles. The maximum load capacity is 50 kg, allowing for up to 3 standard bikes or 2 E-bikes. Installation should be performed by qualified personnel to ensure safety and compliance with local regulations. Always verify the vehicle's compatibility and the structural integrity of the mounting points before installation.

Package contents

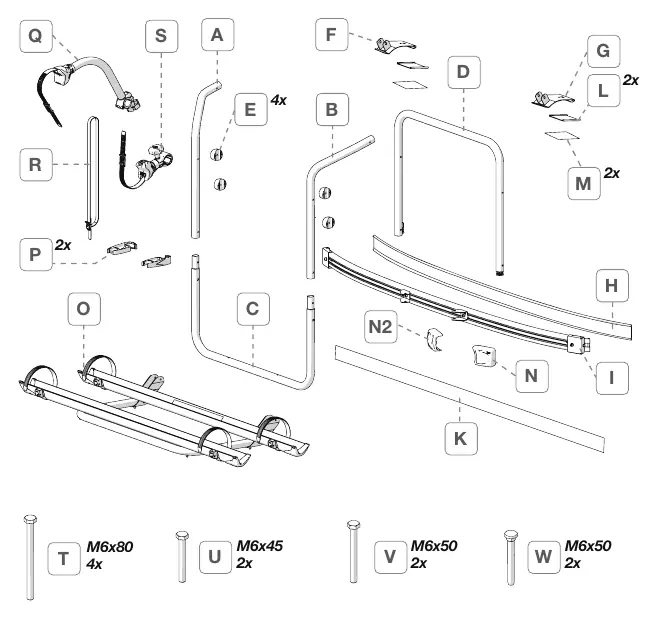

The package includes the main frame components, mounting brackets, and necessary hardware (bolts, nuts, washers). Refer to the exploded view on page 2 of the manual to identify all parts (A through Z) before beginning assembly.

Installation

The installation process involves assembling the frame and mounting it to the vehicle's rear door. Key steps include:

• Assemble the main frame structure using the provided hardware.
• Attach the upper and lower mounting brackets to the vehicle.
• Ensure the bar is mounted with the brackets in the correct position.

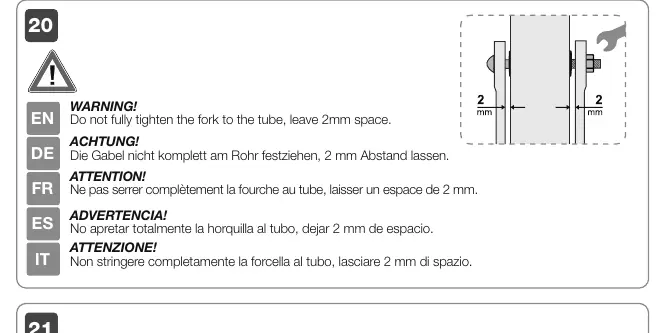

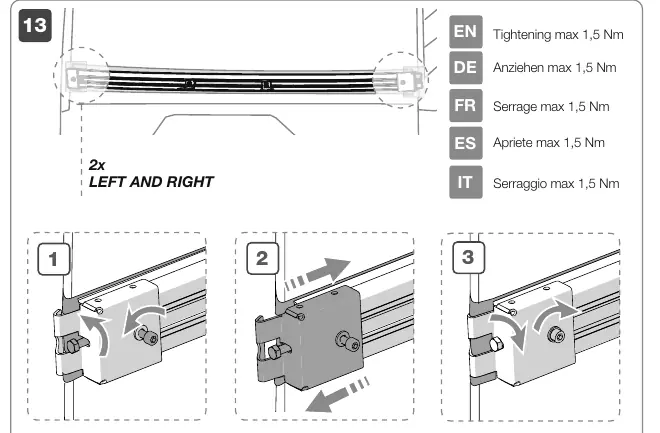

• Tighten all connections securely, but pay close attention to the specific warning regarding the fork-to-tube connection.
• Snap the tube into the brackets to hook the carrier onto the vehicle.
• Perform final adjustments to ensure the carrier is stable and does not interfere with vehicle operation.

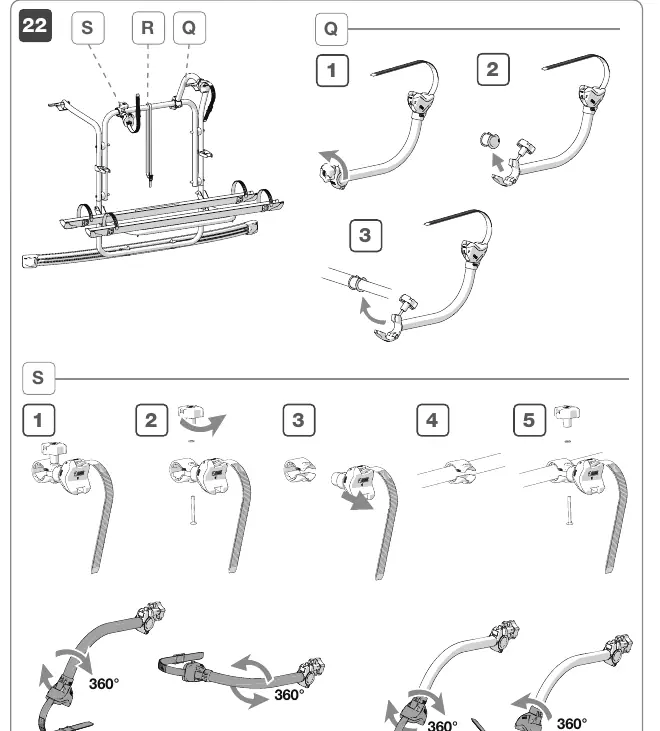

Usage and safety

Proper usage is critical for safety:

• Weight Distribution: Load bikes uniformly, placing the heaviest bikes closest to the vehicle wall.
• E-bikes: It is advisable to remove batteries from E-bikes before loading them onto the carrier.
• Bike Covers: The use of bike covers (Bike Cover) is not permitted with this model.
• Rear Visibility: If the carrier or bikes obstruct rear lights, use a light repeater bar. If rear visibility is limited, use additional rear-view mirrors.
• Vehicle Operation: You can open the tailgate with the carrier mounted, provided no bikes are loaded. Always check the rear windscreen wiper radius before operating it.
• Handlebars: Rotate bike handlebars to prevent damage to the vehicle wall.

Maintenance

Regular maintenance is required to ensure the longevity and safety of the carrier:

• Periodically check that the bicycle rack is firmly attached, especially after the first few kilometers and before/after long trips.
• Inspect belts and rubber parts regularly; replace them immediately if they show signs of wear, porosity, or damage.
• Ensure that support brackets do not shift or touch the vehicle roof, hinges, or bolts.
