User Manual for FlinQ Brushed Lawn Mower 18V
Comprehensive user guide for the FlinQ Brushed Lawn Mower 18V (FQC8525). Includes assembly instructions, operation, maintenance, safety warnings, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the FlinQ Brushed Lawn Mower 18V (FQC8525). Before using the mower, ensure the battery is fully charged and the grass catcher is correctly assembled. Always inspect the lawn for foreign objects like stones or wires before mowing. The mower is intended for private home use only and should not be used in wet conditions.
Parts description
The lawn mower consists of several key components:
- Main handle and tubes: Used for steering and control.
- Grass catcher: Collects clippings.
- Battery compartment: Houses the 18V battery pack.
- Safety Key: Must be inserted to start the motor.
- On/off switch and lock button: Used to start and stop the motor.
Assembly
Follow these steps to assemble the mower:
- Handle assembly: Attach the lower handle to the unit body and lock it with a bolt. Connect the upper and lower handle tubes using the locking knob. Ensure the cable clamp is attached.
- Grass catcher: Assemble the grass catcher bag as shown in the illustrations.
- Installation: Open the rear cover of the mower and attach the assembled grass catcher.
Operation
To operate the mower safely:
- Battery: Insert the battery into the slot and ensure it clicks into place.
- Starting: Insert the safety key. Push the safety button and grasp the gear levers to start the motor. The motor stops immediately when the switch is released.
- Cutting height: The mower has 3 height levels. To adjust, turn the mower upside down and move the wheel axle to the desired position. Ensure front and rear axles are set to the same height.
- Mowing tips: Mow across slopes, never up and down. Operate at full throttle for best results. If the grass is thick, mow in two passes.
Maintenance
Regular maintenance ensures longevity:
- Blade check: Disconnect the battery before inspecting the blade. The blade must be balanced; an unbalanced blade causes excessive vibration. Sharpen the blade if necessary and tighten the bolt to 25 Nm.
- Cleaning: Clean the mower after each use with a dry cloth or soft brush. Keep air vents clear of debris. Do not use aggressive detergents.
- Storage: Store in a dark, dry, frost-free, and well-ventilated place, out of reach of children. For long-term storage, charge the battery to 40-60%.
Specifications
- Motor voltage: 20V
- No Load Speed: 3800 rpm
- Cutting width: 320 mm
- Grass catcher capacity: 25L
- Height adjustment: 30/45/60 mm
- Sound power level: 93 dB(A)
Safety and disposal
Always wear safety glasses and ear protection. Never operate the mower with defective guards. Dispose of the product and batteries at local collection points, as they contain recyclable materials and potentially hazardous heavy metals.
Manufacturer information
FlinQ
Practical help
Common problems
Motor does not start
Ensure the battery is fully inserted, the safety key is installed, and the safety button is pressed before pulling the gear levers.
Excessive vibration
Check if the blade is damaged or unbalanced. Sharpen or replace the blade if necessary.
Battery not charging
Check if the battery is too hot or too cold (indicated by flashing red LED). Ensure the charger is properly connected to the power source.
Before use
- Ensure all parts are included and assembled.
- Check that the battery is fully charged.
- Inspect the lawn for stones, sticks, and wires.
- Verify the blade is not worn or damaged.
- Ensure all guards are properly mounted.
- Check that the safety key is available.
Specs in practice
- Motor voltage
- 20V (nominal voltage for the system).
- No Load Speed
- 3800 rpm (rotational speed of the blade without resistance).
- Cutting width
- 320 mm (the width of the path cut by the blade).
- Grass catcher capacity
- 25L (volume of grass clippings the bag can hold).
Images and diagrams

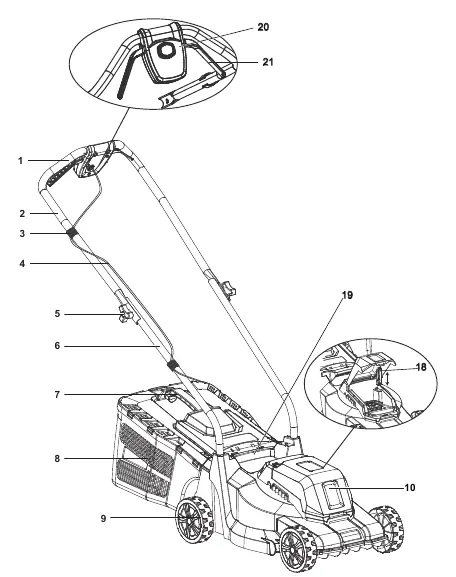

- Figure 1: Overview of all parts including handle, battery, and grass catcher.

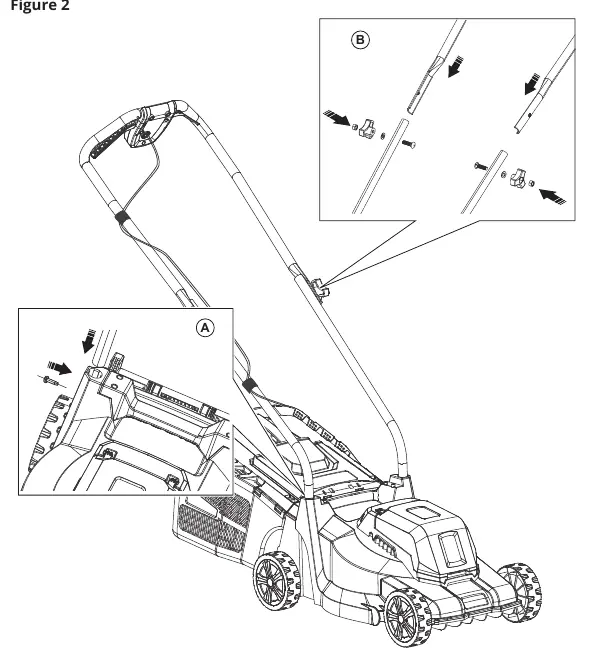

- Figure 2: Assembly of the handle tubes.

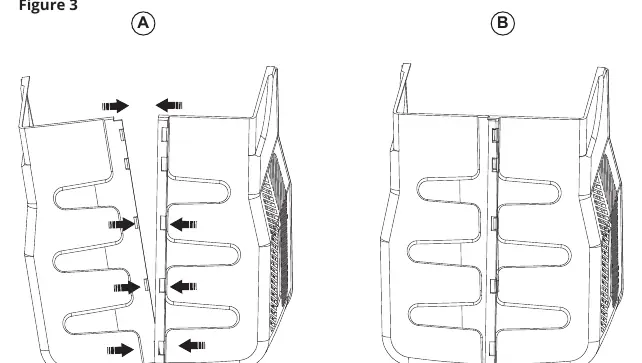

- Figure 3: Assembly of the grass catcher bag.

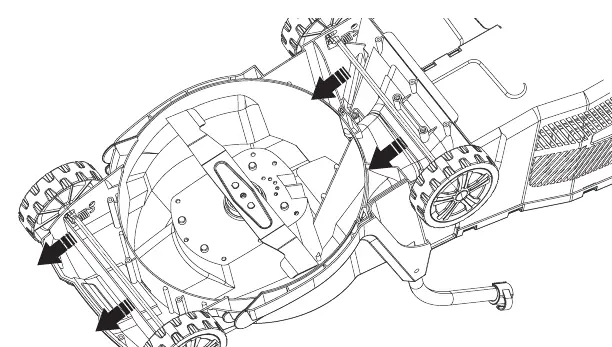

- Figure 5: Height adjustment mechanism.

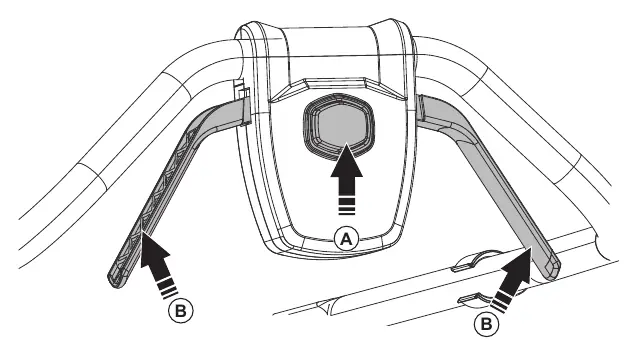

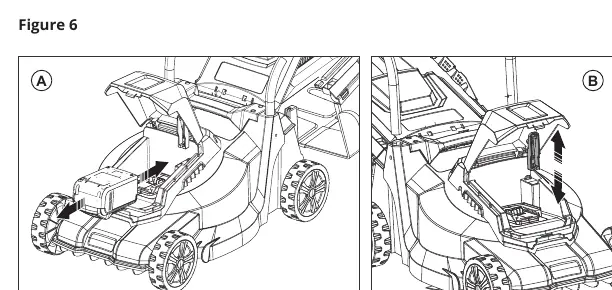

- Figure 6-7: Starting procedure using battery, safety key, and levers.
Model compatibility
- Charger is compatible with FQC8516 (2.0 Ah) and FQC8517 (4.0 Ah) battery packs.
