User Manual for FlinQ Construction Work Light 15M
Quick guide for the FlinQ Construction Work Light 15M (FQC8528). Includes installation steps, safety warnings, technical specifications, and usage guidelines.
Table of contents
Quick guide from the manual
The FlinQ Construction Work Light 15M is a linkable lighting chain designed for indoor and outdoor use. Before use, ensure all gaskets are in place to maintain the IP65 protection rating. The system is plug-and-play, but you must ensure all lampholders are fitted with a lamp before connecting to power. Do not connect the chain to the power supply while it is still in the packaging.
Installation
- Install the cord and lamps in the desired location, such as an attic, basement, storage area, stairway, parking lot, crawl space, terrace, or marina.
- Plug the power cord into a standard power supply to turn the lights on.
- If linking multiple chains, use only the supplied connectors. Ensure all open ends are sealed off before use.
Safety Warnings
- Gaskets: This lighting chain must not be used without all gaskets being in place.
- Interconnection: Do not interconnect parts of this lighting chain with parts of another manufacturer's lighting chain.
- Packaging: Do not connect the chain to the supply while it is in the packaging.
- Maintenance: The lamps are irreplaceable. The external flexible cable or cord cannot be replaced; if the cord is damaged, the entire luminaire must be destroyed.
- Assembly: Ensure all lampholders are fitted with a lamp.

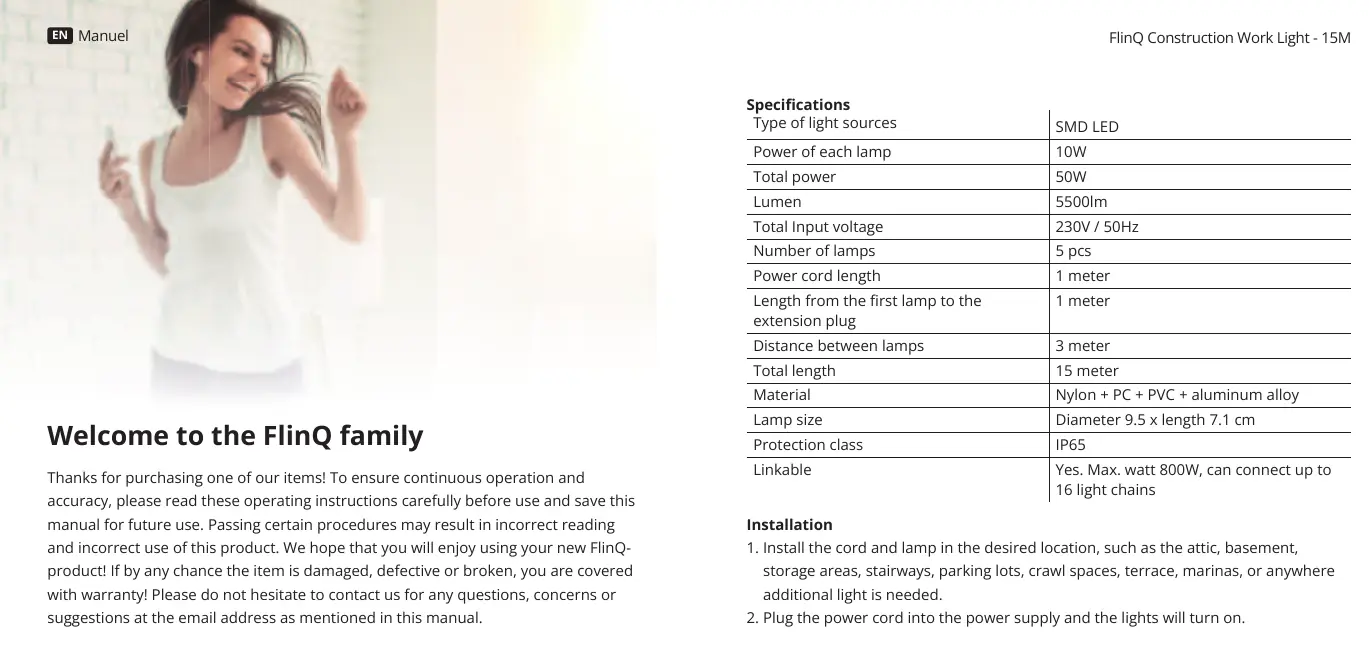

Technical Specifications
- Model: FQC8528
- Total Power: 50W
- Light Source: SMD LED
- Lumen Output: 5500lm
- Input Voltage: 230V / 50Hz
- Total Length: 15 meters
- Protection Class: IP65
- Linkability: Yes, max 800W (can connect up to 16 light chains)
- Material: Nylon + PC + PVC + aluminum alloy
Manufacturer information
FlinQ
Practical help
Common problems
Lights do not turn on
Ensure the power cord is securely plugged into the power supply.
Water ingress or moisture damage
Verify that all gaskets are correctly installed and in place.
Damaged cable
The cable is not replaceable; if damaged, the luminaire must be destroyed.
Before use
- Ensure all lampholders are fitted with a lamp.
- Verify that all gaskets are in place.
- Check that the chain is not connected to power while in the packaging.
- Ensure the power source is 230V/50Hz.
- Seal all open ends before use if linking chains.
Specs in practice
- Total Power 50W
- The combined power consumption of all 5 lamps.
Model compatibility
- Do not interconnect with lighting chains from other manufacturers.
- Use only the supplied connectors for linking chains.
