User Manual for FlinQ 2-in-1 Jump Starter & Air Compressor FQC8443

Quick guide for the FlinQ 2-in-1 Jump Starter & Air Compressor FQC8443. Learn how to use the air compressor, jump start your vehicle, adjust pressure settings, and troubleshoot common issues.

Quick answers from the manual

Quick answer

The FlinQ FQC8443 is a 2-in-1 device that functions as a portable air compressor and a vehicle jump starter. It features 5 preset inflation modes, a digital pressure display, and a built-in LED light. p. 1

Key actions

Powering on/off p. 1
Jump starting a vehicle p. 1
Inflating tires p. 1

First start

Charge the device using the Type-C port. p. 1
Power on by holding the power button for 3 seconds. p. 1

Problems and fixes

Slow inflation

Check battery level, air hose for leaks, and connection tightness.

p. 1

Maintenance and reset

Pressure Reset p. 1

Technical specifications

Parameter	Value	Meaning	Pages
Max Pressure	160 PSI	Maximum inflation pressure capacity	p. 1
Battery Capacity	29.6Wh	Internal battery energy storage	p. 1

Where to find it in the PDF

Product Overview and Specifications p. 1

Table of contents

Quick Guide

The FlinQ 2-in-1 Jump Starter & Air Compressor is a versatile tool for vehicle maintenance and inflation tasks. Always ensure the battery level is above 50% for jump-starting and above 75% if starting at zero volts. Do not leave the device unattended during inflation and avoid touching the air hose immediately after use as it may be hot.

Device Overview

The device features a digital display and control panel. Key components include:

Power Button: Hold for 3 seconds to turn on/off.
Start/Stop Button: Initiates inflation and stops automatically when the preset pressure is reached.
Mode Button: Cycles through 5 preset modes (Car, Motorcycle, Bicycle, Ball, Custom).
Unit Switch: Changes pressure units (PSI, BAR, KPA, Kg/cm).
LED Light: Cycles through light, flashing, and SOS modes.

Air Compressor Operation

Inflation:

Connect the air hose to the device.
Select the appropriate mode using the Mode button.
Adjust the preset pressure if necessary using the + or - buttons.
Connect the hose to the tire/object valve.
Press the Start/Stop button to begin. The device will stop automatically.

Deflation:

For Schrader valves, press the air needle inside the nozzle with a tool (e.g., 4mm hex wrench). For Presta valves, unscrew the valve and press the nozzle.

Jump Starter Operation

Connect the ignition clamp to the jump starter interface.
Ensure the red and green lights flash alternately.
Attach the clamps to the car battery (Red to Positive, Black to Negative).
Start the vehicle.
Remove the jump starter immediately after the engine starts.

Maintenance and Troubleshooting

If the device shows slow inflation, check for air leaks in the hose or ensure the connections are tight. If the device turns on but does not inflate, verify that the current tire pressure is not already higher than the preset value. The device will automatically power off after 3 minutes of inactivity.

Safety Precautions

Keep away from flammable and explosive items.
Avoid moisture, sediment, and falls.
Do not store in extremely cold or hot environments.
Keep out of reach of children.
Do not use the inflator while it is charging.

Manufacturer information

FlinQ

Brand profile

Manufacturer website https://www.flinqproducts.nl Support https://www.flinqproducts.nl Manufacturer manuals https://www.flinqproducts.nl

Practical help

Common problems

Slow inflation

Check if the battery is sufficient, inspect the air hose for leaks, and ensure connections at both ends are tight.

Device turns on but does not inflate

Check if the battery is sufficient and verify that the current tire pressure is not higher than the preset value.

Preset pressure cannot be adjusted

Ensure the correct inflation mode is selected. Use Custom mode to adjust values between 2-160 psi.

Pressure reads 0

Low-pressure items like balloons may not be within the measurable range. For empty tires, inflate for a short period to register pressure.

Before use

Charge the device fully before first use.
Check the air hose for any visible damage or leaks.
Ensure the battery level is above 50% for jump-starting.
Select the correct inflation mode for the object (Car, Bike, etc.).
Verify the valve type (Schrader or Presta) and use the appropriate adapter if needed.

Specs in practice

Max Inflation Pressure: 160 PSI
Battery Capacity: 29.6Wh
Working Temperature: -10 to +45 degrees Celsius

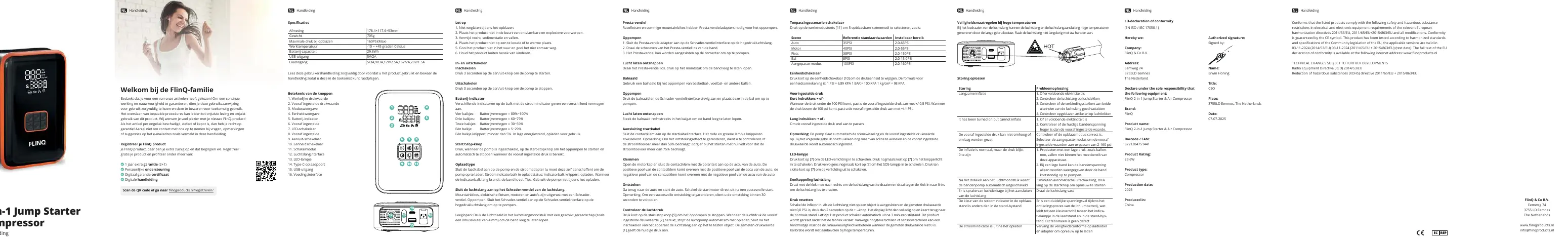

Images and diagrams

The control panel includes buttons for power, mode selection, unit switching, and LED light control.
The display shows actual pressure, preset pressure, battery level, and mode indicators.
The jump starter interface is located separately from the air hose interface.

Model compatibility

Compatible with Schrader valves directly.
Presta valves require the included adapter.
Suitable for cars, motorcycles, bicycles, and sports balls.
