User Manual for Fortin Blacked Out Zuul Noise Gate Pedal
Quick guide for the Fortin Blacked Out Zuul noise gate pedal. Learn how to connect using 2CM, 3CM, or 4CM methods, understand the threshold and key input controls, and troubleshoot ground loop noise.
Table of contents
Quick Guide
The Fortin Blacked Out Zuul is a high-quality noise gate pedal designed for guitar, bass, or any signal source. It features a threshold knob to control gate dynamics and a dual-color LED for visual feedback. The pedal can be used in front of an amplifier or in a series effects loop. For optimal performance, especially when using high-gain setups, utilize the Key input feature.
Controls and Indicators
- Bypass: True bypass footswitch.
- Gate: Adjusts the level required to open the noise gate and allow the signal to pass through.
- Key: Input for triggering the gate directly from your guitar signal, bypassing earlier boosts or dirt pedals. Only applicable for 3CM and 4CM setups. A splitter cable is required to separate the in/out of the Zuul Key.
- Ground Lift Switch: Use this switch to eliminate potential noise caused by ground loops when using the Key input in 3CM or 4CM configurations.
- Zuul In: Instrument input (2CM) or connection to amp effects (3CM/4CM).
- Zuul Out: Output to the next unit in the chain (2CM) or to time-based effects like modulations, reverbs, and delays (3CM/4CM).
- LED Indicator: Green = Open, Orange = Closed, Off = Bypass.
Setup Methods and Connections
The pedal supports various connection methods depending on your rig:
- 2 Cable Method (No FX Loop): Standard pedalboard chain setup.
- 2 Cable Method (With FX Loop): Pedal placed within the amplifier's effects loop.
- 3/4 Cable Method: Advanced setups using the Key input. This allows the gate to trigger directly from your guitar signal, ensuring clean to high-gain transitions without adjusting the Threshold knob.
Power Requirements
The pedal requires a 9-12VDC center pin negative, fully regulated external power supply. The power draw is 40mA.
Warranty and Support
For full and up-to-date information regarding the Fortin warranty, please visit the official website at www.fortinamps.com. You can also contact support via email at [email protected].
Official resources from the manual
Practical help
Common problems
Audible noise or hum
If using the Key input in 3CM or 4CM setups, engage the Ground Lift switch to eliminate ground loop noise.
Gate not triggering correctly with high gain
Ensure you are using the Key input with a 3CM or 4CM setup. This allows the gate to trigger from the clean guitar signal rather than the affected signal.
Before use
- Verify your power supply is 9-12VDC, center pin negative.
- Ensure your power supply can provide at least 40mA.
- Determine your preferred connection method (2CM, 3CM, or 4CM).
- If using the Key input, ensure you have a splitter cable to separate the in/out signals.
Images and diagrams

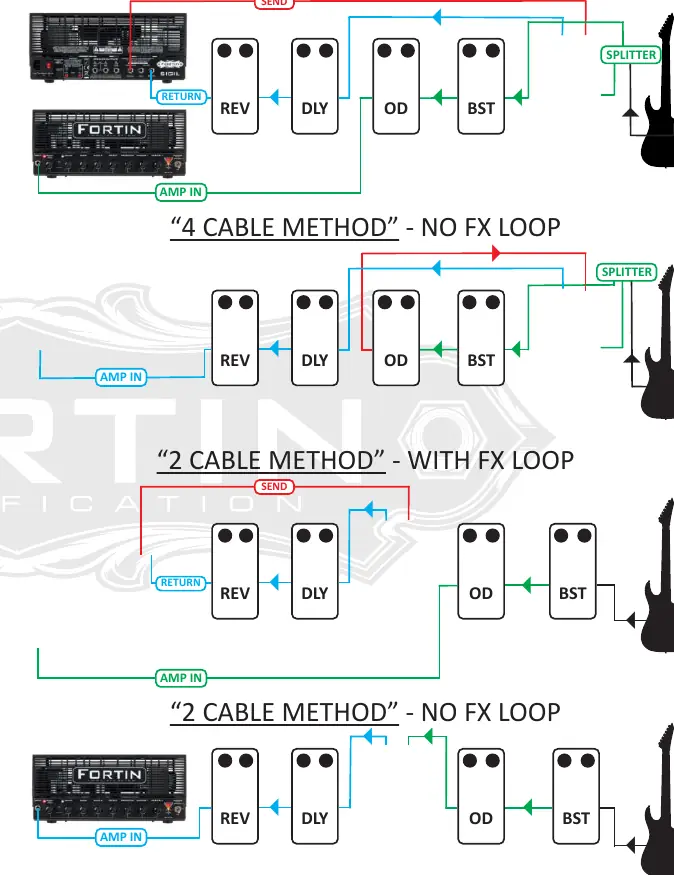

- The manual provides four distinct wiring diagrams: 2 Cable Method (No FX Loop), 2 Cable Method (With FX Loop), 4 Cable Method (No FX Loop), and 4 Cable Method (With FX Loop).
- These diagrams illustrate the correct signal flow between the guitar, the Zuul pedal, the amplifier, and other effects (REV, DLY, OD, BST).
Model compatibility
- The Key input feature is specifically designed for 3CM and 4CM (Cable Method) setups.
- The pedal functions as a standard gate in 2CM without the Key input, but 3CM/4CM is recommended for the best response.
