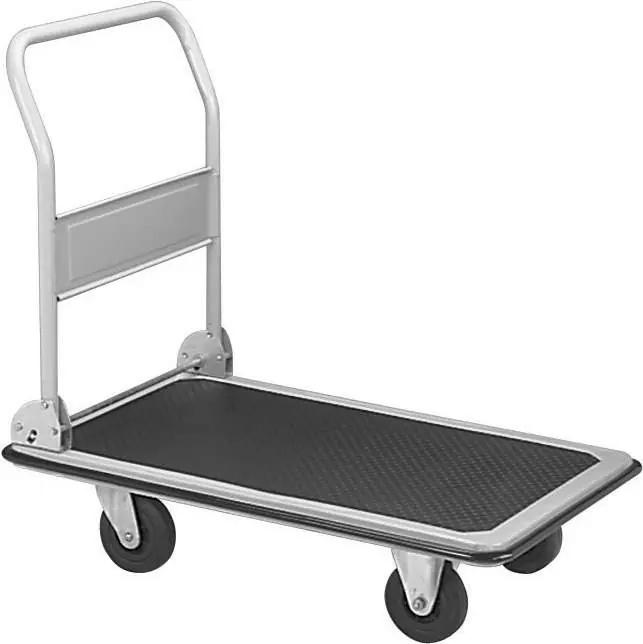

Owner's Manual for Franklin 19-Inch x 29-Inch Folding Platform Truck
Quick guide for the Franklin 19-Inch x 29-Inch Folding Platform Truck (Model 58300). Includes assembly instructions, operation steps, safety precautions, and technical specifications.
Quick answers from the manual
Quick answer
- The Franklin 19-Inch x 29-Inch Folding Platform Truck (Model 58300) has a weight capacity of 330 lb. It requires assembly of the fixed and swivel casters before first use. p. 2
Key actions
- Assemble the truck by attaching fixed casters near the handle bracket and swivel casters to the opposite end. p. 2
- Fold the truck by stepping on the bar at the base of the handle and pushing the handle forward. p. 3
First start
- Unpack and inspect for damage. Assemble the casters using the provided bolts and washers. Ensure all bolts are tightened securely. p. 1, 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Weight Capacity | 330 lb. | Maximum load limit | p. 2 |
| Platform Size | 19" x 29" | Dimensions of the platform | p. 2 |
Where to find it in the PDF
- Cover and Safety p. 1
- Assembly and Specs p. 2
- Operation and Warranty p. 3
- Parts List p. 4
Table of contents
Manual images
Click an image to enlargeImportant information from the manual
This document provides essential safety, assembly, and operation instructions for the Franklin 19-Inch x 29-Inch Folding Platform Truck (Model 58300). The truck has a maximum weight capacity of 330 lb. Users should inspect the product before every use and ensure all bolts are tightened securely.
Safety Information
Operation Precautions:
- This product is not a toy; do not allow children to play with or near it.
- Do not exceed the 330 lb weight capacity.
- Be aware of dynamic loading; sudden load movement may create excess load and cause product failure.
- Inspect the truck before every use; do not use if parts are loose or damaged.
- Maintain all product labels and nameplates.
Assembly Precautions:
- Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly, folding, and unfolding.
- Keep the assembly area clean and well-lit.
- Keep bystanders away during assembly.
- Do not assemble when tired or under the influence of medication.
Specifications
- Platform Size: 19 inches x 29 inches
- Weight Capacity: 330 lb
Assembly Instructions
The truck requires the installation of casters before use. Note that fixed and swivel casters can be installed on opposite ends if desired.

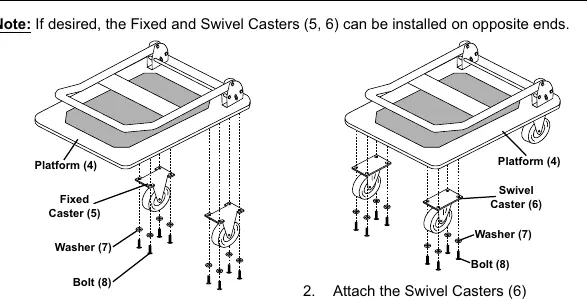

- Attach the Fixed Casters (5) to the Platform (4) near the Handle Bracket (3) using Washers (7) and Bolts (8).
- Attach the Swivel Casters (6) to the other end of the Platform (4) using Washers (7) and Bolts (8).
- Tighten all Bolts (8) securely.
Operation
Unfolding: Pull up on the Handle (1) until it locks into place.
Folding:
- Step on the bar at the base of the Handle (1).
- Push the Handle (1) forward until it lays flat.
Parts List
The following parts are included:
- Handle (1) - Qty: 1
- Baffle (2) - Qty: 1
- Handle Bracket (3) - Qty: 1
- Platform (4) - Qty: 1
- Fixed Caster (5) - Qty: 2
- Swivel Caster (6) - Qty: 2
- Washer (7) - Qty: 16
- Bolt (8) - Qty: 16
Note: Some parts are listed for illustration purposes only and are not available individually. Specify UPC 193175446121 when ordering parts.
Practical help
Common problems
Product failure due to dynamic loading
Do not exceed the weight capacity. Be aware that sudden load movement can create excess load.
Parts missing or broken upon unpacking
Call 1-888-866-5797 as soon as possible.
Before use
- Inspect for loose or damaged parts before every use.
- Ensure the assembly area is clean and well-lit.
- Wear ANSI-approved safety goggles and heavy-duty work gloves.
- Verify the load does not exceed 330 lb.
- Ensure the handle is locked into place before loading.
Specs in practice
- Weight Capacity
- The maximum load the truck can safely carry is 330 lb.
- Platform Size
- The dimensions of the loading surface are 19 inches by 29 inches.
Images and diagrams

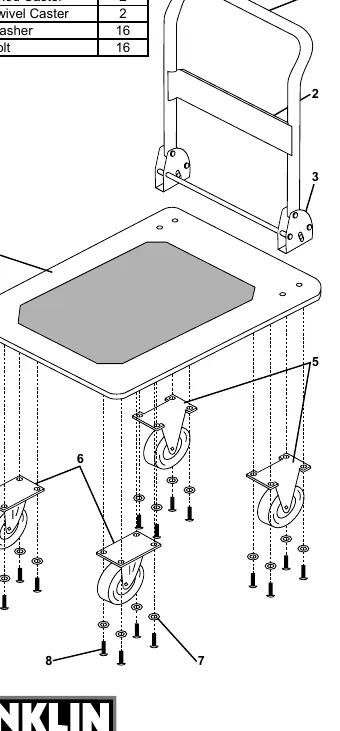

- The assembly diagram shows the placement of fixed casters near the handle bracket and swivel casters on the opposite end.
- The operation illustration demonstrates stepping on the base bar to release the handle for folding.
Model compatibility
- Parts are not available individually; specify UPC 193175446121 when ordering parts.
Manual page author
Emily Carter
User documentation editor
Prepares concise manual descriptions and highlights the most useful setup, operation, and maintenance information for readers.
