Installation and User Manual for Hansgrohe Talis S² Variarc Kitchen Mixer
Quick guide for installing and operating the Hansgrohe Talis S² Variarc kitchen mixer. Includes technical specifications, hot water limiter adjustment, and installation steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential installation and operation instructions for the Hansgrohe Talis S² Variarc kitchen mixer. Always wear gloves during installation to prevent crushing and cutting injuries. Ensure that hot and cold water supplies are balanced before installation. If connecting a dishwasher or washing machine to the appliance connection valve, ensure it carries the DVGW emblem; otherwise, the valve must be plugged.
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0.1 - 0.5 MPa
- Test pressure: 1.6 MPa
- Hot water temperature: max. 80°C
- Recommended hot water temperature: 65°C
- Flow rate at 0.3 MPa: 10 l/min
Hansgrohe mixers can be used with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0.15 MPa.
Installation
The fitting must be installed, flushed, and tested according to valid norms. Refer to page 17 for the step-by-step installation sequence, including mounting the base and connecting the water supplies.
Operation
The mixer is operated via a single lever. Lift the lever to open and adjust the flow; turn left or right to adjust the temperature (see page 21).
Adjustment
The mixer features a hot water limiter. To adjust this, follow the steps on page 23. Note that if you are using a continuous flow water heater, this adjustment is generally not necessary.
Maintenance and Cleaning
Do not use silicone containing acetic acid. For cleaning, refer to the enclosed brochure. For spare parts, refer to the diagram on page 22.
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Large pressure difference between hot and cold water supplies.
These must be balanced.
Appliance connection valve is not being used.
The valve must be plugged.
Hot water temperature is too high or low.
Adjust the hot water limiter as described on page 23.
Before use
- Wear gloves during installation to prevent injuries.
- Ensure hot and cold water pressures are balanced.
- Flush the system thoroughly before installation.
- Check that any connected dishwasher/washing machine has the DVGW emblem.
- Plug the appliance connection valve if no device is connected.
Specs in practice
- Operating pressure
- Maximum pressure the mixer can withstand (1 MPa / 10 bar).
- Recommended operating pressure
- Optimal pressure range for best performance (0.1 - 0.5 MPa).
Images and diagrams

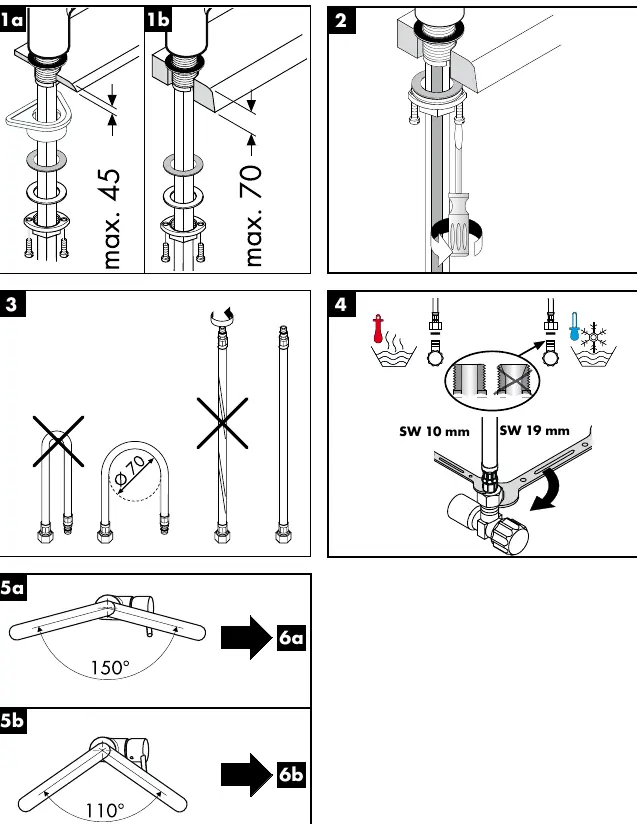

- Page 17: Installation steps for the mixer.
- Page 18-19: Swivel range adjustment.

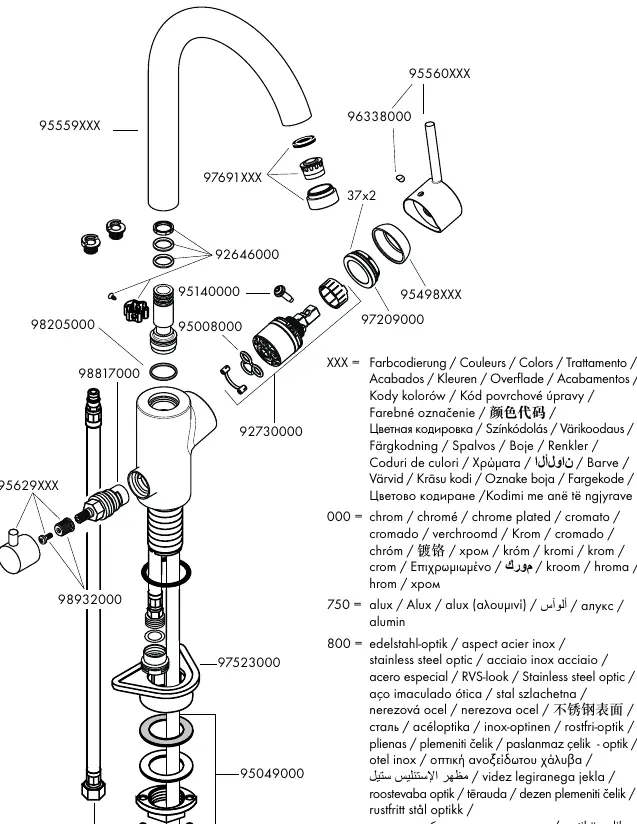

- Page 22: Exploded view of spare parts.

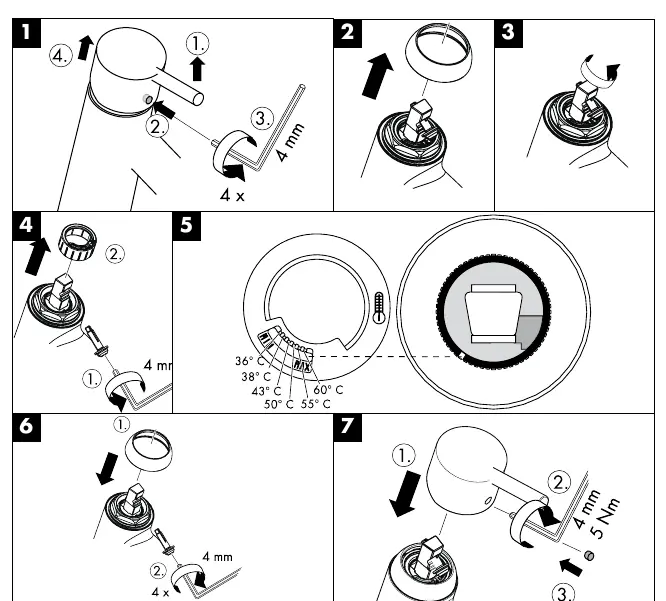

- Page 23: Hot water limiter adjustment procedure.
Model compatibility
- Compatible with hydraulically and thermally controlled continuous flow heaters if flow pressure is at least 0.15 MPa.
