Hansgrohe Pulsify S Showerpipe 260 1jet EcoSmart with ShowerTablet Select 400 User Guide
User guide and technical documentation for the Hansgrohe Pulsify S Showerpipe 260 1jet EcoSmart with ShowerTablet Select 400. Includes installation dimensions, technical specifications, and a detailed spare parts list.
Quick answers from the manual
Quick answer
- The Hansgrohe Pulsify S Showerpipe 260 1jet EcoSmart with ShowerTablet Select 400 is a wall-mounted shower system with a thermostat, overhead shower, and hand shower. It operates between 0.9 and 10 bar of pressure and features a 40°C safety lock. p. 1
Key actions
- Adjusting temperature p. 1
- Adjusting shower height p. 1
Maintenance and reset
- Spare parts replacement p. 4, 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Operating Pressure | 0.9 - 10 bar | Required water pressure range | p. 1 |
| Flow Rate (Overhead) | 7.5 l/min | Water flow at 3 bar | p. 1 |
Where to find it in the PDF
- Product Description and Specs p. 1
- Dimensions and Flow Diagram p. 2, 3
- Spare Parts p. 4, 5
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Hansgrohe Pulsify S Showerpipe 260 1jet EcoSmart with ShowerTablet Select 400 is a complete shower system featuring a thermostat, overhead shower, and hand shower. Key features include the CoolContact thermostat, which prevents the outer surface from becoming hot, and a safety lock at 40°C. The system is designed for wall-mounted installation.
Product Description
The system consists of the following components:
- Overhead shower: Pulsify 260 1jet with PowderRain spray type.
- Hand shower: Features PowderRain, IntenseRain, and Massage spray types.
- ShowerTablet Select 400 thermostat.
- Shower arm, shower hose, and sliding shower holder.
- Plastic shelf (graphite finish).
Technical Specifications
- Operating Pressure: Minimum 0.9 bar, Maximum 10 bar.
- Flow Rate (Overhead Shower at 3 bar): 7.5 l/min.
- Flow Rate (Hand Shower at 3 bar): 6.4 l/min.
- Center Distance: 150 ± 12 mm.
- Safety: Intrinsically safe against backflow; safety lock at 40°C.
- Shower Arm Length: 398 mm.
Installation and Dimensions
The system is designed for surface-mounted installation. The height of the riser pipe can be shortened if necessary. The shower arm is rotatable, and the overhead shower angle is adjustable via a ball joint. The sliding shower holder is height-adjustable with a locking push-slider.
Spare Parts
The system includes a detailed exploded view and a comprehensive spare parts list. Key replaceable components include the thermostat cartridge, temperature control unit, non-return valves, and various O-rings. Refer to the spare parts list for specific article numbers when ordering replacements.
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Low water flow
Check if the water pressure is within the required range (0.9 - 10 bar) and ensure the flow limiters are not clogged.
Shower surface gets hot
Ensure the CoolContact thermostat is installed correctly; the technology is designed to keep the exterior cool.
Before use
- Verify that the water supply pressure is between 0.9 and 10 bar.
- Ensure the installation center distance is 150 ± 12 mm.
- Check that all connections are tight and leak-free.
- Confirm the thermostat is set to the desired temperature using the Select button.
Specs in practice
- Operating Pressure
- The range of water pressure (0.9-10 bar) required for the system to function correctly.
Images and diagrams

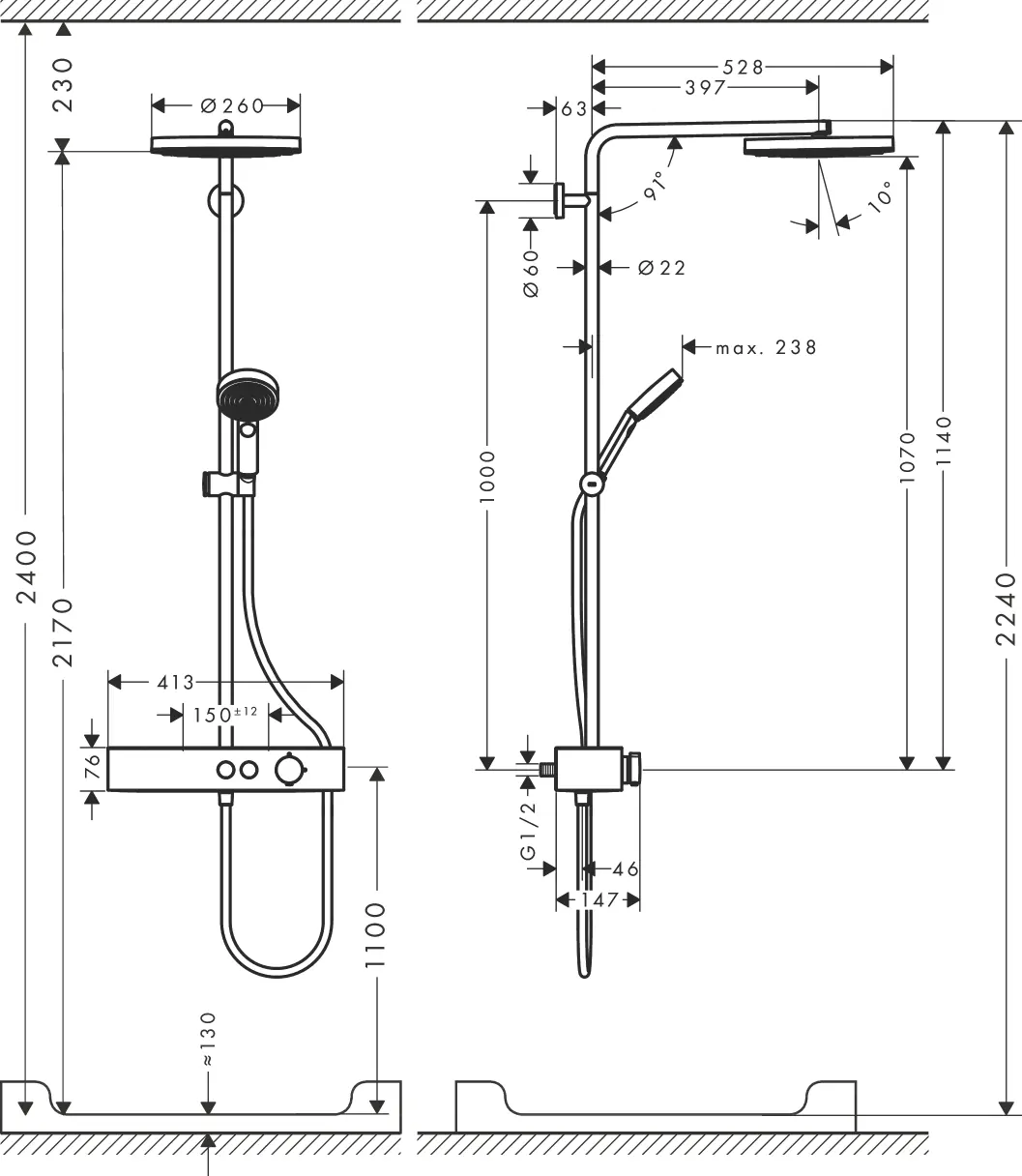

- The dimensional drawing provides the exact height, width, and depth requirements for installation.
- The exploded view identifies all individual components and their assembly order for maintenance and repair.
Model compatibility
- Designed for standard wall-mounted installation.
- Compatible with systems requiring 150mm center distance.
