User Manual for Hansgrohe Talis Classic Basin Mixer
A comprehensive guide for the Hansgrohe Talis Classic Basin Mixer. This manual provides essential information on installation, operation, maintenance, technical specifications, and troubleshooting to ensure optimal performance.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for the Hansgrohe Talis Classic Basin Mixer. Key safety requirements include wearing gloves during installation to prevent injury and balancing pressure between hot and cold water supplies. Do not use acetic acid-based silicone during installation.
Installation
The fitting must be installed, flushed, and tested according to valid norms. If you experience issues with a continuous flow water heater or require higher water flow, the EcoSmart flow limiter located behind the aerator can be removed.

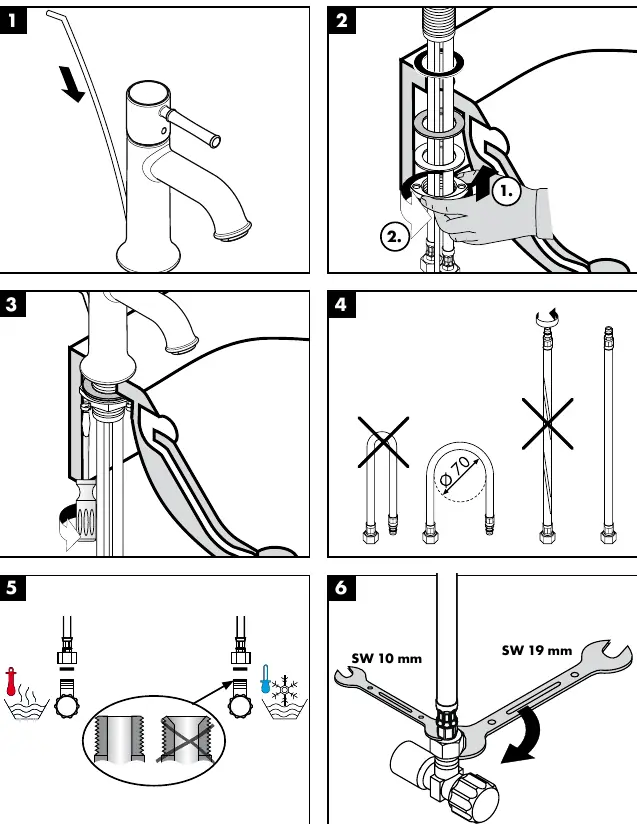

- Step 1-3: Prepare the basin and install the mixer body.
- Step 4-5: Ensure proper connection of water supplies.
- Step 6: Tighten connections using appropriate tools (SW 10mm and SW 19mm).

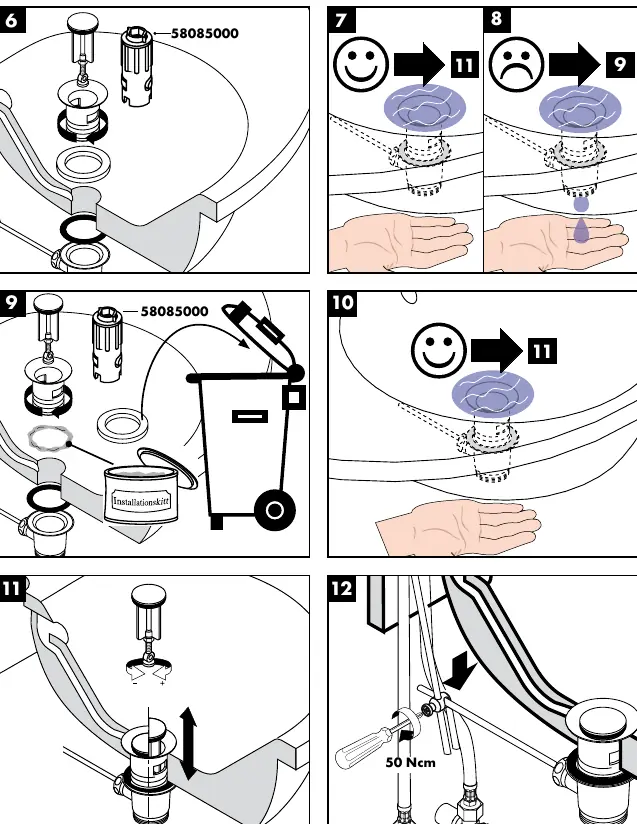

- Step 7-12: Install the drain assembly and test for leaks.
Technical Data
The mixer is equipped with EcoSmart (flow limiter) as standard.
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0.1 – 0.5 MPa
- Test pressure: 1.6 MPa
- Hot water temperature: max. 80°C
- Recommended hot water temperature: 65°C
Hansgrohe mixers can be used with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0.15 MPa.
Operation
The mixer is operated via a single lever. Lift the lever to open and adjust flow; turn left/right to adjust temperature.
Adjustment
The mixer features a hot water limiter. To adjust, remove the handle and adjust the limiter mechanism (see page 33). No adjustment is necessary when using a continuous flow water heater.
Maintenance
The QuickClean cleaning function allows for easy removal of lime scale. Simply rub your fingers over the spray channels to dislodge deposits. For general cleaning, use mild soap and water; do not use abrasive cleaners.
Spare Parts

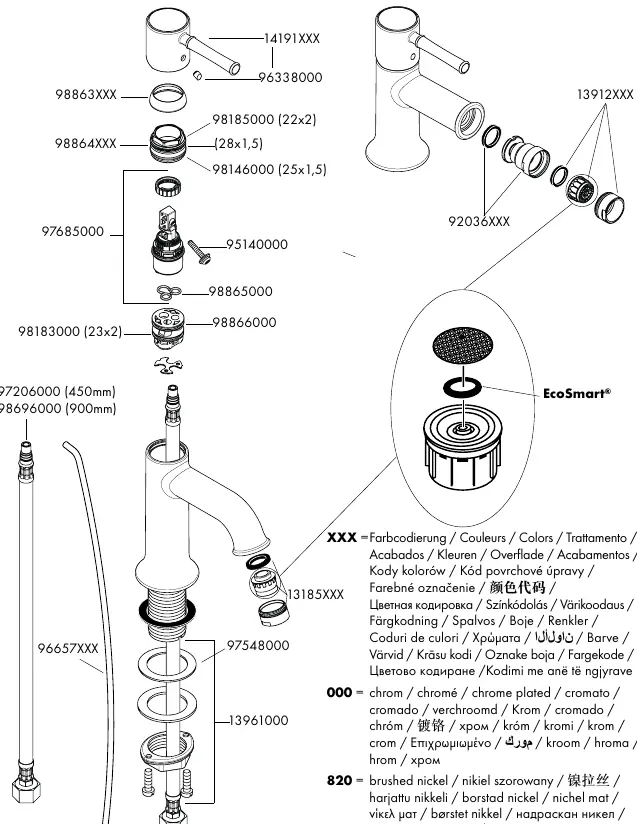

Refer to the spare parts diagram on page 38 for component identification and ordering numbers.
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Low water flow
Remove the EcoSmart flow limiter located behind the aerator.
Water heater issues
Ensure flow pressure is at least 0.15 MPa.
Pressure differences
Balance the pressure between hot and cold water supplies.
Before use
- Wear gloves during installation to prevent injury
- Flush pipes before installation
- Check for equal pressure between hot and cold supplies
- Do not use acetic acid-based silicone
Specs in practice
- Operating pressure
- Maximum pressure the mixer can withstand (1 MPa = 10 bar = 147 PSI)
- Recommended operating pressure
- Optimal pressure range for best performance (0.1 – 0.5 MPa)
- Hot water temperature
- Maximum safe temperature for the mixer (80°C)
Images and diagrams
- Flow diagram shows performance with and without EcoSmart
- Spare parts diagram identifies components by number
Model compatibility
- Compatible with hydraulically and thermally controlled continuous flow heaters if pressure is at least 0.15 MPa
