User Manual for HiKOKI DS 12DA and DV 12DA Cordless Drills
Quick guide for the HiKOKI DS 12DA and DV 12DA cordless drills. Includes setup, charging, operation, maintenance, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe and efficient operation of the HiKOKI DS 12DA (Cordless Driver Drill) and DV 12DA (Cordless Combi Drill). Always read the safety warnings before use.
Safety Warnings
General Power Tool Safety: Keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres. Keep children and bystanders away. Use personal protective equipment, including eye protection.
Battery Tool Safety: Recharge only with the specified charger. Use only designated battery packs. Keep battery terminals free of metal objects to prevent short circuits. Do not expose batteries to fire or excessive temperatures.
Charging
Before using the tool, charge the battery. Connect the charger to a power source, insert the battery, and monitor the pilot lamp. A blinking red light indicates charging status. If the lamp flickers, check for foreign objects in the battery connector.
Mounting and Operation
- Removing/Inserting Battery: Use the latch to release or secure the battery.
- Selecting Mode: Use the mode-switching dial to select between drilling and driving (or impact drilling for DV12DA).
- Torque Adjustment: Use the clutch dial to set the tightening torque.
- Mounting the Bit: Insert the bit into the keyless chuck and tighten the sleeve securely.
- Reversing Rotation: Use the push button to change the rotational direction.
Maintenance and Inspection
Regularly inspect the tool for dull bits, loose mounting screws, and motor condition. Keep the tool clean and store it in a dry place below 40°C, out of reach of children. Ensure lithium-ion batteries are fully charged before long-term storage.
LED Light Warning Signals
The tool features protection functions. If triggered, the LED light will blink. Refer to the manual's Table 3 for specific blink patterns and corrective actions, such as adjusting the shift knob to LOW or allowing the tool to cool.
Manufacturer information
HiKOKI
Practical help
Common problems
Motor stops during operation
Battery is empty (charge it) or tool is overloaded (release switch and remove cause).
Battery overheated
Stop using and let the battery cool down.
Pilot lamp does not blink when charger is connected
Check power connection or contact an authorized service center.
Before use
- Ensure work area is clean and well-lit.
- Check for hidden obstructions (wiring, pipes) in the drilling area.
- Ensure battery is fully charged.
- Check that the bit is securely mounted in the keyless chuck.
- Verify the correct mode (drill/impact) is selected.
Specs in practice
- No-load speed
- Speed of the tool without a load.
- Drill chuck capacity
- Maximum diameter of the drill bit shank.
Images and diagrams
- Fig 2: Battery removal/insertion.
- Fig 3: Charging process.
- Fig 4: Mode selection.

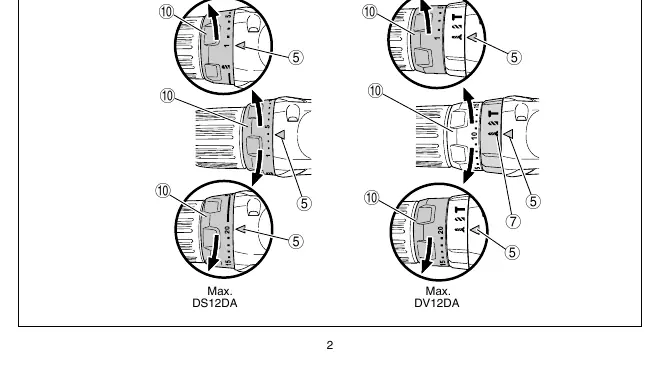

- Fig 5: Torque adjustment.
- Fig 10: Mounting the bit.
Model compatibility
- Use only designated genuine HiKOKI batteries.
- DV12DA is for brick/concrete; DS12DA is for wood/metal/screws.
