Hilti TE 2-A22 Cordless Rotary Hammer User Manual
Quick guide for the Hilti TE 2-A22 Cordless Rotary Hammer. Includes setup, operation, maintenance, safety instructions, and troubleshooting.
Quick answers from the manual
Quick answer
- The Hilti TE 2-A22 is a battery-powered rotary hammer designed for hammer drilling in concrete and masonry, drilling in steel, wood, and masonry, and driving/removing screws. p. 11
Key actions
- Fitting the side handle p. 13
- Fitting the accessory tool p. 13
First start
- Insert the battery until it clicks, then check that it is seated securely. p. 13
Problems and fixes
Rotary hammer doesn't start
Switch off the rotary hammer, remove the battery and do not continue to use the rotary hammer.
p. 15Maintenance and reset
- Clean the dust shield on the chuck with a dry, clean cloth at regular intervals. p. 14
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated voltage | 21.6 V | Operating voltage | p. 12 |
Where to find it in the PDF
- Product Overview p. 2, 11
- Safety Instructions p. 7, 8, 9, 10
- Operation p. 13
- Care and Maintenance p. 14
- Troubleshooting p. 15
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Hilti TE 2-A22 is a battery-powered rotary hammer designed for professional use. It is intended for hammer drilling in concrete and masonry, drilling in steel, wood, and masonry, and for driving and removing screws. Always read the full safety instructions before use.
Product Overview
The tool features a TE-C Click chuck, a function selector switch, a forward/reverse selector switch with safety lock, and a battery charge status display. The side handle and depth gauge are adjustable for precise drilling.
Operation
- Fitting the side handle: Release the clamping band by turning the grip, slide it over the chuck, position it, and tighten the grip.
- Inserting the battery: Push the battery into the interface until it clicks securely.
- Fitting the accessory tool: Apply a small amount of Hilti grease to the tool end, push it into the chuck until it engages, and pull to check it is secure.
- Drilling modes: Use the function selector switch to choose between 'Drilling without hammering' and 'Hammer drilling'.
Care and Maintenance
Always remove the battery before performing maintenance. Clean the air vents with a dry brush and wipe the casing with a slightly damp cloth. Do not use silicone-based cleaning agents. Regularly clean the dust shield on the chuck and apply a light layer of Hilti grease to the sealing lip.
Troubleshooting
If the tool does not start, check if the battery is fully inserted, charged, or if the tool is overloaded. If there is no hammering action, ensure the tool is not too cold; run it in idle to warm up the mechanism. If the tool gets very hot, stop immediately, remove the battery, and contact Hilti Service.
Manufacturer information
Hilti Corporation
Practical help
Common problems
Rotary hammer doesn't start
Check if the battery is fully inserted, charged, or if the tool is overloaded.
No hammering action
Ensure the tool is not too cold; run it in idle. Check if the function selector is set to 'Hammer drilling'.
Battery doesn't engage with a double click
Clean the retaining lugs on the battery.
Insert tool can't be released
Ensure the chuck is pulled back fully.
Before use
- Ensure the battery is fully charged.
- Check that the tool is switched off before inserting the battery.
- Ensure the side handle and depth gauge are securely fitted.
- Check the tool for any visible damage.
Specs in practice
- Rated voltage
- 21.6 V
- Drilling diameter (concrete)
- 4 mm – 16 mm
- Drilling diameter (metal)
- 0 mm – 10 mm
Images and diagrams

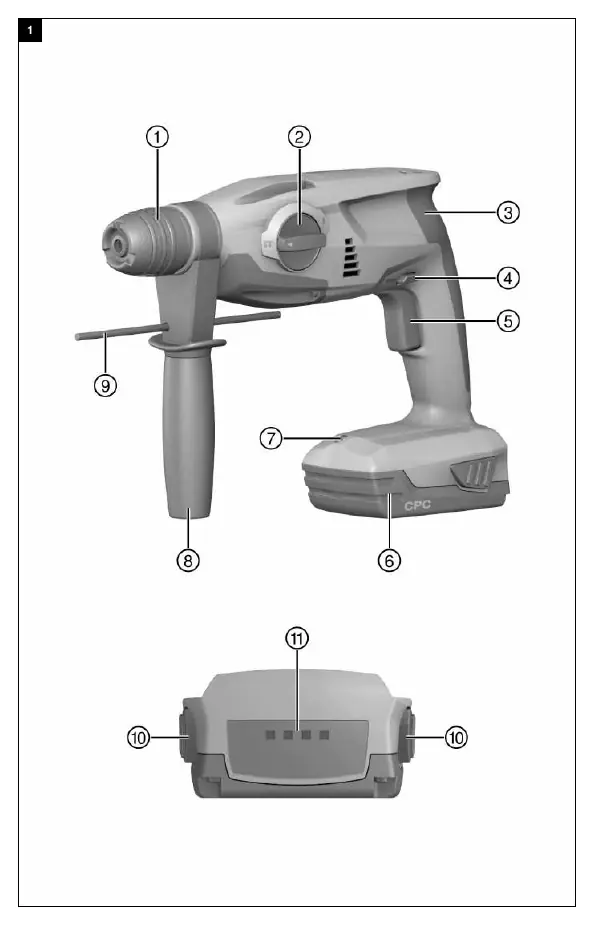

- Page 2: Product overview showing chuck, function selector, control switch, and battery.

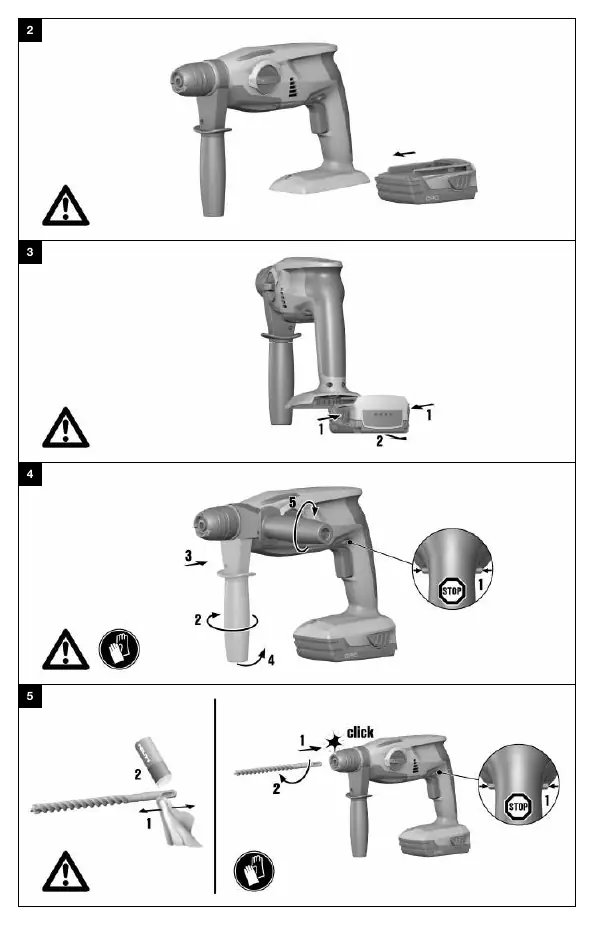

- Page 3: Illustrations for battery insertion, side handle fitting, and accessory tool fitting.
Model compatibility
- Use only Hilti B 22 series Li-ion batteries.
- Use only Hilti-approved battery chargers.
Manual page author
Michael Turner
Technical manual editor
Reviews PDF manuals for structure, safety notes, and practical product details so readers can find the right information quickly.
