Operating Instructions for Hilti DD 110-U-22 and DD 150-U-22 Diamond Core Drilling Machines
Quick guide for the Hilti DD 110-U-22 and DD 150-U-22 diamond core drilling machines. Includes setup, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for operating the Hilti DD 110-U-22 and DD 150-U-22 diamond core drilling machines. Always read the full safety instructions before use.
- Battery: Use only Hilti Nuron B 22 series batteries.
- Safety: Always wear eye, ear, and respiratory protection.
- Operation: Ensure the drill stand is securely anchored or vacuum-fixed before starting.
Product Overview
The machine features a main grip, interface plate for the drill stand, water swivel/suction head, and a multifunction display for real-time data.
Preparations
Ensure the side handle is adjusted and tightened. Secure the drill stand using anchors or a vacuum base plate. If using a vacuum, ensure the pressure gauge remains in the green zone.
Operation
Switch the machine on using the motor on/off switch or the operating button. The multifunction display provides real-time feedback on drilling performance and battery status.
Drilling
The machine supports both wet and dry drilling. For wet drilling, connect the water supply and ensure the water flow regulator is set correctly. For dry drilling, use a dust extraction system if required.
Core Removal
The product includes a core removal function to free a core stuck in the core bit. Activate this via the multifunction display when the machine is ready and the core bit is stationary.
Maintenance
Remove the battery before any maintenance. Clean the chuck and clamping segments regularly. Keep air vents clear.
Troubleshooting
If the display is blank, check the battery. If the core bit is jammed, use an open-end wrench to release it.
Manufacturer information
Hilti Corporation
Practical help
Common problems
Display not showing anything
Check battery charge or ensure it is fully inserted.
Core bit does not rotate
Release jammed bit with an open-end wrench or move carriage up/down.
Drilling speed decreasing
Check for maximum depth, stuck core, or polished bit.
Before use
- Charge battery fully
- Check battery contacts
- Ensure side handle is tight
- Check drill stand stability
- Verify water supply (if wet drilling)
Specs in practice
- 1650 W S6 40%
- Load cycle power rating (4 minutes).
Images and diagrams

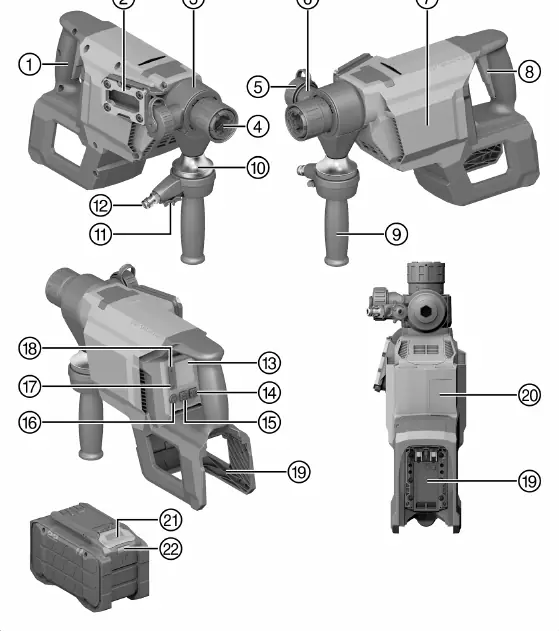

- Overview of machine components

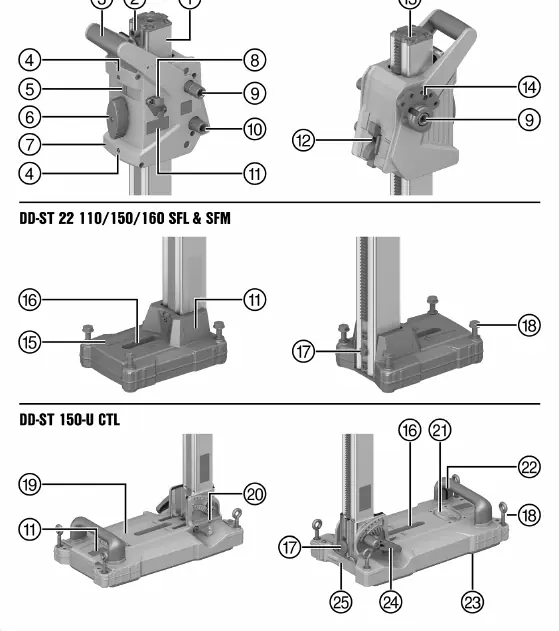

- Drill stand overview
- Core bit installation
- Vacuum system connection
Model compatibility
- Use only Hilti Nuron B 22 series batteries
- Use only approved Hilti chargers
