Operating instructions for Hilti NCT PS 085-A22 hydraulic cable cutter
Quick guide for the Hilti NCT PS 085-A22 hydraulic cable cutter. Includes setup, operation, safety, maintenance, and troubleshooting steps.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Hilti NCT PS 085-A22 is a cordless electro-hydraulic cutting tool designed for cutting copper (Cu) or aluminum (Al) cables. Before using the tool, ensure you have read the safety instructions. Always use Hilti B 22 series batteries and approved chargers. Keep hands and fingers clear of the cutting head during operation. Do not use the tool to cut steel or in heavy rain/underwater.
Product description
The tool features a cutting head, control switch, and battery interface. The cutting head can be rotated 350 degrees for access in tight spaces. The battery status is indicated by LEDs on the battery pack.
Operation
Preparation: Ensure the tool is switched off before inserting the battery. Charge the battery fully before first use. Push the battery into the tool until it engages with an audible click.
Cutting procedure:
- Rotate the cutting head to the desired working position.
- Place the cable to be cut fully into the cutting head.
- Press the control switch.
- Keep the switch pressed until the tool releases pressure (indicated by an audible pop).
- The tool returns automatically to its initial position after the cut.
In cold weather, perform 5 to 10 empty pressing operations to warm up the hydraulic oil.
Care and maintenance
Always remove the battery before performing maintenance. Clean air vents with a dry, soft brush. Use a slightly damp cloth to clean the housing; do not use silicone-based cleaning agents. Keep battery contacts clean and free of oil or grease. If the tool shows signs of damage or malfunction, do not use it and contact Hilti Service.
Troubleshooting
If the tool is not working, check the battery charge status and ensure it is properly inserted. If the red LED lights up continuously with a warning tone, a technical problem may exist; contact Hilti Service. If the tool overheats, allow it to cool down.
Technical data
The tool operates at 21.6 V. The maximum cable cutting capacity is 85 mm. The weight including the B22/8.0 battery is 7.3 kg. Operating temperature range is -17 °C to 60 °C.
Manufacturer information
Hilti Corporation
Practical help
Common problems
LEDs on battery indicate nothing
Push the battery in until it engages with a double click, or charge the battery.
Red LED lights continuously with warning tone
Technical problem. Contact Hilti Service.
Product overheated
Allow the product to cool down.
Battery runs down faster than usual
Very low ambient temperature; allow the battery to warm up slowly.
Before use
- Ensure battery is fully charged
- Check that contacts are clean and dry
- Verify the tool is in perfect working order
- Ensure the cable to be cut is fully inserted into the cutting head
Specs in practice
- Battery operating voltage
- 21.6 V
- Max cable section
- 85 mm
- Weight (with B22/8.0 battery)
- 7.3 kg

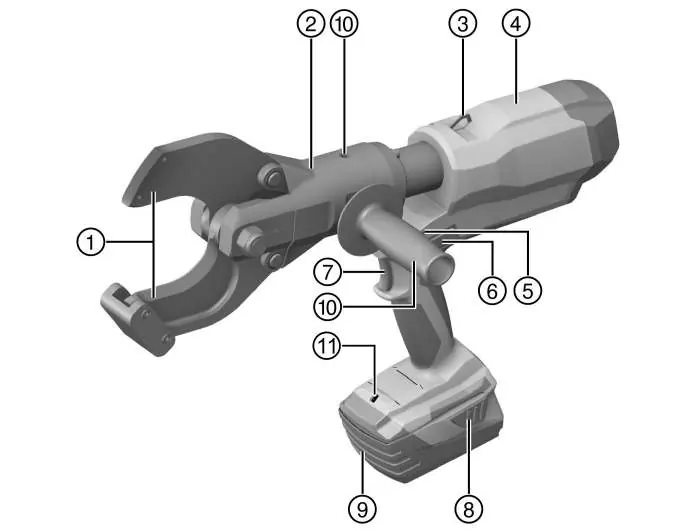

Images and diagrams
- 1: Cutting edge
- 2: Cutting head
- 7: Control switch
Model compatibility
- Use only Hilti B 22 series batteries
- Do not use for cutting steel
