HINKLEY 19677BK Maddox Medium Orb Pendant Installation Guide

Quick guide from the manual

This document provides essential instructions for the safe installation and wiring of the HINKLEY 19677BK Maddox Medium Orb Pendant. Before starting, ensure the power supply is turned off at the circuit breaker. The installation requires basic tools and knowledge of electrical wiring. If you are unsure about any step, consult a qualified electrician.

Mounting the fixture

1. Find a clear area to work. Unpack the fixture and glass from the carton.
2. Determine the desired height of the pendant and select the appropriate combination of stems.
3. Thread the wires through the stems and assemble them.
4. Attach the mounting strap (A) to the junction box (J) using two screws (not provided). Ensure the back of the mounting strap is flush against the ceiling.
5. Slip the canopy (C) over the ceiling and secure it to the threaded section (L) using the screw (S).

Fixture assembly

1. After the stems (M) are assembled, slip the cover (N) over the stems.
2. Use the set screw to lock the cover into place.
3. Secure the shade (V) to the top cover (N).
4. Install an appropriate medium base bulb.
5. Hold the glass (1) up and secure it using the three knobs (3).
6. Use the provided Allen key to tighten the set screw (S) to lock the cover securely.

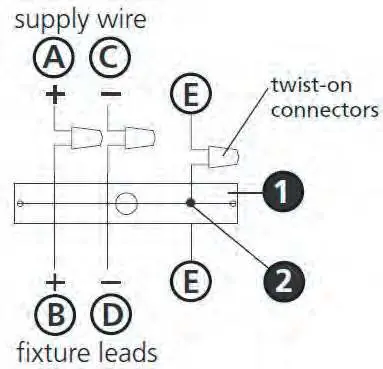

Wiring and grounding

Safety Warning: Always turn off the power supply before beginning any electrical work.

• Positive wire: Connect the positive supply wire (A) (typically black or smooth) to the positive fixture lead (B) using a twist-on connector.
• Negative wire: Connect the negative supply wire (C) (typically white or ribbed) to the negative fixture lead (D) using a twist-on connector.
• Grounding: Connect the fixture ground wire (E) (copper or green) to the mounting strap (M) using the ground screw (S). For chain-hung fixtures, connect the fixture ground wire directly to the building's ground wire.

For outdoor fixtures, cover the open ends of connectors with silicone sealant to create a watertight seal. If installing on a wall, use caulk to seal gaps between the mounting plate and the wall to prevent water ingress.
