HINKLEY 10544MR Foundry Dome LED Outdoor Barn Light

Product Overview

The Hinkley Foundry Dome LED light is a high-quality outdoor fixture designed for durability and style. This manual provides comprehensive instructions for the assembly, mounting, and electrical connection of the fixture. Please read all instructions carefully before beginning the installation process to ensure safety and proper functionality.

Assembly Instructions

The assembly process begins by feeding the fixture wires through the arm. A beaded chain is provided to assist in pulling the wires through the arm tube. Once the wires are through, the socket fitter is threaded onto the end of the arm. The decorative collar, Hinkley logo plate, and canopy are then slid onto the arm in preparation for wall mounting. The mounting bracket is attached to the junction box, and the arm assembly is secured to the bracket using hex head screws.

Mounting and Wiring

Proper mounting is essential for outdoor fixtures. The mounting bracket features U-shaped notches for additional support if required. Electrical connections must be made according to local codes. For outdoor installations, it is critical to use silicone sealant on wire connectors to create a watertight seal. Additionally, caulk should be applied to seal gaps between the mounting plate and the wall to prevent water from entering the outlet box.

Shade Installation

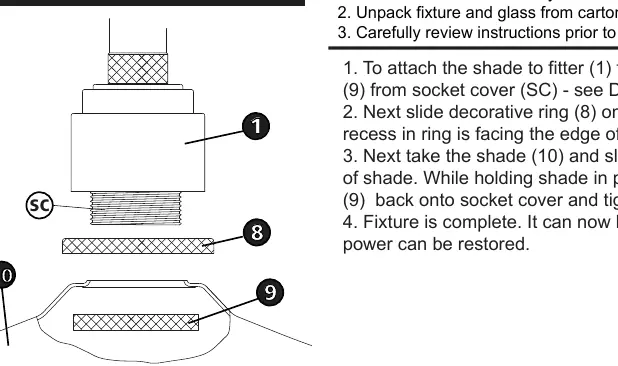

To attach the shade, first remove the knurled shade ring from the socket cover. Slide the decorative ring onto the edge of the fitter, ensuring the recess faces the fitter edge. Place the shade over the socket, then secure it by threading the shade ring back onto the socket cover and tightening it firmly.

Safety and Maintenance

Always turn off the power supply before starting any installation or maintenance work. If you are unsure about the electrical wiring, consult a qualified electrician. Regularly inspect the fixture for any signs of wear or water ingress, especially in outdoor environments. Ensure all screws remain tight and that the silicone seals are intact to maintain the fixture's weather resistance.
