User Manual for Hoftronic Malaga LED Porch Lights

Comprehensive user guide for Hoftronic Malaga LED Porch Lights. Includes installation instructions, wiring diagrams, remote control pairing procedures, and maintenance tips for your dimmable LED downlights.

Quick answers from the manual

Quick answer

  • The Hoftronic Malaga LED Porch Lights are dimmable downlights. The kit includes the lights, 5m cables, a dimmable LED driver, connectors, and a remote control. They are expandable up to 36 spots using a 4-channel remote. p. 2

Key actions

  • Drill 28mm holes, connect spots to the 6-port connector, and connect the transformer to 230V (N=blue, L=brown). p. 2

First start

  • Test the kit before permanent installation. p. 2

Problems and fixes

Light does not turn on

Try plugging the spotlight into a different port on the connector.

p. 2

Maintenance and reset

  • Clean only with soft and dry cloths; do not use chemical detergents. p. 2, 8

Where to find it in the PDF

  • Installation Manual p. 2, 6
  • Remote Control Functions p. 3, 7
Table of contents

Manual images

Click an image to enlarge
Hoftronic Malaga LED Porch Light Page 1 Wiring diagram for transformer input Page 2 Standard remote control layout Page 3

Quick guide from the manual

The Hoftronic Malaga LED Porch Lights are dimmable, IP65-rated downlights designed for indoor and outdoor use. The kit is delivered ready for use with the selected number of downlights, five meters of cable per spot, a dimmable LED driver, connectors, and a remote control. Before permanent installation, it is essential to test the kit to ensure all components are functioning correctly.

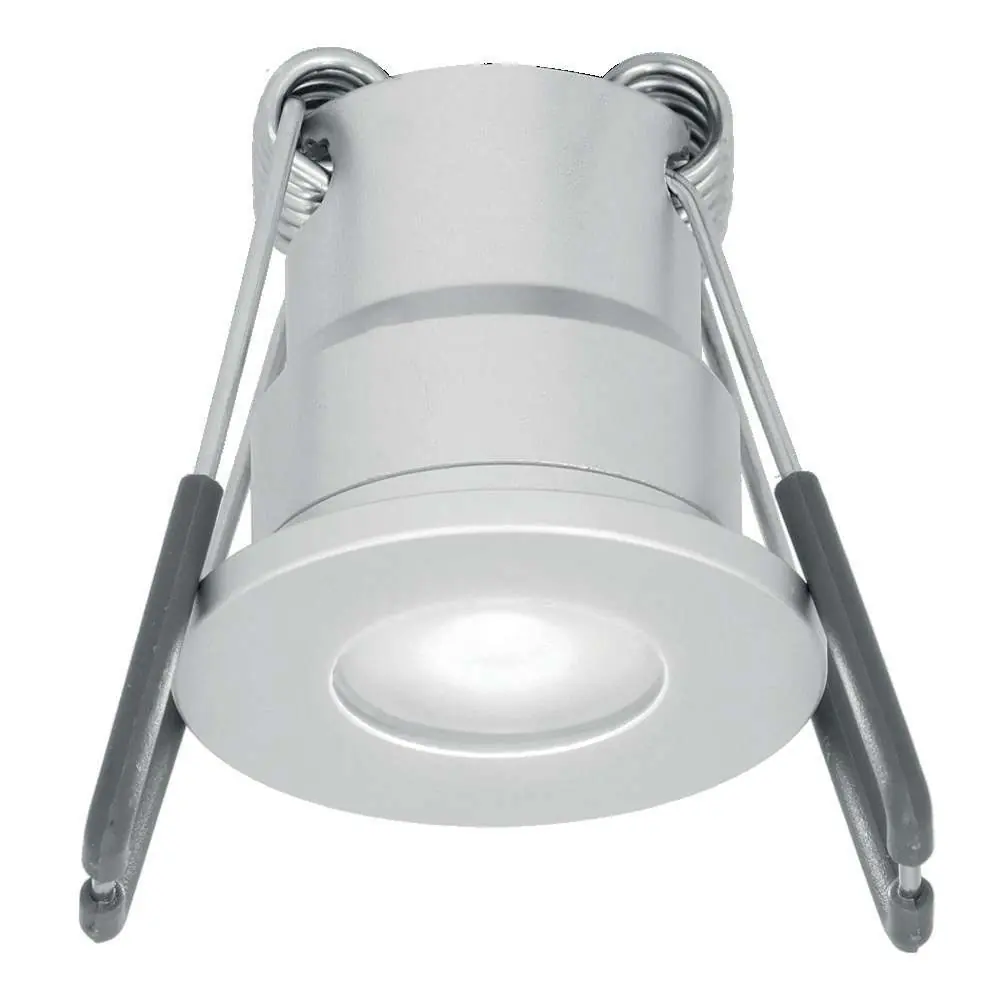

Hoftronic Malaga LED Porch Light
Hoftronic Malaga LED Porch Light

Installation

Follow these steps to install the downlights:

Wiring diagram for transformer input
Wiring diagram for transformer input
  • Preparation: Drill holes with a diameter of 28 mm at the desired locations. Position the cables accordingly.
  • Mounting: Place the LED recessed spots into the drill hole. Ensure the two springs touch the material, then push both springs in succession against the downlight to secure it in place.
  • Wiring: Switch off the power group. Connect the transformer to 230V (INPUT). Connect the blue cable to N and the brown cable to L. Ensure the transformer input is connected to an on/off switch (fixed mains current).
  • Outdoor Use: If the transformer is installed outdoors, it must be placed in a water/moisture-resistant housing (Art. No. 396302).

Remote Control & Pairing

The standard remote control is paired at the factory. If you need to pair it or the wall dimmer, follow these procedures:

Standard remote control layout
Standard remote control layout

Standard Remote Control

  • Disconnect the power from the driver.
  • Press and hold the SET button.
  • Connect power to the driver.
  • Release the SET button when the lights flicker.
  • Press the Mode button 4 times repeatedly.

Wall Dimmer

  • Disconnect the power from the driver.
  • Press and hold the ON/OFF button.
  • Connect power to the driver.
  • Release the ON/OFF button.
  • Press the Night light button 3 times.

Maintenance

To ensure the longevity of your product, follow these guidelines:

  • Perform maintenance only when the power supply is cut off and the product has cooled down.
  • Clean only with soft and dry cloths; do not use chemical detergents.
  • Do not cover the product and ensure free air access.
  • The product is not suitable for independent repairs.

Manufacturer information

Hoftronic

Brand profile
Manufacturer website https://hoftronic.com Support https://hoftronic.com/contact

Practical help

Common problems

The light does not turn on.

Try plugging the spotlight into a different port on the connector and check if it works. If it still does not work, contact your distributor.

Need to expand the set beyond 12 spots.

Order multiple sets and a 4-channel remote control, which allows you to control up to 36 spots.

Before use

  • Check if all parts are in the box.
  • Test the kit before permanent installation.
  • Ensure the power supply is disconnected before starting any work.
  • Verify the drill hole size is 28 mm.
  • Ensure the transformer is in a water-resistant housing if installed outdoors.

Images and diagrams

  • Wiring: Connect the blue cable to N and the brown cable to L on the transformer input.
  • Installation: Push the two springs against the downlight to insert it into the 28mm hole.

Model compatibility

  • Can be used both indoors and outdoors.
  • The set is expandable up to 36 spots using a 4-channel remote.
