Husqvarna 110iL Battery Trimmer User Manual
Quick guide and user manual for the Husqvarna 110iL battery lawn trimmer. Includes assembly, operation, maintenance, and troubleshooting instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Husqvarna 110iL is a battery-powered lawn trimmer. Before use, ensure the battery is charged and the trimmer head is correctly attached. Always wear eye protection and keep bystanders at least 15 meters away.
Product Description
The Husqvarna 110iL is a battery lawn trimmer/lawn edge trimmer with an electrical motor.
Assembly
- Attach the trimmer guard to the motor housing.
- Assemble the trimmer head by locking the shaft and turning clockwise.
- Attach the loop handle to the shaft.
- Assemble the two-piece shaft by aligning the triangle symbols.
- Install the plant guard.
Operation
To start the product, push and hold the start/stop button until the green LED comes on. Push the power trigger lockout and the power trigger to start the cutting equipment.
Maintenance
- Remove remaining grass with a soft brush after each use. Do not use water.
- Check that the Auto off function turns off the product after 180s.
- Make sure air ventilation holes are not blocked.
Troubleshooting
If the LED flashes continuously, the battery voltage is low; charge the battery. If the product does not start, push the power trigger and press the start button at the same time.
Manufacturer information
Husqvarna
Practical help
Common problems
LED flashes continuously
Low battery voltage. Charge the battery.
Product does not start
Push the power trigger and press the start button at the same time.
LED flashes 3 times
Overcurrent. Release the power trigger and start the product again.
LED flashes 5 times
Temperature deviation. Let the product cool down.
Before use
- Check for wear or damage
- Inspect working area for loose objects
- Check motor for dirt/cracks
- Check trimmer head attachment
- Check all nuts and screws are tight
Specs in practice
- Cutting width
- 300 mm
- Weight (without battery)
- 3.2 kg
- Sound power level (guaranteed)
- 92 dB(A)
Images and diagrams

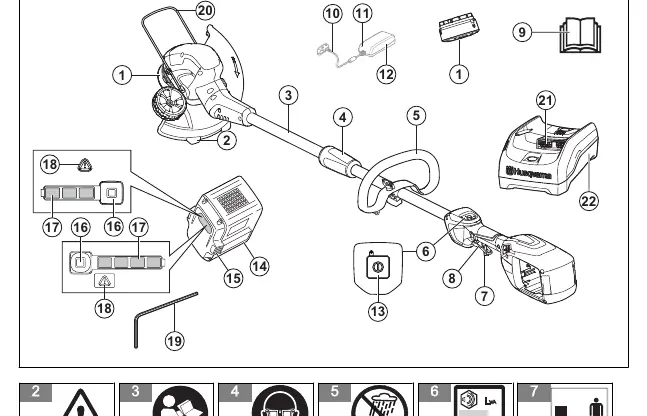

- Fig 1: Product overview
- Fig 22: Keypad check

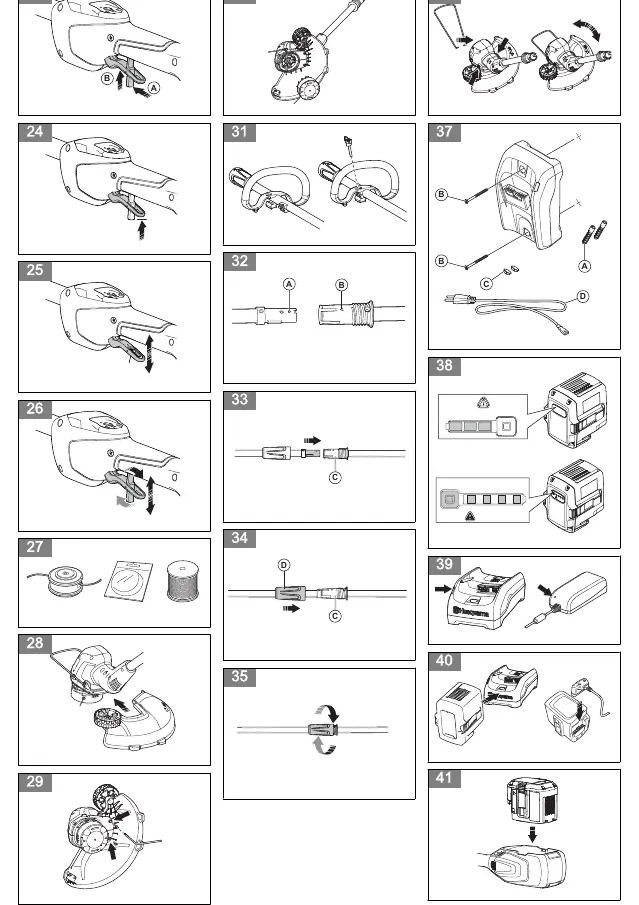

- Fig 28-36: Assembly steps

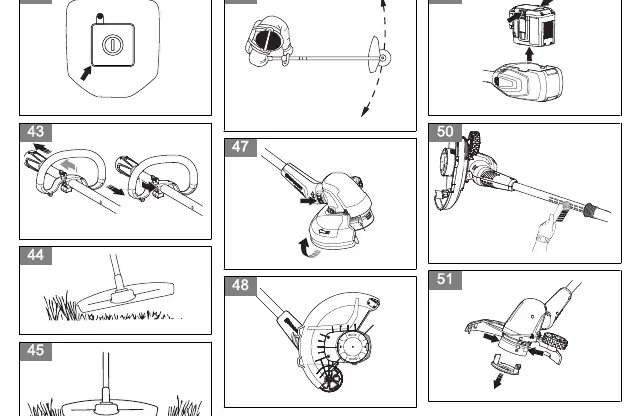

- Fig 44-46: Operation modes
- Fig 50: Cleaning air vents
Model compatibility
- Use only BLi series and 40-B series batteries.
- Use only QC80 and 40-C80 battery chargers.
