Owner's Manual for Husqvarna TE 150i

Quick guide from the manual

This manual provides essential information for the 2022 Husqvarna TE 150i. It covers safety, operation, maintenance, and tuning. Always ensure the motorcycle is in perfect technical condition before riding. For off-road use, it is recommended to be accompanied by another person. The manual is valid for TE 150i EU (F2103V9) and TE 150i US (F2175V9) models.

Safety Advice

The vehicle is designed for off-road endurance competition. Tampering with the noise control system is prohibited. Always wear appropriate protective clothing, including a helmet, boots, gloves, and a jacket with protectors. Do not operate the vehicle if you are not fit to ride due to alcohol, drugs, or medication.

Controls

The motorcycle features various controls, including a clutch lever, hand brake lever, throttle grip, and stop button. The TE 150i EU and US models have specific differences in switch configurations, such as light and turn signal switches. The map switch allows for changing engine characteristics between Performance (I) and Soft (II) modes.

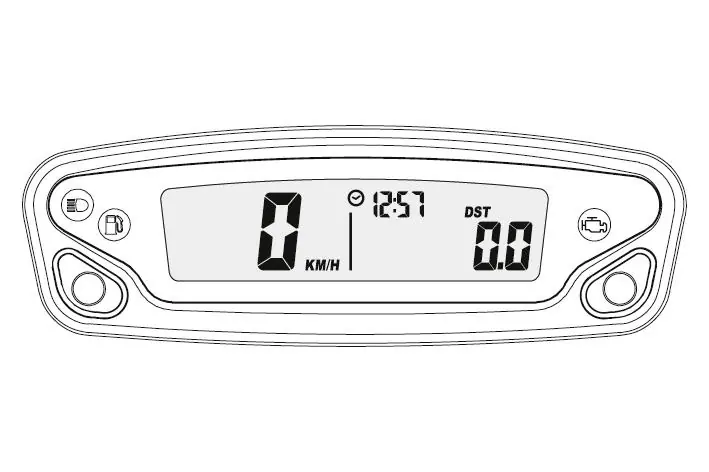

Combination Instrument

The combination instrument displays speed, time, and distance. It can be adjusted to show kilometers or miles, and allows for setting the clock and service intervals. It is activated by pressing a button or via the wheel speed sensor.

Preparing for Use

Before the first ride, ensure the pre-sale inspection has been carried out. During the running-in phase (first 5 operating hours), do not exceed specified engine performance limits. The vehicle requires specific preparation for difficult conditions like sand, mud, or low temperatures.

Service Schedule

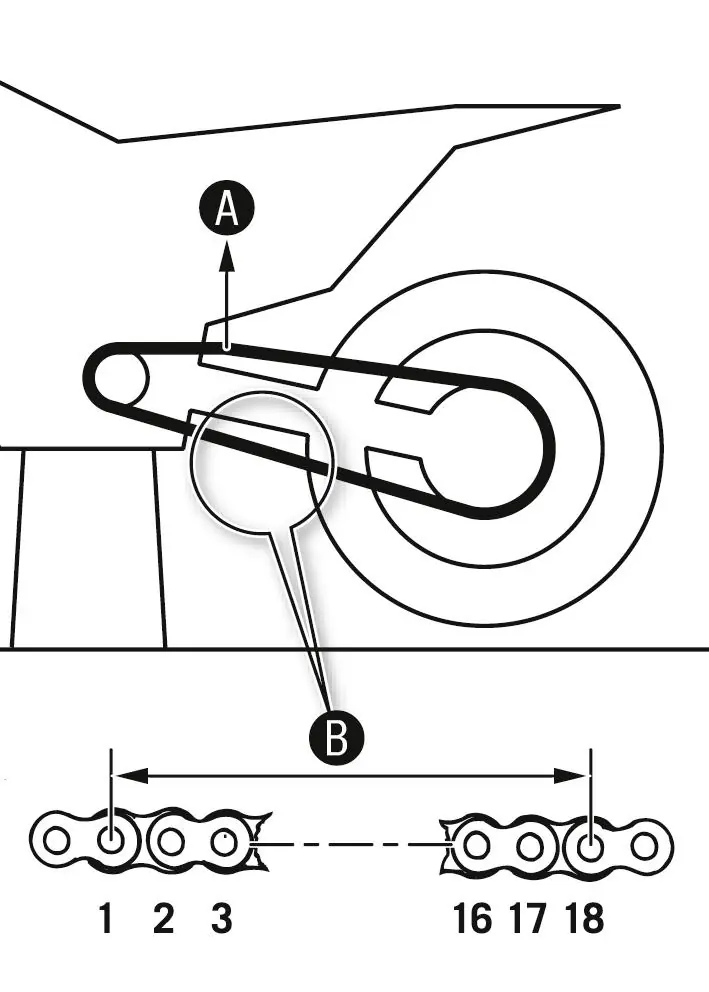

Adhere strictly to the service intervals. Required work includes checking the electrical system, battery, brake fluid levels, brake linings, chain, and tire condition. Recommended work includes changing fluids and servicing the fork and shock absorber.

Tuning the Chassis

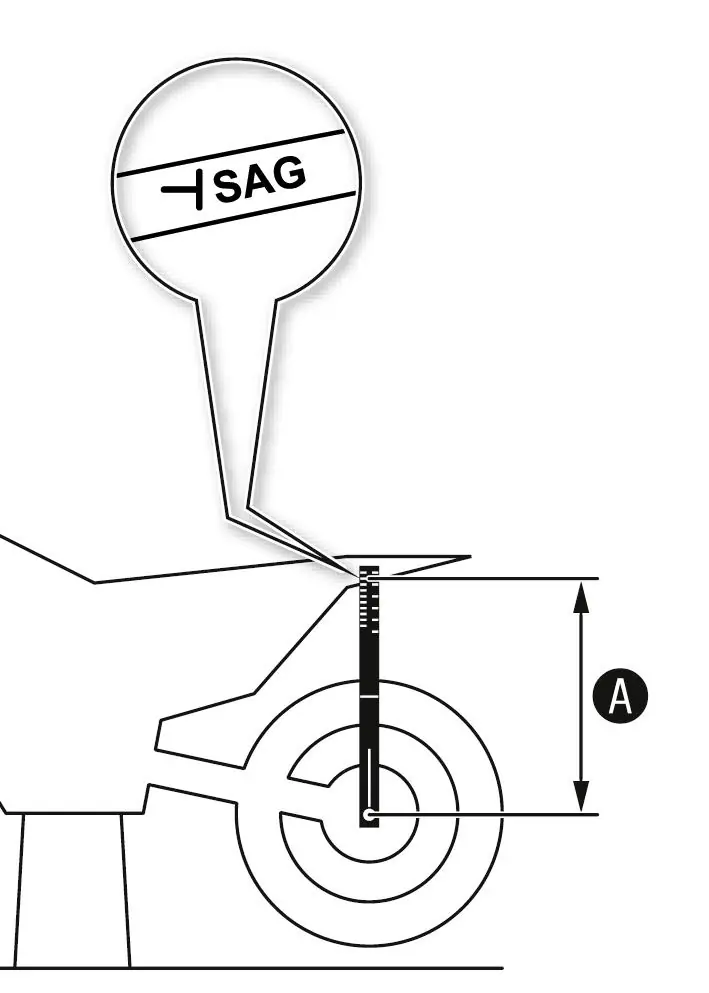

The chassis can be tuned to the rider's weight. Adjustments include compression and rebound damping for both the shock absorber and the fork, as well as spring preload. The handlebar position can also be adjusted for rider comfort.

Service Work on the Chassis

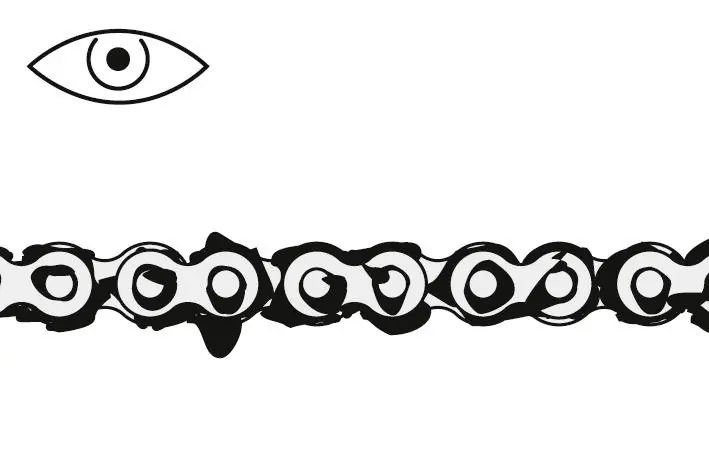

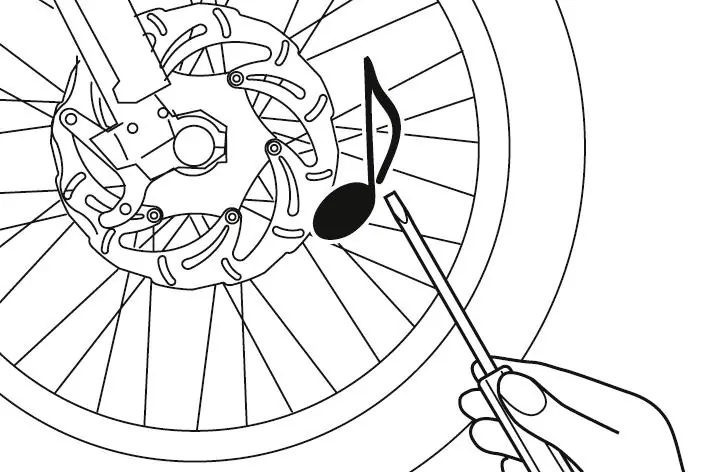

This section covers maintenance procedures such as raising the motorcycle with a lift stand, bleeding the fork legs, cleaning dust boots, removing/installing wheels, servicing the air filter, and maintaining the chain and brake systems. Always use approved spare parts and lubricants.

Tuning the Engine

Engine tuning includes checking and adjusting throttle cable play, setting the idle speed, and programming ambient air pressure. The characteristic map of the throttle response can be changed using different guide plates.

Service Work on the Engine

Procedures include changing the fuel screen, priming the oil pump, cleaning the oil screen in the oil tank, and changing the gear oil. Ensure the engine is at operating temperature when draining gear oil.

Troubleshooting

The manual provides a comprehensive troubleshooting table for issues such as the engine not cranking, engine not starting, engine having no idle speed, engine not speeding up, engine having too little power, engine dying during a trip, and engine overheating.
