TRIXIG Screwdriver/Drill User Manual
Quick guide for the TRIXIG screwdriver/drill. Includes charging instructions, operation, safety warnings, maintenance, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the TRIXIG screwdriver/drill. It covers safety, operation, charging, and maintenance. Always read the full safety instructions before use.

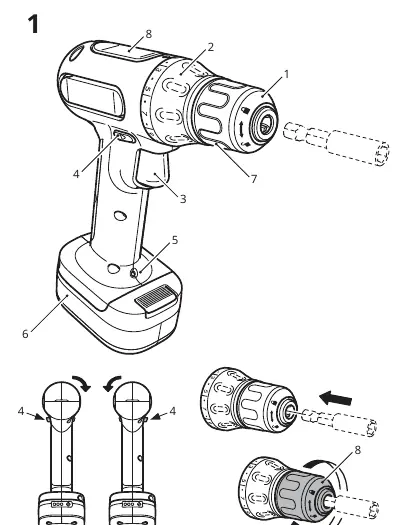

Product features
- 1. Keyless chuck: For easy bit changes.
- 2. Torque regulator: 19 settings plus drilling mode.
- 3. Variable speed control/trigger: Regulates speed based on pressure.
- 4. Rotational direction switch: Controls forward/reverse rotation.
- 5. LED work light: Illuminates the work area.
- 6. Battery pack: Rechargeable Li-ion battery.
- 7. Front sleeve: Used to open/close the chuck.
- 8. Magnetic bit holder: Keeps bits handy.
Charging the screwdriver/drill
The battery is supplied partially charged and must be fully charged before first use. Connect a USB-C cable to the port on the battery pack and a suitable USB charger (not included). The diodes on the back indicate charging status:
- Pulsating light: Charging in progress.
- Steady light (2 mins) / No light: Charging completed.
Note: Charging generates heat. Do not charge in temperatures below freezing. Do not charge for more than 8 hours.
Operation
Before any work, maintenance, or transport, set the rotational direction switch to the center position to lock the trigger. To mount a bit, rotate the front sleeve to open the chuck, insert the bit, and tighten the sleeve. Adjust the torque regulator to the desired setting (1-19 for screws, drill symbol for drilling).
Maintenance and cleaning
Keep the tool clean and dry. Wipe with a soft, damp cloth. Do not use cleaning agents or solvents. Keep ventilation slots clean for safe operation.
Safety
This tool is for domestic use only. Do not use near flammable liquids, gases, or dust. Wear appropriate PPE, including eye and ear protection. If the tool becomes blocked or stuck, switch it off immediately to avoid kickback.
Manufacturer information
IKEA
Practical help
Common problems
Tool stops rotating
The battery is empty. The ECP (Electronic Cell Protection) has activated to prevent deep discharge. Recharge the battery.
Sparks visible in motor housing
This is a normal reaction of the motor during use caused by internal components moving against each other.
High reaction torque/kickback
Hold the tool firmly with both hands. Be prepared for sudden torque when driving or loosening screws.
Before use
- Fully charge the battery before first use.
- Ensure the rotational direction switch is in the center position during transport or storage.
- Check that the charger, cable, and plug are undamaged.
- Ensure the work area is clean and well-lit.
- Wear appropriate personal protective equipment (eye/ear protection).
Specs in practice
- Nominal voltage
- 10.8V d.c.
- Chuck capacity
- 0.8 - 10 mm (1/32"-3/8")
- Max. hard torque
- Approx. 16 Nm
Images and diagrams
- The tool features a keyless chuck, torque regulator, variable speed trigger, rotational direction switch, LED work light, battery pack, front sleeve, and magnetic bit holder.
Model compatibility
- Use only with TRIXIG battery pack.
- USB-C cable and USB charger are not included.
