Installation Manual for Immax PATTINI Pendant Luminaire
Quick installation guide for Immax PATTINI pendant luminaires. Includes safety instructions, cable length adjustment, wiring diagrams, and technical specifications for models 07221L through 07228L.
Table of contents
Quick guide from the manual
This document provides installation instructions for the Immax PATTINI series of pendant luminaires. Before beginning, ensure the power supply is switched off. The luminaire features an adjustable suspension cable system. Technical parameters, including protocol (Tuya WiFi or Zigbee 3.0) and power requirements, vary by specific model; please check the label on your product packaging or the Immax website for exact specifications.
Safety and installation
The luminaire is designed for indoor use (IP20). Ensure the mounting surface is suitable for the weight of the fixture. Follow these general installation steps:
- Switch off the main power supply before starting any electrical work.
- Drill necessary holes for the mounting bracket.
- Connect the luminaire wires to the mains power supply according to the provided wiring diagram.
- Secure the luminaire to the ceiling bracket.
Cable adjustment
The luminaire includes a locking mechanism to adjust the height of the suspension cable. To adjust the length, press the lock mechanism to release the cable, set the desired height, and release the lock to secure it in place. Ensure the cable is not damaged during this process.
Technical specifications
Specifications depend on the specific model (07221L, 07222L, 07225L, 07226L, 07227L, 07228L). Key parameters include:
- Protocol: Tuya WiFi or Zigbee 3.0
- Light Color: 3000-6000K (adjustable)
- Power Supply: AC 220V or AC 100-240V (50-60Hz)
- Illumination Time: 50,000 hours
- CRI(Ra): >80
Disposal
The product must not be disposed of with municipal waste. Please take the product to designated collection points for proper recycling in accordance with WEEE regulations.
Support
If you have questions or need advice, please contact the manufacturer at [email protected] or visit www.immax.cz / www.immax.eu.
Official resources from the manual
Manufacturer information
Immax
Practical help
Common problems
Cable length is incorrect
Use the lock mechanism on the suspension cable to adjust the height. Press the lock to release the cable, adjust, and release to secure.
Device not connecting to smart home system
Verify if your specific model uses the Tuya WiFi or Zigbee 3.0 protocol and ensure your hub or router supports the corresponding standard.
Before use
- Ensure the main power supply is switched off.
- Verify the model number on the packaging to identify specific technical parameters.
- Check that the ceiling structure can support the weight of the luminaire.
- Confirm the required input voltage (AC 220V or AC 100-240V) matches your local power supply.
Images and diagrams
- The wiring diagram illustrates the connection of the luminaire to the mains power supply.

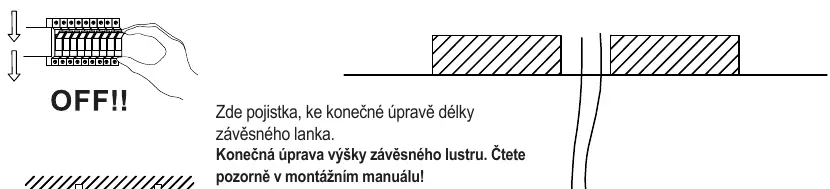

- The cable lock diagram shows the mechanism for adjusting the suspension height.
Model compatibility
- Models support either Tuya WiFi or Zigbee 3.0 protocols.
- Input voltage varies by model: AC 220V or AC 100-240V.
