User Manual for Insignia 115-Can Beverage Cooler

Quick guide from the manual

This beverage cooler is designed for free-standing use. Before first use, remove all packaging and let the unit stand upright for 30 minutes to allow the cooling system to stabilize. Ensure there is at least 1.6 inches (4 cm) of clearance on all sides for proper ventilation. Plug the unit into a dedicated, grounded outlet and allow it to run for 3 to 4 hours before adding beverages.

Important safety instructions

• Do not use the appliance near water.
• Do not block ventilation openings.
• Do not install near heat sources like radiators or stoves.
• Use a dedicated, grounded wall outlet; do not use extension cords or ungrounded adapters.
• Unplug the unit during lightning storms or when not in use for long periods.
• Never allow children to play inside the cooler; remove the door before disposing of an old unit.
• Do not store flammable liquids like gasoline inside the cooler.

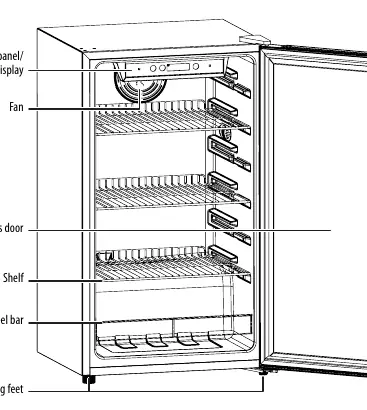

Components

The cooler features a glass door, adjustable shelves, a control panel/display, an interior fan, and leveling feet. The control panel allows you to power the unit on/off, toggle the interior light, and adjust the temperature.

Setting up your beverage cooler

The cooler is for free-standing use only and should not be recessed or built into a wall or countertop. Place it on a surface strong enough to support the unit when fully loaded. To level the cooler, turn the leveling feet clockwise to raise a side or counter-clockwise to lower it. If the unit is not level, the door may not seal properly, leading to cooling or moisture issues.

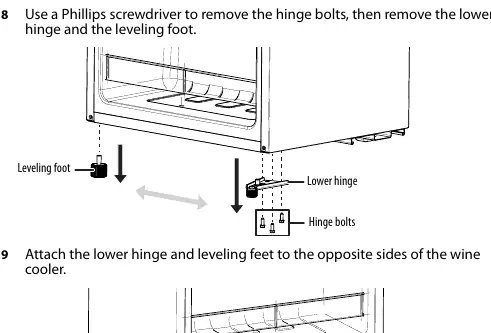

Reversing the door

You will need a 10 mm socket wrench and a Phillips screwdriver. Ensure the cooler is unplugged and empty. Remove the hinge cover, hinge bolts, and upper hinge to remove the door. Remove the door stopper. Move the lower hinge and leveling feet to the opposite side. Reinstall the door and upper hinge, ensuring the gasket seals tightly.

Using your beverage cooler

Press the power button to turn the cooler on. The display will blink for three seconds and beep before the compressor starts. To set the temperature, use the up and down arrow buttons. The range is 34–50°F (1–10°C). Press both arrow buttons simultaneously for three seconds to switch between Fahrenheit and Celsius. The cooler has a memory function that resumes the previous temperature setting after a power outage.

Maintaining your beverage cooler

Clean the interior periodically with a damp, warm cloth and a mild detergent or baking soda solution. Do not use abrasive cleaners or solvents like gasoline or thinner. The unit features an auto-defrosting cycle; ice on the inner back wall will melt automatically. When storing the cooler, turn it off, clean it, and leave the door slightly open to prevent mold and odors.

Troubleshooting

If the cooler does not operate, check the power connection and circuit breaker. If the door does not close, adjust the shelves, clean the gaskets, or level the unit. If the cooler is not cold enough, ensure the door is closed properly and allow time for new beverages to cool. Error codes E1 (temperature sensor fault) or E4 (defrost sensor fault) indicate a need to contact a service center.

Specifications

The cooler has a capacity of 115 cans. Dimensions are 33.1 x 18.9 x 17.3 inches (84.2 x 48.0 x 44.0 cm). It requires a 115V~60Hz power supply and operates in ambient temperatures between 54–109°F (12–43°C).
