User Manual for KIMO 6001 Cordless Leaf Blower
Quick guide for the KIMO 6001 2-in-1 cordless leaf blower and vacuum. Learn about assembly, battery operation, safety precautions, and maintenance.
Quick answers from the manual
Quick answer
- The KIMO 6001 is a 2-in-1 cordless leaf blower and vacuum. It uses a 20V lithium-ion battery and features built-in protection against overload, overheating, and overdischarge. p. 1, 6
Key actions
- Install battery p. 7
- Set up for Blower mode p. 9
- Set up for Vacuum mode p. 10
First start
- Charge the battery fully (1-1.5 hours), attach the appropriate tube for your task, and insert the battery until it clicks. p. 2, 7, 9, 10
Problems and fixes
Tool stops automatically
Check for overload (high current), overheat (let cool), or overdischarge (charge battery).
p. 6Maintenance and reset
- If the tool stops due to protection, turn the tool off, resolve the condition (e.g., let cool, charge battery), and turn it back on. p. 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 20 V | Operating voltage | p. 2 |
| Charge Time | 1-1.5 Hours | Time to fully charge battery | p. 2 |
| No Load Speed | 0-20000 rpm | Motor speed without load | p. 2 |
Where to find it in the PDF
- Specifications p. 2
- Safety Warnings p. 3, 4
- Battery Maintenance p. 6
- Installation and Operation p. 9, 10
Table of contents
Manual images
Click an image to enlargeQuick Guide

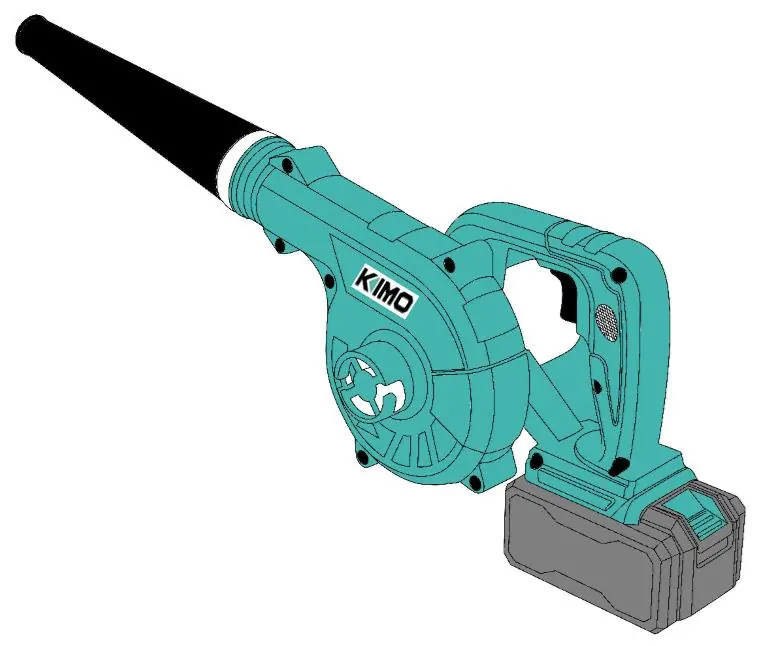

The KIMO 6001 is a 2-in-1 cordless tool designed for blowing leaves and vacuuming debris. It operates on a 20V lithium-ion battery system. Before use, ensure the battery is fully charged and the appropriate tube configuration is installed for your desired mode (blower or vacuum).
Safety Warnings
General Safety: Keep the work area clean and well-lit. Do not operate in explosive atmospheres. Keep children and bystanders away.
Electrical Safety: Do not modify plugs. Avoid body contact with earthed surfaces. Do not expose the tool to rain or wet conditions.
Battery Safety: Use only genuine KIMO batteries and chargers. Do not disassemble, short-circuit, or incinerate the battery. If the battery leaks, avoid contact and seek medical help if it touches your eyes.
Specifications
- Voltage: 20 V
- Charge Time: 1-1.5 Hours
- Battery Capacity: 2.0 A/h / 4.0 A/h
- No Load Speed: 0-20000 rpm
- Weight: 4.4 lbs (2.0kg) net
Battery Maintenance
The tool features a protection system that automatically cuts power in case of overload, overheat, or overdischarge. To maintain battery life:
- Charge before the battery is completely discharged.
- Do not recharge a fully charged battery.
- Charge at room temperature (10°C - 40°C).
- Charge if the tool has been stored for more than six months.

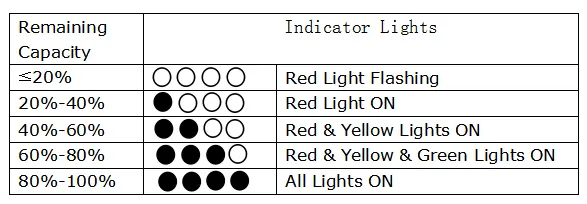

LED Indicators: The battery pack includes a fuel gauge. Four LEDs indicate the charge level (e.g., 80-100% = all lights on; ≤20% = red light flashing).
Installation and Operation
Battery Installation: Slide the battery pack into the tool until you hear an audible click. Ensure it is fully seated. To remove, depress the battery slide button and pull the pack out.
Blower Function: Line up the pegs on the inside of the blow tube with the notches on the side air outlet. Ensure the installation is firm. Press the trigger switch to operate.
Vacuum Function: Line up the pegs on the inside of the blow tube with the notches on the front air inlet. Connect the collection bag to the side air outlet. Ensure all connections are firm before operating.
Warranty
KIMO provides a 2-year warranty for the original purchaser against defects in material and workmanship. This warranty does not cover damage from misuse, unauthorized repairs, normal wear and tear, or lack of maintenance. This warranty applies to products sold in the U.S.A. only.
Manufacturer information
Zhejiang Kimo Power Tools Co., Ltd.
Practical help
Common problems
Tool stops automatically during operation
The tool may be overloaded, overheated, or the battery is low. Turn off, let cool if necessary, and check battery charge.
Battery not charging
Ensure you are using a genuine KIMO charger. Check for short circuits (Red/Green indicators off).
Before use
- Ensure the battery is fully charged.
- Check that the blow tube is securely attached to the correct port.
- Verify the lock-off button is engaged before installing the battery.
- Clear the work area of debris and bystanders.
Specs in practice
- No Load Speed
- 0-20000 rpm, indicating motor performance.
Images and diagrams
- Blower setup: Tube connects to the side air outlet.
- Vacuum setup: Tube connects to the front air inlet; collection bag connects to the side air outlet.
Model compatibility
- Use only genuine KIMO batteries and chargers to avoid fire risk and voiding the warranty.
