User Manual for Lauben Handheld Steam Iron 1950BC

Quick guide from the manual

The Lauben Handheld Steam Iron 1950BC is designed for home use. Before first use, remove all packaging. Fill the water tank up to the MAX mark (170 ml). Plug the device into a power outlet; the LED will turn red while heating (approx. 20 seconds) and blue when ready. Hold the steam trigger to release steam, or lock it for continuous steam. The device features an 8-minute auto-off function for safety.

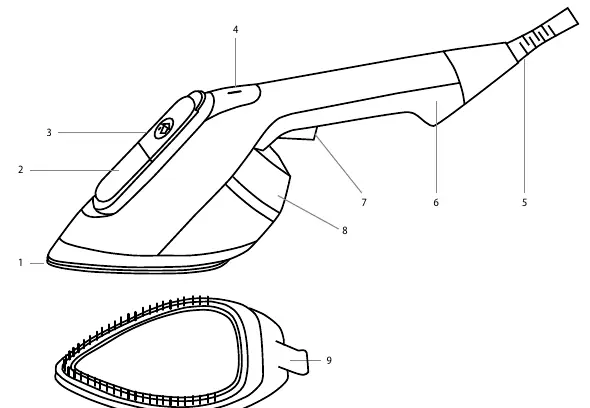

Product Overview

• 1. Sole plate
• 2. Front cover
• 3. Water tank cover
• 4. LED indicator
• 5. Power cord cover
• 6. Handle
• 7. Steam trigger
• 8. Water tank
• 9. Brush

Instructions for Use

To use the steamer, fill the tank to the MAX mark and plug it in. Once the LED turns blue, it is ready. For vertical steaming, do not tilt the device more than 90° to prevent water leakage. Use the brush attachment for sturdier materials like coats to help steam penetrate deeper. For delicate fabrics with appliqués or sequins, keep a distance from the surface.

Dry Ironing

The dry ironing function does not require steam. When used, the sole plate reaches temperatures up to 155 °C. Do not use this function on materials sensitive to high heat.

Auto-off Function

The appliance automatically switches off if not used for more than 8 minutes. The LED will flash red, and heating will stop. Pressing the trigger will restart the heating process.

Cleaning and Maintenance

Always unplug the device before cleaning. Allow the sole plate to cool for at least 30 minutes after use. Empty the water tank after each use. Clean the main unit with a dry or slightly damp cloth. Do not use abrasive cleaners or wire brushes on the sole plate. Never submerge the appliance in water.

Safety Instructions

• Keep out of reach of children.
• Do not use on damp surfaces or outdoors.
• Do not immerse the power cord, plug, or appliance in water.
• Do not use if the power cord or plug is damaged.
• Keep away from heat sources and direct sunlight.
• Do not touch hot surfaces; use handles and buttons.
• Always unplug when not in use.
• Do not use on surfaces that cannot tolerate temperatures above 100 °C.
