User Manual for Lightpro Castor 9 180S LED Spotlight
Comprehensive user guide for the Lightpro Castor 9 180S LED outdoor spotlight. Includes installation instructions for wall or ground mounting, reflector replacement, dimmer settings, and safety guidelines for the 12V system.
Quick answers from the manual
Quick answer
- The Lightpro Castor 9 is a 12V LED outdoor spotlight. It features a 6-level built-in dimmer and interchangeable reflectors (60° pre-installed, 30° included). p. 6, 8
Key actions
- Install on wall/surface p. 8
- Install in ground p. 8
- Change reflector p. 8
Maintenance and reset
- Clean regularly with a soft, clean cloth. Avoid abrasives. Clean stainless steel parts every 6 months. p. 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 9W | Maximum power consumption | p. 8 |
| Protection class | IP44 | Ingress protection rating | p. 8 |
| Luminous flux | 65 - 750 lm | Light output range | p. 8 |
Where to find it in the PDF
- Parts list p. 2
- Installation diagrams p. 3, 4

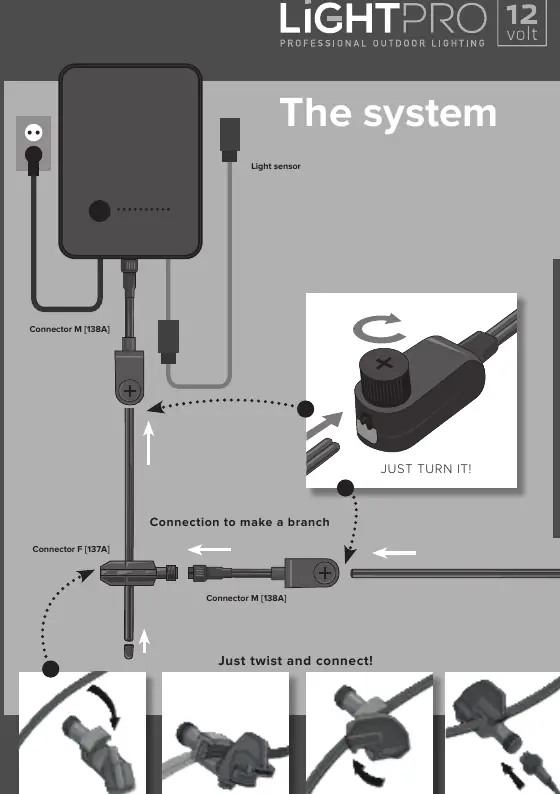

- System wiring p. 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Lightpro Castor 9 is a 12V LED outdoor spotlight designed for use exclusively with the Lightpro 12-volt lighting system. It features a built-in dimmer with 6 brightness levels and includes an interchangeable reflector to adjust the beam angle from 60° to 30°.
Packaging content
- Fixture Castor 9
- Ground spike
- Screw and plug
- Alternative reflector (30°)
- Large and small hex keys
- Lightpro connector
Installation
Option 1: Placement on a fixed surface or wall
- Remove the screw from the base using the included large hex key.
- Remove the fixture from the base.
- Mount the base onto the surface using the included screw (drill a hole and use the plug if necessary).
- Place the fixture back into the base, insert the screw, adjust to the desired position, and fasten with the large hex key.
Option 2: Placement in the ground
- Attach the spike underneath the base and fasten it securely.
- Adjust the fixture to the desired position.
- Fasten the screw using the large hex key.
- Insert the fixture into the ground.
Reflector replacement
The pre-installed reflector has a 60° beam angle. To change it to the included 30° reflector:
- Turn the head of the fixture to remove it.
- Unscrew and remove the existing reflector.
- Insert the alternative reflector and fasten it.
- Place the head back into the fixture, ensuring the screw hole is aligned.
- Secure the head with the screw using the small hex key.
Dimmer function
The fixture is equipped with a built-in dimmer. Push the button on the fixture to cycle through 6 different light output levels.
Safety and maintenance
- Installation: Ensure the product remains accessible for maintenance. Do not permanently embed or brick in the fixture.
- Cleaning: Clean regularly with a soft, clean cloth. Do not use abrasives, high-pressure washers, or aggressive chemical cleaning agents.
- Stainless steel: Clean parts with a stainless steel cleaning agent once every 6 months.
- Electrical: Only connect to a 12V safety extra-low voltage system.
- Environment: Suitable for temperatures between -20°C and 50°C. Do not use in areas with combustible gases, fumes, or liquids.
Practical help
Common problems
Light does not turn on
Check the connection to the 12V main cable and ensure the transformer is powered.
Beam angle is too wide
Replace the pre-installed 60° reflector with the included 30° alternative reflector.
Before use
- Verify all parts from the packaging list are present.
- Ensure the installation surface is suitable for the screw and plug.
- Confirm the 12V system is powered off before installation.
- Check that the drain hole (if present) is pointing downwards.
Specs in practice
- Protection class
- IP44, suitable for outdoor use.
- Luminous flux
- 65 - 750 lm output range.
Images and diagrams

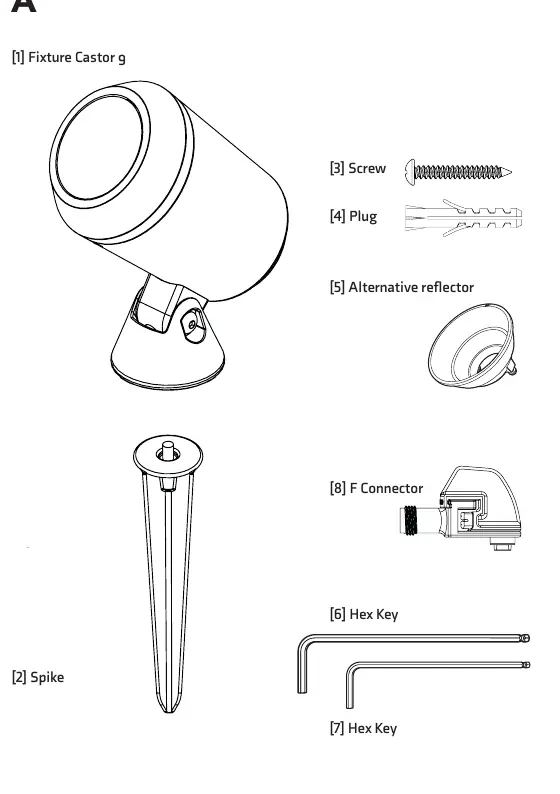

- A: Parts identification.

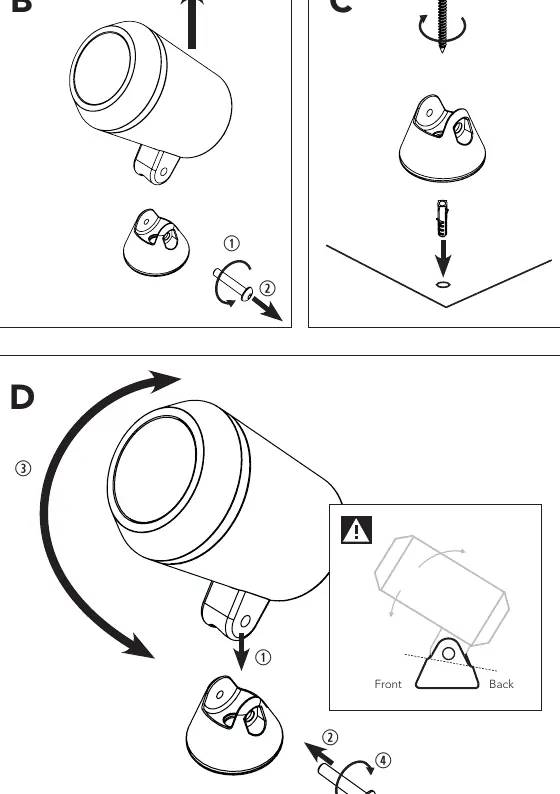

- B, C, D: Wall/surface mounting steps.
- E: Ground spike installation.

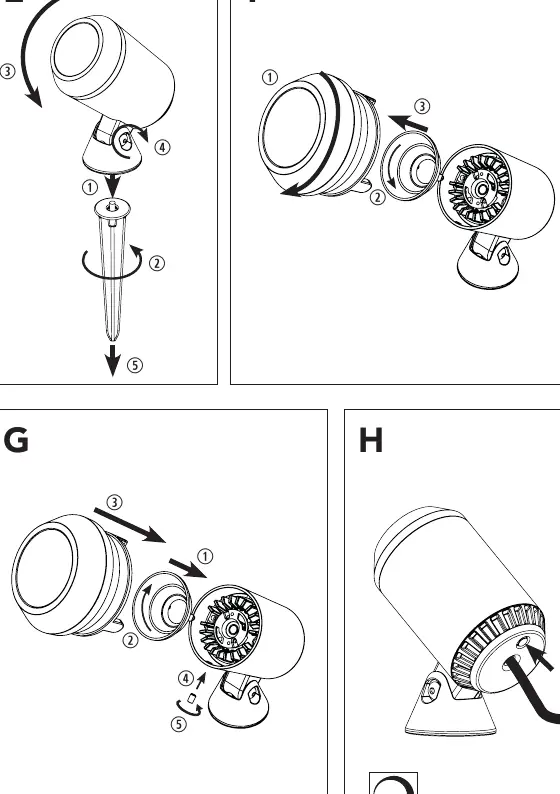

- F, G: Reflector replacement procedure.
- H: Dimmer button location.
Model compatibility
- Must be used with Lightpro 12V system.
- Not compatible with high-pressure washers.
Manual page author
David Miller
Documentation analyst
Organizes user manual content into clear summaries, with attention to model details, product context, and everyday usability.
