User Manual for Lightpro Nomia 207U Outdoor LED Spot
Quick guide for the Lightpro Nomia 207U outdoor LED spot. Learn how to install, connect to the 12V system, maintain, and safely operate your lighting.
Quick answers from the manual
Quick answer
- The Lightpro Nomia 207U is a 12V outdoor LED spot. It can be installed in the ground using the provided tube or mounted in a fixed surface by drilling a 70mm hole. It must be connected to a Lightpro 12V transformer system. p. 4, 6
Key actions
- Install in ground p. 2, 4
- Install in fixed surface p. 2, 4
Maintenance and reset
- Clean regularly with a soft, clean cloth. Clean stainless steel parts every 6 months with a stainless steel cleaning agent. p. 8, 9
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 3W | Maximum power consumption | p. 4, 6 |
| Protection Class | IP67 | Water and dust resistance | p. 4, 6 |
Where to find it in the PDF
- Installation p. 2
- System Connection p. 3
- Specifications p. 4, 6
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Lightpro Nomia 207U is a 12V outdoor LED spot designed for use with the Lightpro 12-volt lighting system. This manual provides instructions for installation in the ground or in a fixed surface, connection to the system, and safety guidelines.
Product Description
The Nomia 207U is an LED spot for outdoor use. It is IP67 rated, making it suitable for outdoor environments. It is not dimmable, and the light source is not replaceable.
Installation
Important: Never place ground spots in holes. Always install them on a flat or higher surface. Provide a layer of gravel (approx. 45 cm) in the hole to ensure proper drainage and reduce the risk of rising groundwater.
Option 1: Installation in the ground
- Place the ground tube in the ground.
- Place the fixture into the ground tube.
Option 2: Installation in a fixed surface
- Drill a hole with a diameter of 70 mm in the surface.
- Place the fixture directly into the drilled hole. The ground tube is not required for this method.
System Connection
Connect the fixture to the main 12V cable using the provided Lightpro connector. Ensure the cable is laid so it can be comfortably connected to the transformer or main cable. If the product has a drain hole, ensure it points downwards.
Safety and Maintenance
- Safety: This product is for use with 12V safety extra-low voltage systems only. Do not use in areas where combustible gases, fumes, or liquids are stored.
- Maintenance: Clean the product regularly with a soft, clean cloth. Do not use abrasive cleaners, high-pressure washers, or aggressive chemicals.
- Stainless Steel: If the product has stainless steel parts, clean them with a stainless steel cleaning agent once every 6 months.
- Access: Always install the product so it remains accessible for maintenance. Do not permanently embed or brick in the product.
Practical help
Common problems
Water drainage issues
Do not place the spot in a hole. Always use a 45cm layer of gravel to allow rainfall to drain away.
Fixture does not fit in surface
Ensure the hole drilled in the fixed surface is exactly 70mm in diameter.
Before use
- Check that all parts are present in the packaging.
- Ensure you have a Lightpro 12V transformer system.
- Plan the cable layout before installation.
- Verify the installation surface is suitable for the chosen mounting method.
Images and diagrams

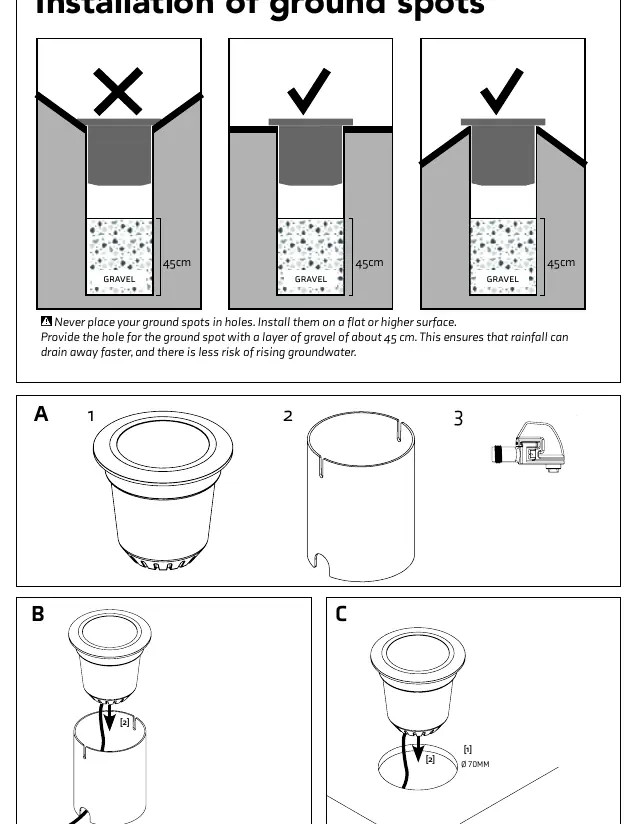

- Page 2: Visual guide for ground vs. fixed surface installation.

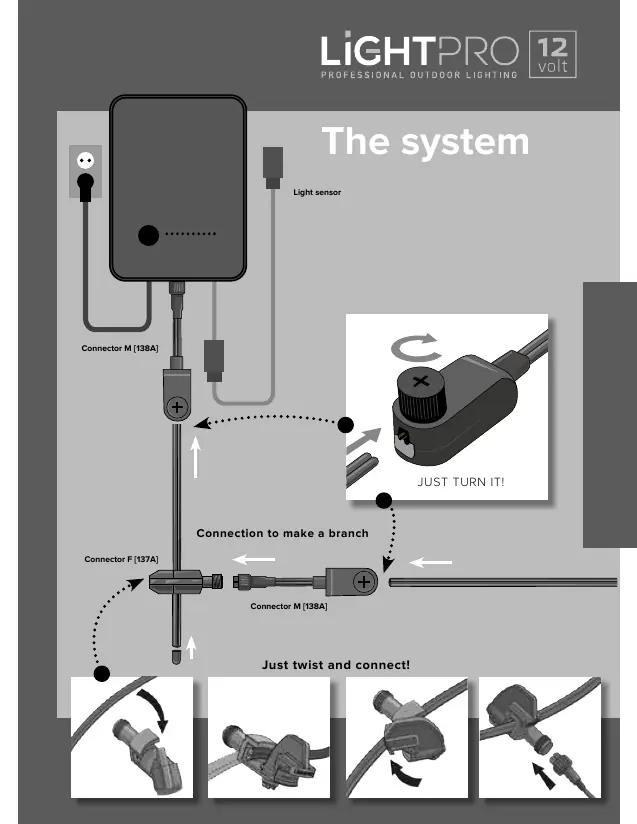

- Page 3: Diagram showing how to connect the fixture to the 12V system using the connector.
Model compatibility
- Must be used with the Lightpro 12V system.
- Not dimmable.
- Light source is not replaceable.
- Suitable for ambient temperatures between -20°C and 50°C.
