User Manual for Living Spaces Ellory Dining Table 2135T-4287
Complete assembly and operation guide for the Living Spaces Ellory Dining Table 2135T-4287. Includes step-by-step instructions for setup, extension mechanism, and leveling.
Quick answers from the manual
Quick answer
- The Ellory Dining Table is assembled by attaching the legs to the crossbar and then securing the base to the table top. It features an adjustable leveler for stability and a manual extension mechanism. p. 1, 2
Key actions
- Assemble the base p. 1
- Operate extension p. 2
- Adjust levelers p. 2
Problems and fixes
Table wobbling
Adjust the leveler at the bottom of the legs.
p. 2Maintenance and reset
- Periodically check and tighten all connectors (bolts, screws, etc.). p. 1, 2
Where to find it in the PDF
- Assembly Instructions p. 1
- Operation and Leveling p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly and operation instructions for the Living Spaces Ellory Dining Table (Model 2135T-4287). Ensure all parts are present before beginning assembly. The table features an adjustable leveler for stability and a manual extension mechanism.
Assembly instructions
Follow these steps to assemble your table:

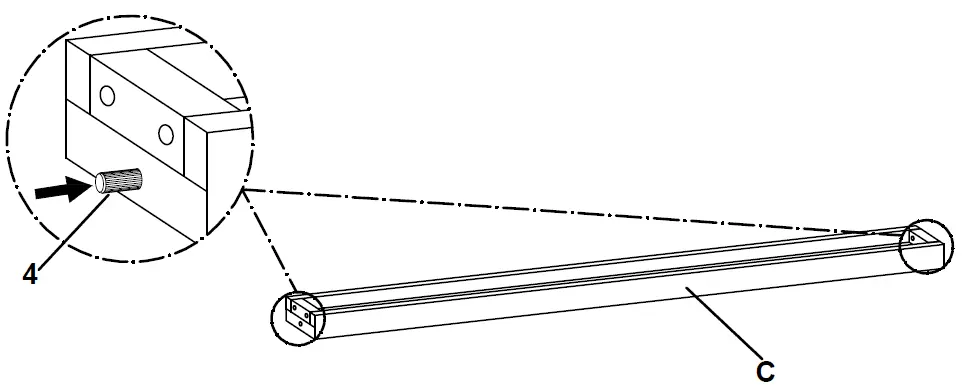

- Prepare the crossbar: Insert dowels (F) into the ends of the crossbar (C).
- Attach legs: Connect the legs (B) to the crossbar (C) using bolts (E) and the provided Allen key (D).
- Attach table top: Secure the assembled leg structure to the table top (A) using the remaining bolts (E) and the Allen key (D).
Operating the extension
The table features an extension mechanism:

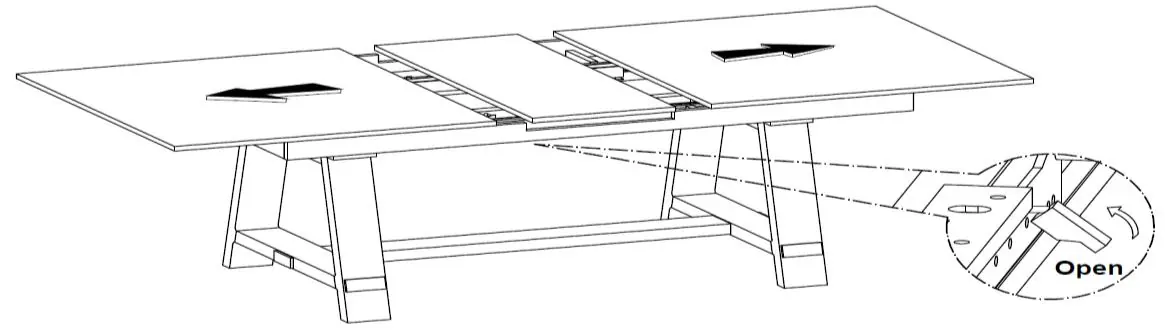

- Opening: Pull the table ends apart to reveal the extension leaf. Ensure the locking mechanism is set to 'Open'.
- Closing: Push the table ends together to close. Ensure the locking mechanism is set to 'Close'.
Maintenance and leveling
To ensure stability and longevity:
- Leveling: If the table is uneven, adjust the levelers located at the bottom of the legs until the table is balanced.
- Maintenance: Periodically check and tighten all connectors, including bolts and screws, to ensure the table remains stable.
Practical help
Common problems
Table is wobbling
Adjust the levelers located at the bottom of the table legs until the table is balanced.
Loose connections
Periodically check and tighten all bolts and screws.
Before use
- Verify all parts (A-F) are present.
- Clear a large, flat area for assembly.
- Ensure you have the provided Allen key (D).
- Assemble on a soft surface to prevent scratching.
Images and diagrams
- Steps 1-3 detail the assembly of the base and attachment to the table top.
- Steps 4-5 illustrate the opening and closing mechanism for the table extension.
- Step 6 shows the location and adjustment of the leveler.
