User Manual for Meari Speed 12S Smart Camera
Quick guide for the Meari Speed 12S smart camera. Learn how to install, connect to the CloudEdge app, troubleshoot common issues, and understand status light indicators.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential setup and operational instructions for the Meari Speed 12S smart camera. It covers physical installation, app configuration, and basic troubleshooting to ensure proper functionality.
What's in the box
Ensure all components are present before starting installation:
- Speed 12S Camera
- Power adapter
- USB cable
- Mounting bracket
- Screws
- User manual

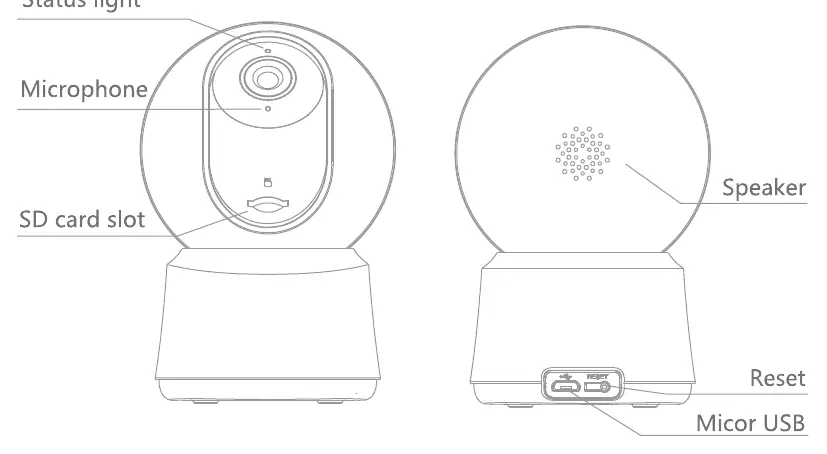

Device Description
The camera features a status light, microphone, SD card slot, speaker, reset button, and micro USB port. The status light indicates the device state:
- Solid red: Camera is turning on or malfunctioning.
- Blinking red: Awaiting WiFi connection.
- Solid blue: Camera is running correctly.
- Blinking blue: Currently connecting.
The SD card slot supports local storage up to 128GB. To reset the camera, press and hold the reset button for 5 seconds with a pin.

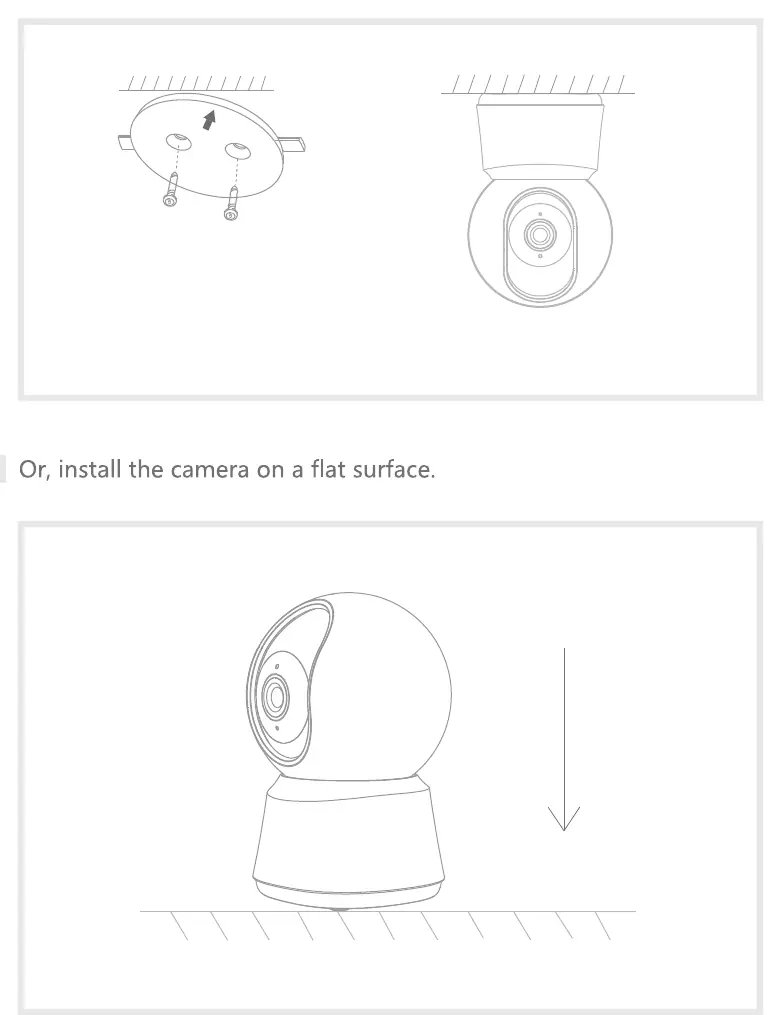

Installation
The camera can be installed in two ways:
- Wall/Ceiling Mount: Use the included mounting bracket to fix the camera to a clean surface.
- Flat Surface: Place the camera directly on a flat surface.
Connection and App Setup
Follow these steps to connect your device:
- Download the CloudEdge app from the App Store or Google Play.
- Log in to the app and select Add Device.
- Follow the on-screen instructions to add the camera. Keep the camera close to the router during configuration.
- If you need to re-select the WiFi network, press and hold the RESET button for 5 seconds to restart the device.
Functions
The camera includes several smart features:
- Pan/Tilt: Rotate the camera via the smartphone app for 360-degree vision.
- Video flip: Flip the video stream up or down.
- Motion detection: Detects movement and sends push notifications.
- Record: Supports 24H continuous recording with SD or Cloud storage.
- Day & Night: Features night-vision technology for low-light conditions.
Manufacturer information
Hangzhou Meari Technology Co., Ltd.
Practical help
Common problems
Device cannot be previewed properly
Check network status, move the camera closer to the router, or reset the device.
Device still appears in the list after resetting
The reset only clears network configuration. You must manually remove the device from the App.
SD card not identified
Ensure the card is formatted as FAT32. Insert the card after cutting power to the device.
Not receiving notifications
Confirm the App is running, notification permissions are enabled in your phone settings, and the reminder function is active in the App.
Before use
- Ensure you have a 2.4GHz WiFi network available.
- Download the CloudEdge app on your smartphone.
- Check that the mounting surface is clean.
- Ensure the SD card (if used) is formatted to FAT32.
- Keep the camera close to the router during initial setup.
Images and diagrams
- Status light: Solid red indicates startup/malfunction, blinking red indicates WiFi pairing mode.
- Status light: Solid blue indicates normal operation, blinking blue indicates connecting.
Model compatibility
- Requires CloudEdge App.
- Compatible with iOS and Android devices.
