Installation Manual for Mondolux Linea Neon Top Bendable RGBW 10W
Quick installation guide for the Mondolux Linea Neon Top Bendable RGBW 10W (ML74). Includes wiring requirements, cutting instructions, handling precautions, and mounting steps.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Mondolux Linea Neon Top Bendable RGBW 10W (ML74) is a flexible LED strip designed for professional lighting applications. This manual covers essential safety, installation, and maintenance procedures. Always ensure the system is powered by a 24V DC constant voltage driver and never connect the strip directly to 240V mains.
Technical Requirements
To ensure proper operation and longevity, adhere to the following specifications:
- Power Supply: Requires 24V DC constant voltage.
- Driver Calculation: Use the formula: (Length of LED) x (Power) x (1.1) = Minimum power requirement of the driver.
- Max Run Length: 5m maximum without voltage drop. Contact Mondolux for longer lengths.
- Bending Limit: Do not curve in a diameter smaller than 200mm.
Handling and Cutting
Proper handling is critical to prevent damage to the internal LEDs:
- Cutting: Cut only through the scissors symbol marked on the Neonflex. Do not cut while the strip is powered.
- Twisting: Do not twist the strip, as this can damage the internal components.
- Bending: Do not bend the strip beyond the specified minimum diameter.
- Safety: Ensure one end is connected to the driver while the other remains disconnected to prevent damage.
Installation Steps
- Place the mounting clips on the desired surface and secure them with screws.
- Click the Neonflex strip into the mounting clips, ensuring it is firmly fixed.
- Connect the strip to the remote driver.
- Connect the driver to the mains power supply.
Care and Maintenance
To maintain the finish of the product, follow these cleaning guidelines:
- Do not use bleach or concentrated solvents under any circumstances.
- For Black finish: Wipe gently with a soft damp cloth or chamois. Do not use any abrasive compounds.
Practical help
Common problems
Voltage drop
The maximum running length is 5m. For longer lengths, contact Mondolux.
Damage from bending
Do not bend the strip in a diameter smaller than 200mm.
Damage from twisting
Do not twist the LED strip during installation or handling.
Driver failure
Ensure the driver is sized correctly using the formula: (Length of LED) x (Power) x (1.1).
Before use
- Ensure you have a 24V DC constant voltage power supply.
- Calculate the minimum driver power requirement before installation.
- Verify the installation surface is suitable for mounting clips.
- Ensure the strip is not connected to 240V mains directly.
- Check that the strip is not twisted or bent beyond 200mm diameter.
Specs in practice
- Max run length
- 5m maximum without voltage drop.
- Min bend diameter
- 200mm.
- Power calculation
- (Length of LED) x (Power) x (1.1) = Minimum driver power.
Images and diagrams

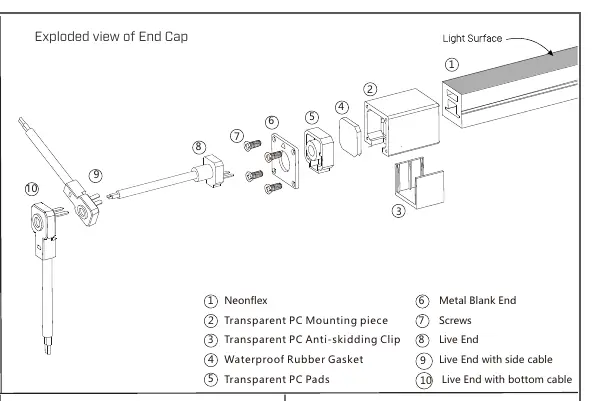

- The exploded view shows the assembly of the end cap, including the waterproof rubber gasket and mounting clips.
- Handling instructions illustrate the prohibition of twisting and bending the strip.
Model compatibility
- Requires 24V DC constant voltage driver.
- Not for direct 240V connection.
