Installation and usage instructions for Fiamma Carry-Bike Frame Ducato E-Bike
Quick guide for installing and using the Fiamma Carry-Bike Frame Ducato E-Bike. Includes mounting steps, compatibility checks, and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides installation and usage instructions for the Fiamma Carry-Bike Frame Ducato E-Bike. Before starting, ensure the product is compatible with your vehicle. The installation must be carried out by qualified personnel in compliance with local regulations. Always check that the rear door is solid enough to support the rack. Note that this model is not suitable for vehicles with 270° hinge systems and must be installed only on the right rear door.
Compatibility and safety
- Compatibility: Check compatibility with your vehicle's rear windows by downloading the template from fiamma.com.
- Hinge System: Not compatible with 270° hinge systems.
- Installation: Must be installed on the right rear door only.
- Weight Distribution: Heaviest bikes must be placed near the vehicle wall.
- E-Bikes: It is advisable to remove batteries from e-bikes before loading.
- Bike Covers: Bike covers are not allowed on this model.
- Rear Door: The rear door can be opened even with bikes mounted.
Installation
The installation involves several steps, including drilling and replacing existing screws on the vehicle door. Follow the assembly diagrams carefully. Ensure that the rear door is securely closed before beginning. When replacing screws, always do so one at a time to maintain the door's structural integrity. Tighten screws firmly but do not force them. Ensure there is a 2mm space when tightening the fork to the tube.
Usage and loading
Always comply with speed limits and traffic laws. The presence of the bike carrier changes the vehicle's weight distribution; ensure you do not exceed the maximum permissible axle load. Use a signal for protruding loads if required. If rear visibility is limited, use additional rear-view mirrors. Be cautious when reversing, especially if the vehicle has parking sensors.
Maintenance
Check the bicycle rack periodically to ensure it is firmly attached, especially after the first few kilometers and before/after long trips. Inspect rubber parts and straps for wear; replace them immediately if they are porous or damaged. If you encounter problems, contact your local dealer and provide the data from the nameplate.
Official resources from the manual
Manufacturer information
Fiamma SpA
Practical help
Common problems
Compatibility with rear windows
Download the template from fiamma.com to check if the rack is compatible with your specific window configuration.
Rack feels loose or shifts
Check all screws and brackets periodically, especially after the first few kilometers and before long trips. Ensure belts are tight.
Rear door does not open correctly
Ensure the rack is installed correctly and that no parts obstruct the hinge movement. Tighten screws while ensuring the door opens and closes properly.
Before use
- Verify vehicle compatibility (not for 270° hinges).
- Ensure the rear door is securely closed before installation.
- Check that the wall/door is solid enough for anchoring.
- Remove batteries from e-bikes before loading.
- Ensure heaviest bikes are placed near the vehicle wall.
- Check that the rear door opens and closes correctly after installation.
Specs in practice
- Compatibility
- Designed for Fiat Ducato vans.
Images and diagrams

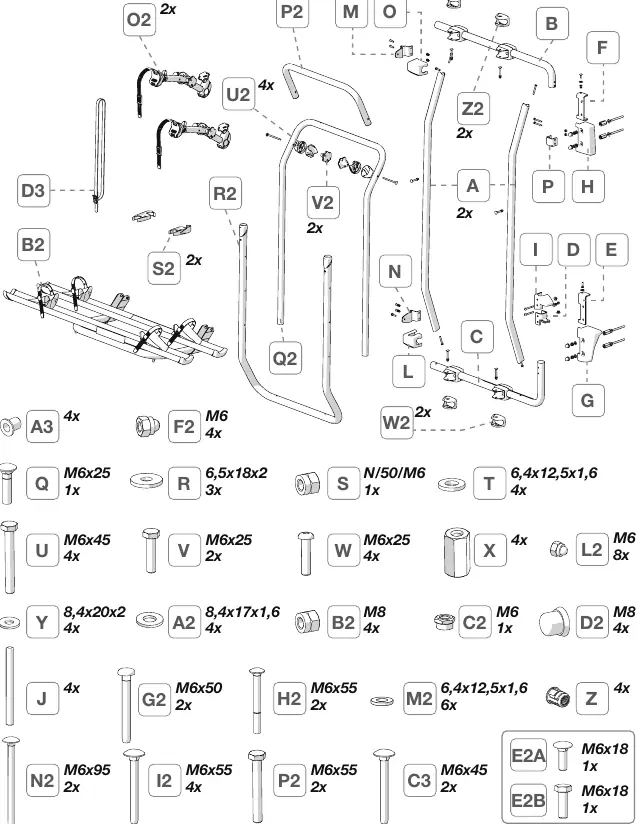

- Page 2: Exploded view of all parts and hardware included.

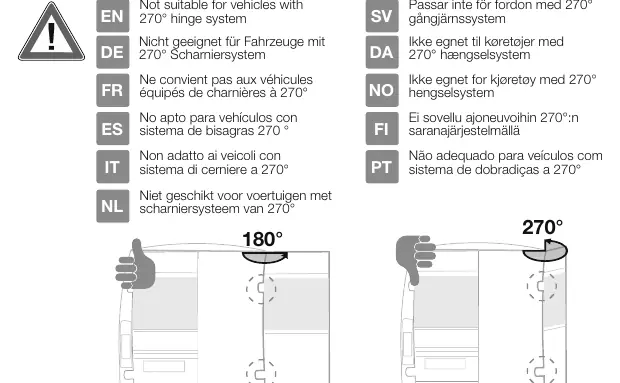

- Page 5: Warning regarding 270° hinge systems.

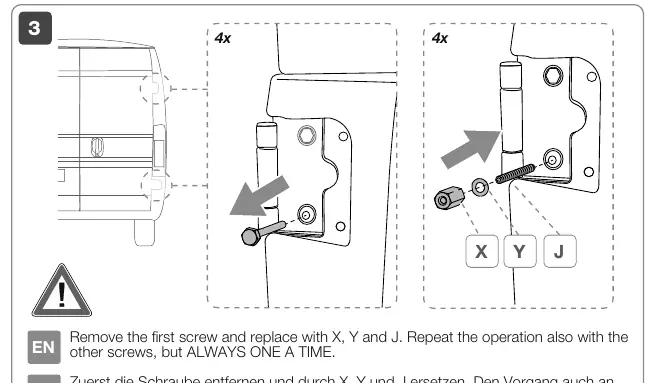

- Page 8: Step-by-step instruction for replacing door screws.
- Page 25: Summary of usage conditions and safety warnings.
Model compatibility
- Not suitable for vehicles with 270° hinge systems.
- Installation only on the right rear door.
- Requires checking window compatibility via template on fiamma.com.
