User Manual for OUPES 1200W Portable Power Station

Quick guide from the manual

This document provides essential instructions for operating the OUPES 1200W Portable Power Station. Before first use, ensure the device is fully charged. The unit features a LiFePO4 battery, multiple output ports (AC, DC, USB-A, USB-C), and an LCD display for monitoring status. Always operate within the specified temperature range of 0-40°C.

Product description

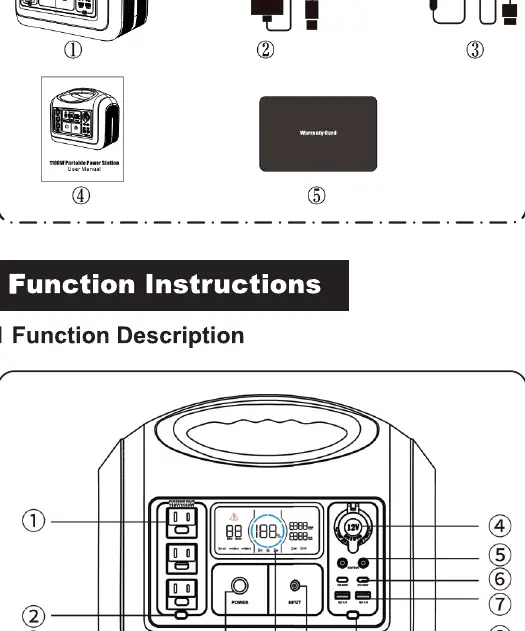

The package includes the Portable Power Station, an AC Adapter, a 7909 connection wire for vehicle 12V output, a user manual, and a warranty card. The front panel features the main power button, input port, AC output ports, DC output ports (including car charger and USB), and an LCD screen.

Charging the device

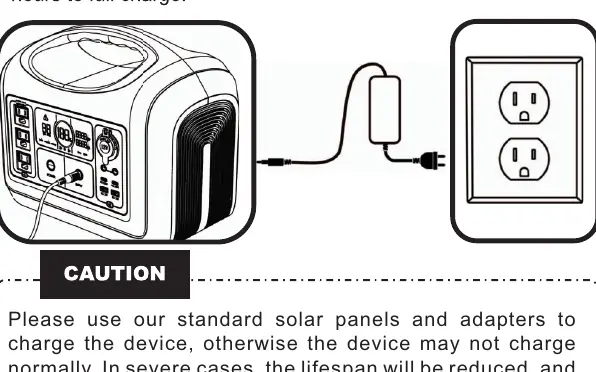

There are three ways to recharge the power station:

• Standard AC Adapter: Connect the 7909 input port to a wall outlet using the provided 200W AC adapter. Full charge takes approximately 7.5 hours.
• Car Charger: Connect the 7909 input port to the vehicle's 12V cigarette lighter port using the provided cable. Full charge takes at least 8 hours.
• Solar Panels: Connect 2x100W solar panels to the 7909 input port. Charging time depends on sunlight conditions (at least 8 hours).

Caution: Always use standard adapters and solar panels to avoid damage. Unplug the adapter after charging is complete.

Operating instructions

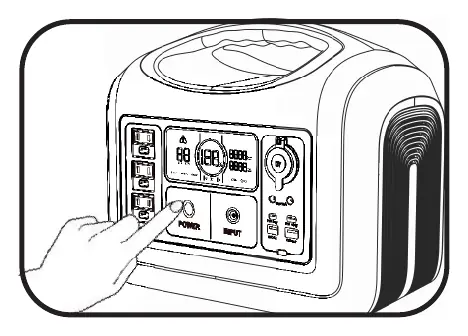

• Power On/Off: Long press the main power button for 2 seconds to turn the unit on or off.

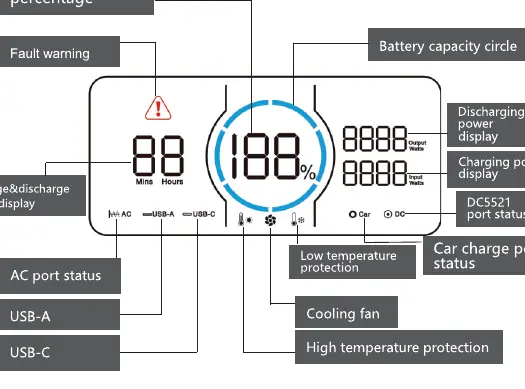

• AC Output: Once the unit is on, press the AC output button to activate AC ports. The AC icon will appear on the LCD. Press again to turn off.
• DC Output: Press the DC power button to activate DC output zones (Car, USB-C, USB-A). Corresponding icons will light up on the LCD.
• LED Light: Press the light button to cycle through modes: 50% brightness, 100% brightness, SOS flashing, and off.

Frequency switching

To switch the AC output frequency (50Hz/60Hz):

1. Ensure the unit is on and AC output is off.

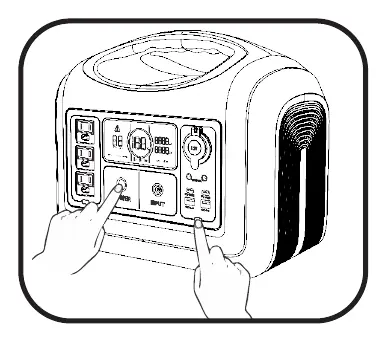

2. Press the main power button and DC button simultaneously to enter the frequency menu.
3. Press the AC output button to toggle between 50Hz and 60Hz.
4. Long press the main power button to confirm the setting (display will show SUC).
5. Long press the main power button again to exit.

Storage and maintenance

• Turn off all switches when not in use to prolong battery life.
• Keep the surface clean and avoid contact with volatile chemicals.
• Store in a dry, ventilated, dustless environment (0-40°C).
• Charge the battery at least once every 6 months.
• For long-distance transport, keep battery power between 40%-60%.

Troubleshooting

If a fault occurs, the LCD will display a code:

• E000: AC Short Circuit Protection. Press AC Output button to recover.
• E001: Over Load Protection. Check load and press corresponding button.
• E002: Battery Low Voltage. Charge the unit.
• E003: System Overload. Total load exceeds 1200W. Shut down AC or reduce load.
• E004: Inverter Fault. Check for overheating or abnormal load.
• E006: Input voltage error. Ensure input is within 12-30V.

Technical specifications

• Rated Power: 1200W (Peak 3600W)
• AC Output: 100-120Vac (60Hz) or 220-240Vac (50Hz)
• Battery Capacity: 992Wh (310000mAh)
• Input: 12V-30V, 200W Max
• Dimensions: 330 x 220 x 289 mm
• Weight: 11.0 kg
