Assembly Instructions for Real Flame 13210E Electric Fireplace TV Stand

Quick Guide

This manual provides assembly and maintenance instructions for the Real Flame 13210E electric fireplace TV stand. Always ensure the firebox is unplugged and cooled down before performing any assembly, adjustment, or cleaning tasks.

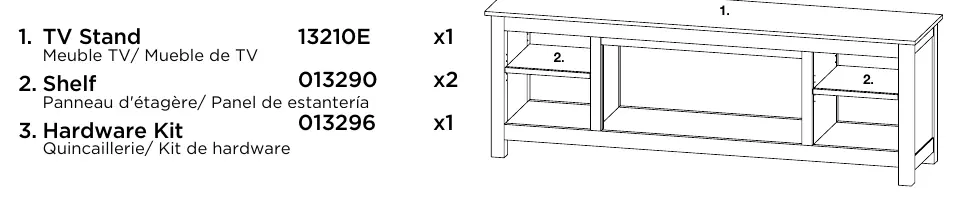

Parts List

• TV Stand (13210E)
• Shelves (013290)
• Hardware Kit (013296) including Shelf Brackets, Shelf Screws, and Firebox Screws

Assembly Steps

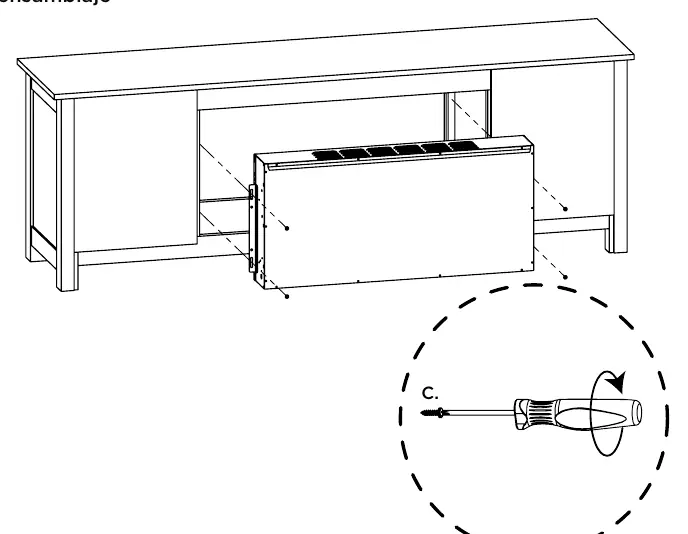

The firebox is designed to be installed into the TV stand. Ensure the firebox is unplugged. Align the firebox with the opening in the TV stand and secure it using the provided firebox screws as shown in the assembly diagram.

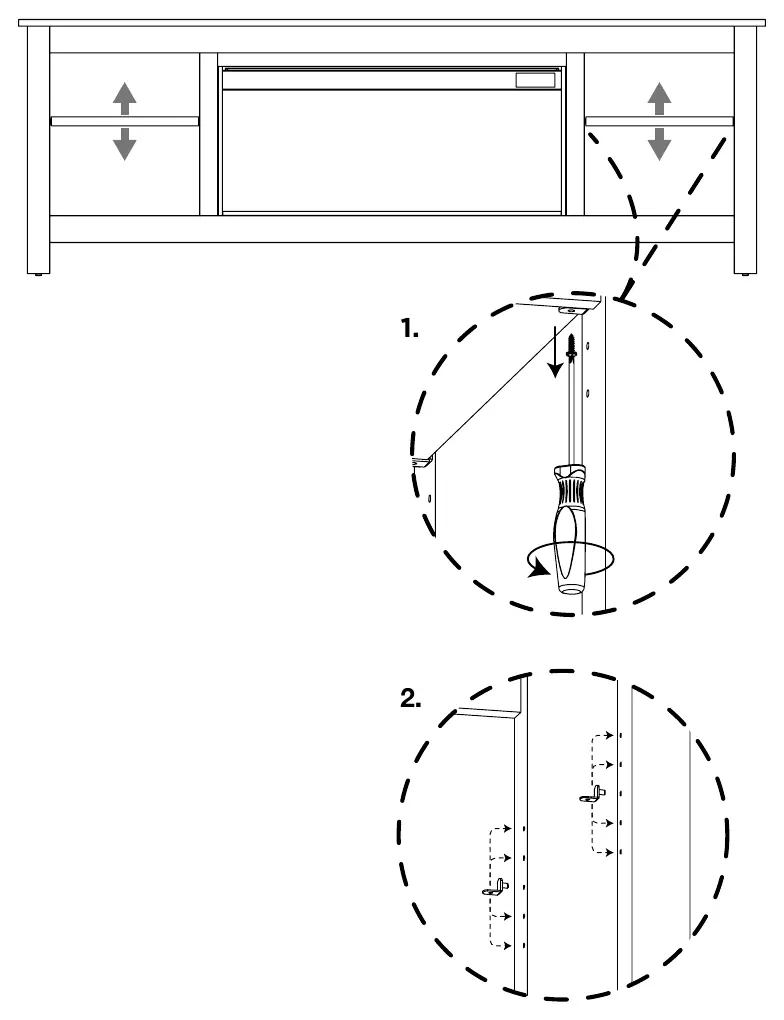

Shelf Adjustment

To adjust the shelf height:

1. Remove the shelf screws using a screwdriver.
2. Reposition the shelf brackets to the desired height holes.
3. Place the shelf on the brackets and re-secure the shelf screws.

Care and Cleaning

• General Cleaning: Dust regularly using a soft, dry microfiber cloth.
• Stubborn Spots: Use a cloth dampened with mild soap and water. Wipe gently and dry immediately.
• Glass Panel: Use a standard glass cleaner or vinegar-water solution. Spray the cleaner onto a cloth, not directly on the glass, and wipe gently.
• Warnings: Never spray liquids directly onto the firebox or electrical components. Do not use harsh chemicals or abrasive pads, as they can damage the finish. Always unplug the unit before cleaning.

Warranty and Returns

The product includes a 1-year limited warranty on the body. Returns are accepted within 90 days of receipt, provided the item is 100% complete, in original packaging, and in resalable condition. For technical support or warranty claims, contact Real Flame Customer Service at 1-800-654-1704.
