User Manual for Rocker Dragon 200-T Lab Burner Set
Quick guide for the Rocker Dragon 200-T Lab Burner Set. Learn how to set up, operate, and maintain your laboratory burner safely.
Quick answers from the manual
Quick answer
- The Dragon 200-T is a lab burner set. To operate, place the burner in the stand, add the ceramic mesh, and use the gas control knob to ignite and adjust the flame. Use only butane gas. p. 1
Key actions
- Ignite the burner p. 1
- Adjust flame intensity p. 1
First start
- Initial setup p. 1
Maintenance and reset
- Cleaning p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Load | 1000 mL | Maximum capacity of water-full beaker | p. 1 |
Where to find it in the PDF
- Instruction Manual p. 1
Table of contents
Quick guide from the manual
The Rocker Dragon 200-T is a laboratory burner set designed for heating applications. Before use, ensure the shipping carton is undamaged and all components are present. The system requires butane gas for operation and is designed to support a maximum load of a 1000 mL water-full beaker.
Product Overview
The set consists of three main components:
- Lab Burner Stand: Provides a stable base for the burner and the heating vessel.
- Dragon 200 Lab Burner: The heating element.
- Ceramic Net Mesh: Placed on the stand to support the beaker.
Setup and Operation
- Place the lab burner stand on a flat and stable surface.
- Insert the gas-filled Dragon 200 Lab Burner into the bottom middle of the stand.
- Place the ceramic net mesh on top of the stand.
- Place the beaker on the ceramic net mesh.
- To ignite, turn the gas control knob counterclockwise and press the ignition button.
- Adjust the flame by turning the gas control knob: counterclockwise to increase the flame, and clockwise to decrease or shut it off.
Maintenance
Always allow the lab burner stand to cool down completely after use. Clean the surface using pure water or 75% ethanol.
Safety Information
The burner stand and surrounding area become very hot during operation. Handle with care to avoid serious burns. Do not modify the instrument in any way, as this voids the warranty and may create potential hazards. Use only butane gas.
Practical help
Common problems
Burner does not ignite
Ensure the gas control knob is turned counterclockwise and the ignition button is pressed firmly.
Unstable heating setup
Ensure the stand is placed on a flat, stable surface and the beaker is centered on the ceramic net mesh.
Before use
- Check the shipping carton for damage before unpacking.
- Verify all items from the standard package list are present.
- Ensure the burner is filled with butane gas.
- Place the stand on a flat, stable surface.
Images and diagrams

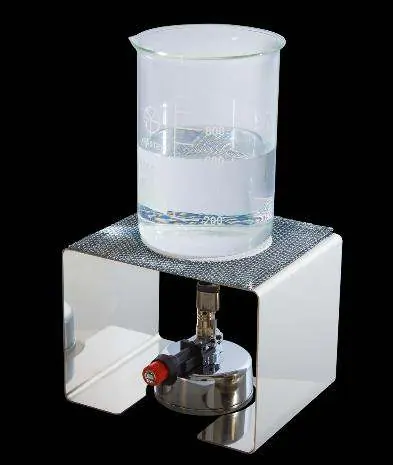

- The stand provides a bridge-like structure to hold the ceramic mesh and beaker above the burner.
- The burner is positioned in the center of the stand base.
Model compatibility
- The system is designed for use with a 1000 mL water-full beaker maximum load.
