User Guide for Sanela SLS 02B Automatic Shower Control
Comprehensive user guide for the Sanela SLS 02B automatic shower control. Includes installation instructions, sensor settings, maintenance procedures, and technical specifications.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Sanela SLS 02B is an automatic shower control with a mixer, designed for wall mounting. It operates on 6V batteries and features an infrared sensor for touchless operation. Key features include adjustable sensor distance, automatic shut-off, and a hygienic flush function. Before installation, it is essential to read the attached safety instructions.
Installation
The product must be mounted on a vertical, smooth, and non-porous wall. To ensure the IP 53 protection rating, the stainless steel cover must be sealed with silicone sealant around the perimeter during installation. Ensure the water supply pressure is between 0.1 and 0.6 MPa and that the sieve is clean (mesh size ≤ 90 µm).
Operation
The system operates via an infrared sensor. Standard operation involves a start/stop function. The system includes a safety shut-off feature to prevent continuous water flow. The hygienic flush interval and duration can be adjusted to prevent bacterial growth.
Settings and Adjustments
The sensor settings can be adjusted using the remote control (SLD 03):
- Sensor distance: Adjustable between 0.3 and 0.7 meters.
- Activation delay: Adjustable between 0 and 15 seconds.
- Safety shut-off: Adjustable between 10 and 310 seconds.
- Hygienic flush: Interval can be set to OFF, 6, 8, 12, 24, 48, 72, or 168 hours. Duration is adjustable from 5 to 1200 seconds.
Maintenance
Regular maintenance is recommended. Monitor the battery status; if the indicator flashes, replace the batteries. Use only recommended batteries (SLA 36: set of 4 alkaline AA batteries, 1.5 V, 2700 mAh). For technical support or service, contact the installation company or visit www.sanela.eu/service.
Official resources from the manual
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Sensor not detecting or erratic operation
Check the sensor distance setting (0.3 - 0.7 m) and ensure there are no obstructions in front of the sensor.
Battery status indicator flashing
The battery capacity is low. Replace the batteries immediately with 4x AA alkaline 1.5V batteries.
Water leaking behind the cover
Ensure the stainless steel cover was properly sealed with silicone sealant during installation to maintain IP 53 protection.
Before use
- Read the attached safety instructions thoroughly.
- Verify the wall surface is vertical, smooth, and non-porous.
- Check that water pressure is within the 0.1 - 0.6 MPa range.
- Ensure the sieve is clean (≤ 90 µm).
- Confirm the battery compartment is correctly installed and connected.
Images and diagrams

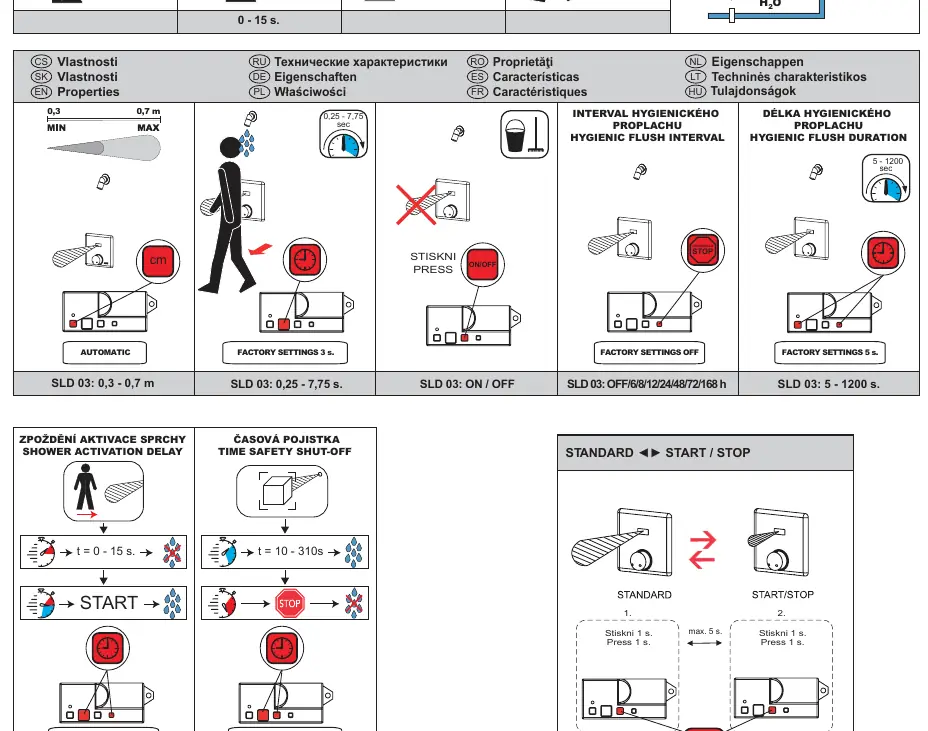

- Page 1: Overview of sensor settings, including distance, activation delay, and hygienic flush parameters.

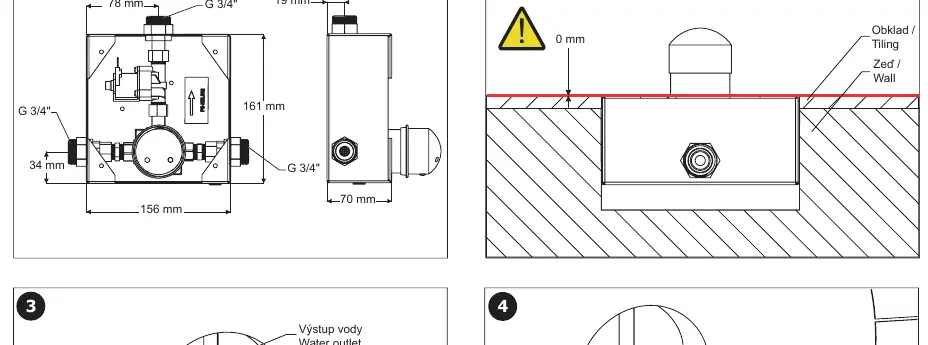

- Page 3: Installation dimensions and mounting steps.
- Page 4-5: Detailed steps for battery replacement and assembly.

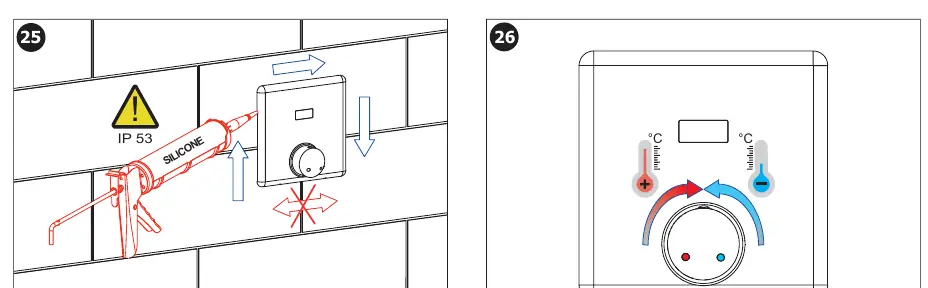

- Page 6: Instructions for IP 53 compliant sealing.
Model compatibility
- Use only recommended accessories, such as SLA 36 (4x AA alkaline batteries).
- Compatible with SLD 03 universal remote control for sensor settings.
