User Manual for Sanela SLS 02PB Piezo-Controlled Shower Mixer
Quick guide for the Sanela SLS 02PB Piezo-Controlled Shower Mixer. Includes installation steps, operation, maintenance, and technical specifications.
Table of contents
Manual images
Jump to the sectionImportant Information
The Sanela SLS 02PB is a piezo-controlled shower mixer designed for cold and hot water. To ensure the IP 53 protection rating, the device must be mounted on a vertical, smooth, and non-porous wall. The stainless steel cover must be sealed with silicone sealant during installation to maintain this protection. Always read the attached safety instructions before beginning installation.
Installation
The installation process involves mounting the mixer box into the wall and connecting the water supply. Ensure the water pressure is within the specified range. The stainless steel cover must be sealed with silicone sealant around the perimeter to ensure water tightness.
- Ensure the wall surface is smooth and non-porous.
- Connect the hot and cold water inlets as indicated.
- Seal the stainless steel cover with silicone sealant during the final assembly.
- Follow the numbered steps 1-24 provided in the manual for the complete assembly sequence.
Operation

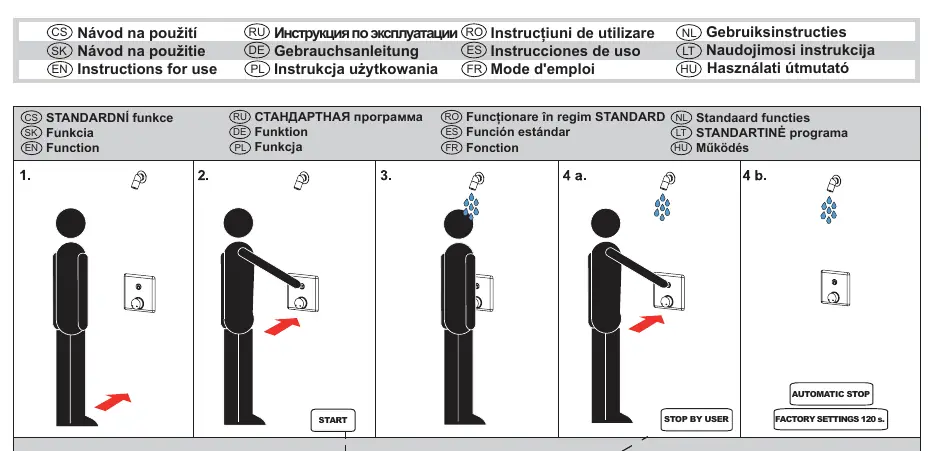

The shower mixer is operated via a piezo button. Press the button to start the water flow. The system features an automatic stop function to prevent water waste. The factory setting for the automatic stop is 120 seconds.
Maintenance
Regular maintenance is required to ensure proper operation. This includes checking the battery status and cleaning the sieve.
- Battery Replacement: Monitor the LED indicator. If the system indicates low battery, replace the batteries. Follow the steps in the manual to access the battery compartment.
- Cleaning: Keep the piezo button and the shower head clean. Ensure the sieve is free of debris.
Technical Specifications
The following technical parameters apply to the SLS 02PB:
- Operating Pressure: 0.1 - 0.6 MPa
- Sieve Dimension: ≤ 90 µm
- Power Supply: 6 V
- Factory Settings: Automatic stop at 120 seconds
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Water flow stops automatically
This is a normal function. The factory setting is 120 seconds. If you need to change this, use the SLD 04 remote control.
LED indicator flashing
Check the battery status. If the LED indicates a low battery, replace the batteries immediately.
Water leakage around the cover
Ensure the stainless steel cover was sealed with silicone sealant during installation as required for IP 53 protection.
Before use
- Verify that the water pressure is between 0.1 and 0.6 MPa.
- Ensure the wall surface is vertical, smooth, and non-porous.
- Have silicone sealant ready for sealing the stainless steel cover.
- Read the separate safety instructions provided with the product.

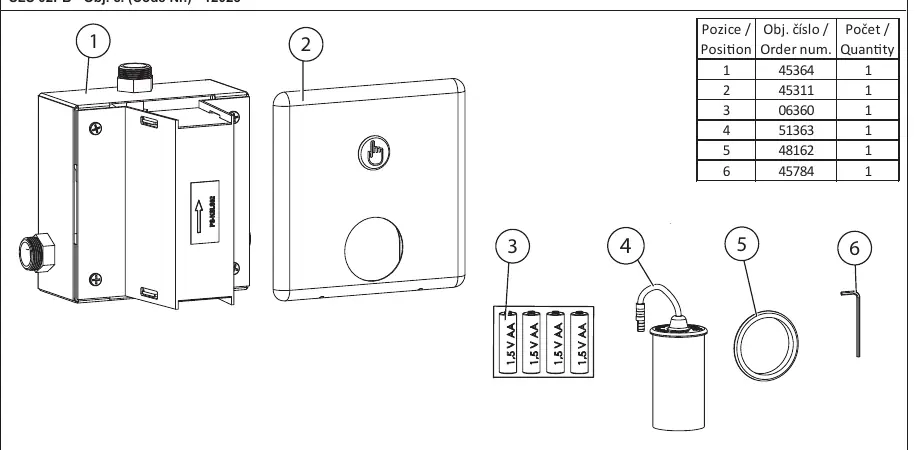

- Check that all supplied equipment (mixer, battery pack, etc.) is present.
Images and diagrams

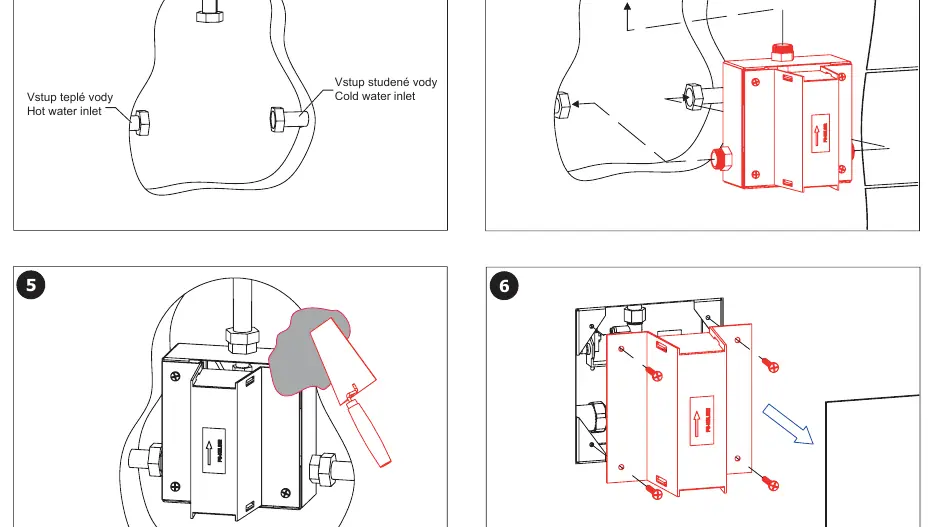

- Steps 1-9: Mounting the mixer box and connecting water lines.

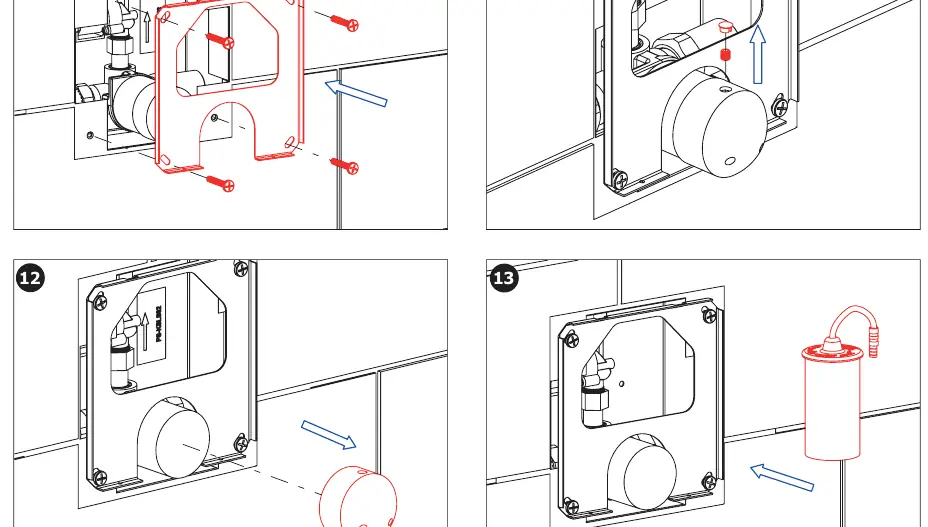

- Steps 10-16: Battery installation and connection.

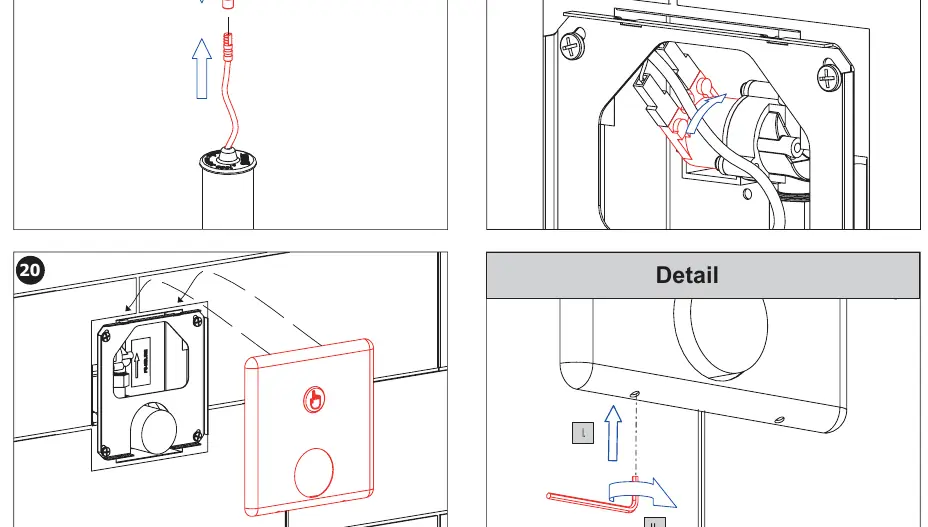

- Steps 17-24: Final assembly, sealing with silicone, and operation check.
Model compatibility
- Compatible with SLD 04 remote control for parameter adjustment.
- Compatible with various SLA series vandal-proof shower heads.
