Installation and User Guide for Sanela SLUN 04E Stainless Steel Wall Hung Sink
Complete installation and operation guide for the Sanela SLUN 04E wall-hung sink. Includes wiring instructions, sensor settings, maintenance, and technical specifications.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Sanela SLUN 04E is a stainless steel wall-hung sink with integrated electronics. Crucial: The unit must be connected to a constant 24 V DC power supply. Do not connect the power supply unit behind a light switch, as this will cause the device to malfunction. The sink operates automatically via a sensor with a 5-minute automatic stop feature.
Installation
Before installation, ensure you have read the safety instructions. The sink requires a water inlet (G 1/2") and a waste pipe (Ø 40 mm). The recommended height for the top edge of the sink is 850 mm above the ground.
- Ensure the water pressure is between 0.1 and 0.6 MPa.
- The sieve dimension must be ≤ 90 µm.
- Follow the step-by-step mounting instructions provided in the manual (pages 4-5) for proper wall attachment and plumbing connections.
- Connect the 24 V DC power supply according to the wiring diagram.
Operation and Settings
The sink operates automatically when hands are detected by the sensor. The factory setting for the automatic stop is 5 minutes. Additional parameters, such as hygienic flush intervals, flush duration, and time safety shut-off, can be adjusted using the optional SLD 03 remote control.
Maintenance
Regular maintenance is recommended to ensure proper function. If water flow decreases, check and clean or replace the aerator. The aerator can be removed and replaced using the procedure outlined in the manual (page 7).
Safety and Technical Specifications
The unit is designed for 24 V DC operation. Always ensure the power supply is constant. For technical support or service, contact your installation company or visit www.sanela.eu/service.
Official resources from the manual
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Sink does not operate
Check if the power supply is connected to a light switch. It must be connected to a constant 24 V DC source.
Low water flow
Check the aerator for debris or scale buildup and clean or replace it.
Sensor not detecting hands
Ensure the sensor area is clean and not obstructed. Verify the power supply is active.
Before use
- Verify 24 V DC power supply is available.
- Ensure water pressure is between 0.1 and 0.6 MPa.
- Confirm waste pipe diameter is 40 mm.
- Check that water inlet is G 1/2".
- Ensure the power supply is NOT connected to a light switch circuit.
Specs in practice
- Power Supply
- 24 V DC (must be constant voltage).
- Water Pressure
- 0.1 - 0.6 MPa.
- Automatic Stop
- Factory setting is 5 minutes.
- Sieve Dimension
- ≤ 90 µm.
Images and diagrams

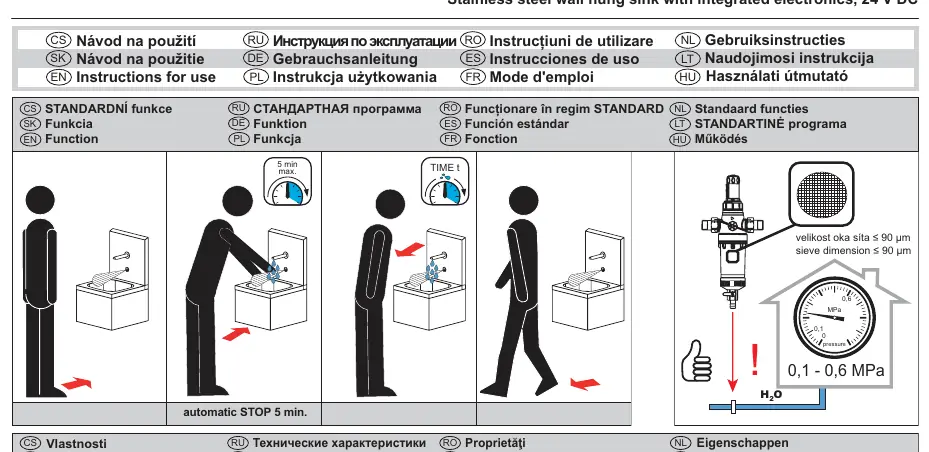

- Page 1: Sensor operation modes and factory settings.

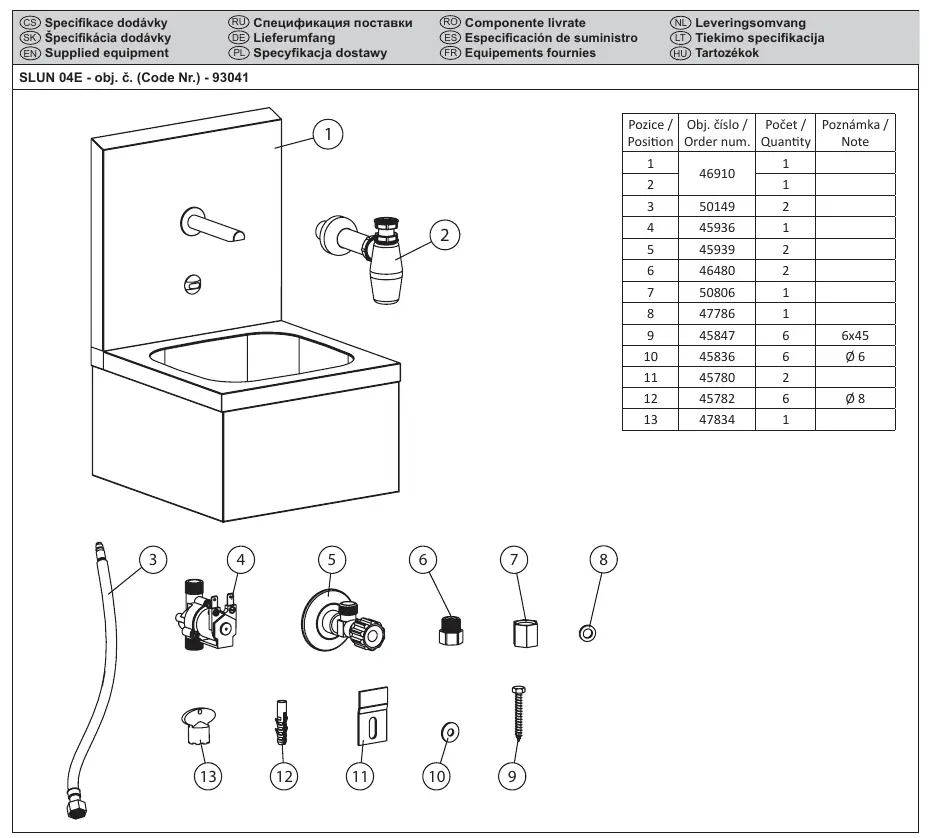

- Page 2: Supplied equipment list and mounting overview.
- Page 3: Technical dimensions and installation layout.

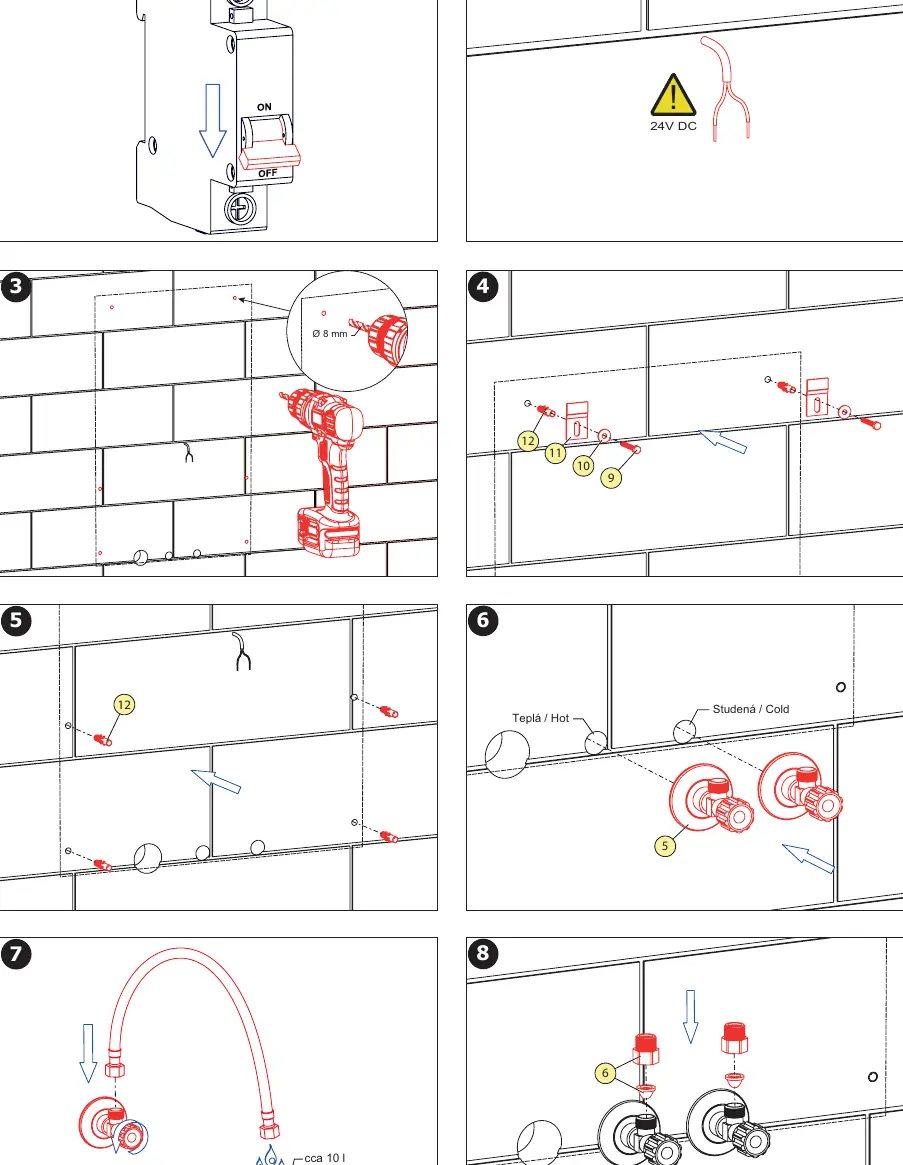

- Page 4-5: Step-by-step installation and wiring process.
- Page 7: Aerator replacement procedure.
Model compatibility
- Requires SLD 03 remote control for parameter adjustments.
- Compatible with Sanela SLZ series power supplies.
