User Manual for Sanela SLUN 04EB Stainless Steel Wall Hung Sink
Quick guide for the Sanela SLUN 04EB stainless steel wall-hung sink. Includes installation steps, sensor settings, battery replacement, and maintenance instructions.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Sanela SLUN 04EB is a stainless steel wall-hung sink with integrated electronics and a 6V power supply. This manual covers the installation, operation, and maintenance of the unit. Key features include an automatic sensor-controlled water flow, adjustable hygienic flush, and a time safety shut-off function.
Installation
Before installation, ensure the water pressure is between 0.1 and 0.6 MPa and the sieve mesh size is 90 µm or smaller. The sink must be mounted at a height of 850 mm above the ground. Follow the step-by-step instructions provided in the manual for wall mounting, water supply connection (hot and cold), and waste pipe installation. Ensure all connections are secure and leak-free before finalizing the assembly.
Operation and Settings

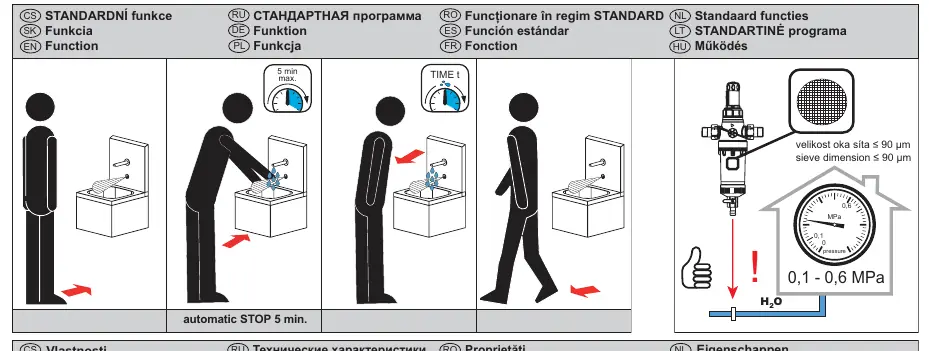

The sink operates automatically via an integrated sensor. The default automatic stop time is 5 minutes. The unit supports a hygienic flush function to prevent bacterial growth. Advanced settings, such as flush duration, interval, and sensor range, can be adjusted using the optional SLD 03 remote control. The sensor range is adjustable between 0.1 and 0.3 meters.
Maintenance
Regular maintenance is required to ensure optimal performance. This includes checking the battery status and replacing batteries when necessary. The battery status is indicated by the LED system. Additionally, the aerator should be cleaned or replaced periodically to maintain proper water flow. Use only recommended accessories, such as the SLA 56A or SLA 56B economical aerators, to optimize water usage.
Troubleshooting
If the system is not functioning correctly, check the battery capacity. If the LED indicates 0% capacity, the batteries must be replaced immediately. Ensure the sensor area is clean and free of obstructions. For further technical support or service, contact the installation company or visit the manufacturer's website.
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Sensor not triggering water flow
Check battery status. If the LED indicates 0% capacity, replace the batteries.
Low water flow
Check the aerator for debris or mineral buildup and clean or replace it.
Water runs continuously
Verify the sensor range setting or check for obstructions in the sensor field.
Before use
- Ensure water pressure is between 0.1 and 0.6 MPa.
- Verify the sieve mesh size is ≤ 90 µm.
- Check that the installation height is 850 mm above the ground.
- Ensure hot and cold water supplies are connected correctly.
- Verify batteries are installed with correct polarity.
Specs in practice
- Power Supply
- 6V (AA alkaline batteries).
- Water Pressure
- Operating range is 0.1 - 0.6 MPa.
- Sensor Range
- Adjustable between 0.1 and 0.3 meters.
- Automatic Stop
- Default setting is 5 minutes to prevent flooding.
Images and diagrams

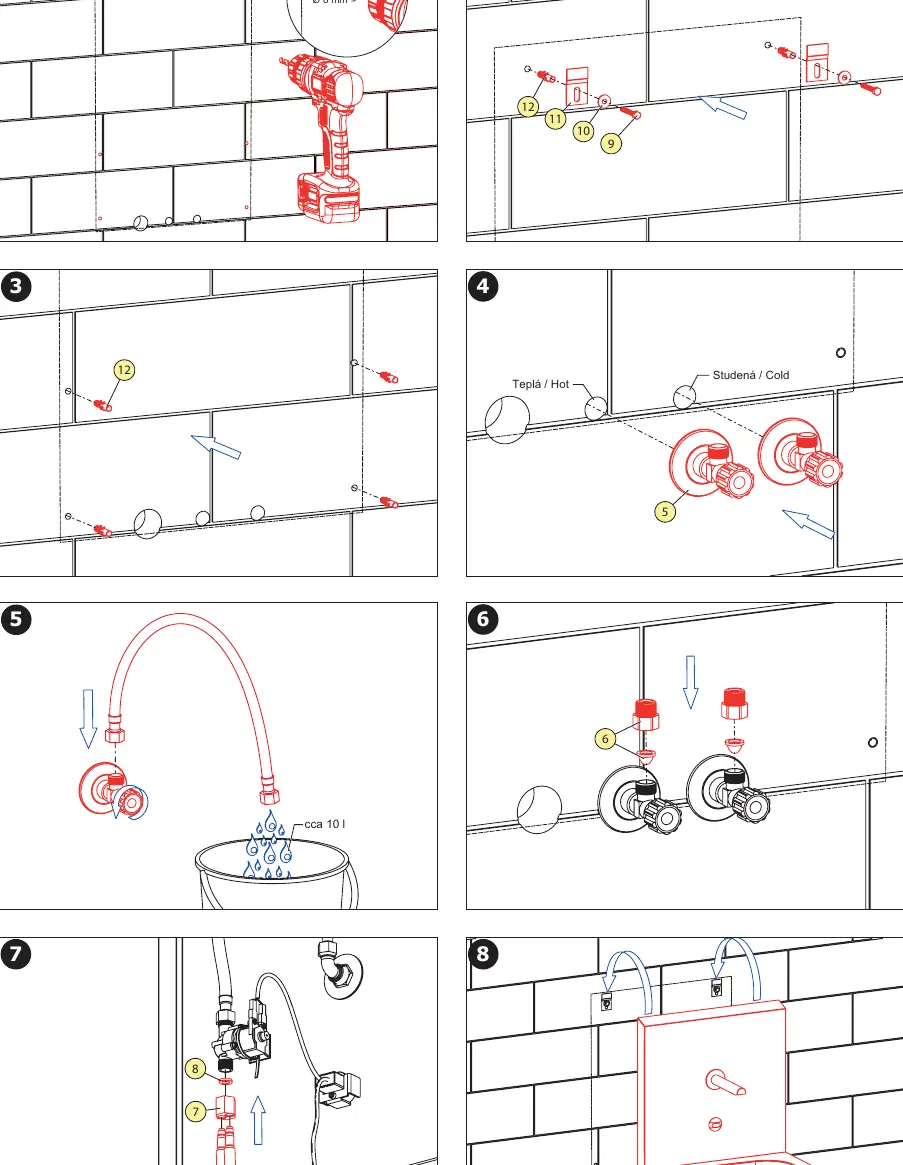

- Page 4: Step-by-step wall mounting and plumbing connection guide.
- Page 6: Battery status LED indication table.

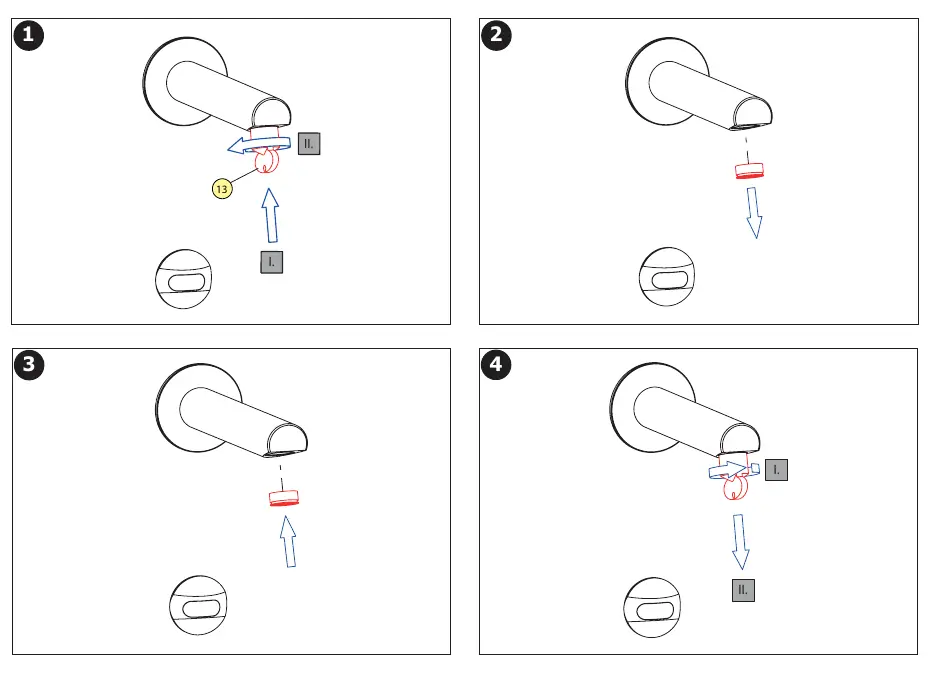

- Page 7: Aerator replacement procedure.
Model compatibility
- Requires SLD 03 remote control for parameter adjustments.
- Compatible with SLA 56A (3.8 l/min) and SLA 56B (1.9 l/min) economical aerators.
