User Guide for Sanela SLS 02P Piezo Shower Control
Comprehensive user guide for the Sanela SLS 02P Piezo Shower Control. Includes installation, electrical wiring, operation, and maintenance instructions.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Sanela SLS 02P is a piezo-controlled shower system designed for 24V DC operation. Crucial: The unit must be connected to a constant voltage power supply. Do not connect the power supply behind a light switch, as this will disrupt the unit's functionality. The installation must be performed on a vertical, smooth, and non-porous wall, and the stainless steel cover must be sealed with silicone to maintain the IP 53 protection rating.
Product Description
The SLS 02P is a piezo shower control with a mixer for cold and hot water. It is designed for vandal-resistant applications. The system includes a piezo button for start/stop operation and supports automatic stop and hygienic flush functions.
Installation
Before installation, ensure you have read the safety instructions. The installation process involves:
- Preparing the wall surface (must be smooth and non-porous).
- Installing the unit into the wall, ensuring the 0 mm depth requirement is met relative to the tiling.
- Connecting the water supply (hot and cold inlets) and the water outlet.
- Sealing the stainless steel cover with silicone sealant to ensure IP 53 protection.
Electrical Connection
The unit operates on 24V DC. It is essential to provide a constant power supply. Do not connect the power supply unit to a switched circuit (e.g., a light switch). Ensure all wiring is secure and protected.
Operation
The shower is operated via the piezo button:
- Start: Press the piezo button.
- Stop: Press the button again to stop, or the system will stop automatically after the preset time (factory setting is 120 seconds).
Settings
Parameters such as automatic stop duration, hygienic flush interval, and hygienic flush duration can be adjusted using the SLD 04 remote control. Factory settings are provided for reference, but these can be customized based on specific requirements.
Maintenance
Regular maintenance is recommended to ensure proper function. This includes checking the water supply pressure and ensuring the sieve (filter) is clean. The sieve dimension must be ≤ 90 µm. Keep the unit clean and ensure the silicone seal remains intact.
Technical Specifications
- Power Supply: 24V DC
- Water Pressure: 0.1 - 0.6 MPa
- Protection Rating: IP 53 (when properly sealed)
- Sieve Dimension: ≤ 90 µm
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Unit does not function or behaves erratically.
Ensure the power supply is connected to a constant 24V DC source and not a switched circuit (like a light switch).
Water flow is weak or inconsistent.
Check the water pressure (must be 0.1 - 0.6 MPa) and inspect the sieve for debris (must be ≤ 90 µm).
IP 53 protection not maintained.
Ensure the stainless steel cover is properly sealed with silicone sealant during installation.
Before use
- Verify water pressure is between 0.1 and 0.6 MPa.
- Ensure the power supply is 24V DC and provides constant voltage.
- Confirm the wall surface is vertical, smooth, and non-porous.
- Prepare silicone sealant for the cover installation.
- Check that the sieve mesh size is ≤ 90 µm.
Images and diagrams

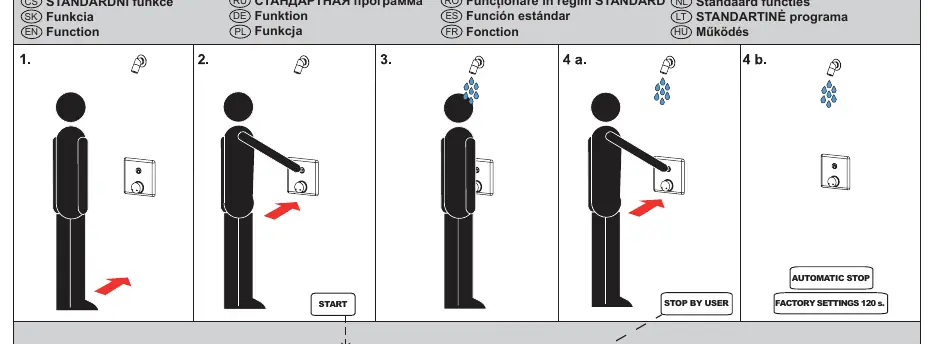

- Page 1: Overview of standard operation, factory settings, and technical requirements.

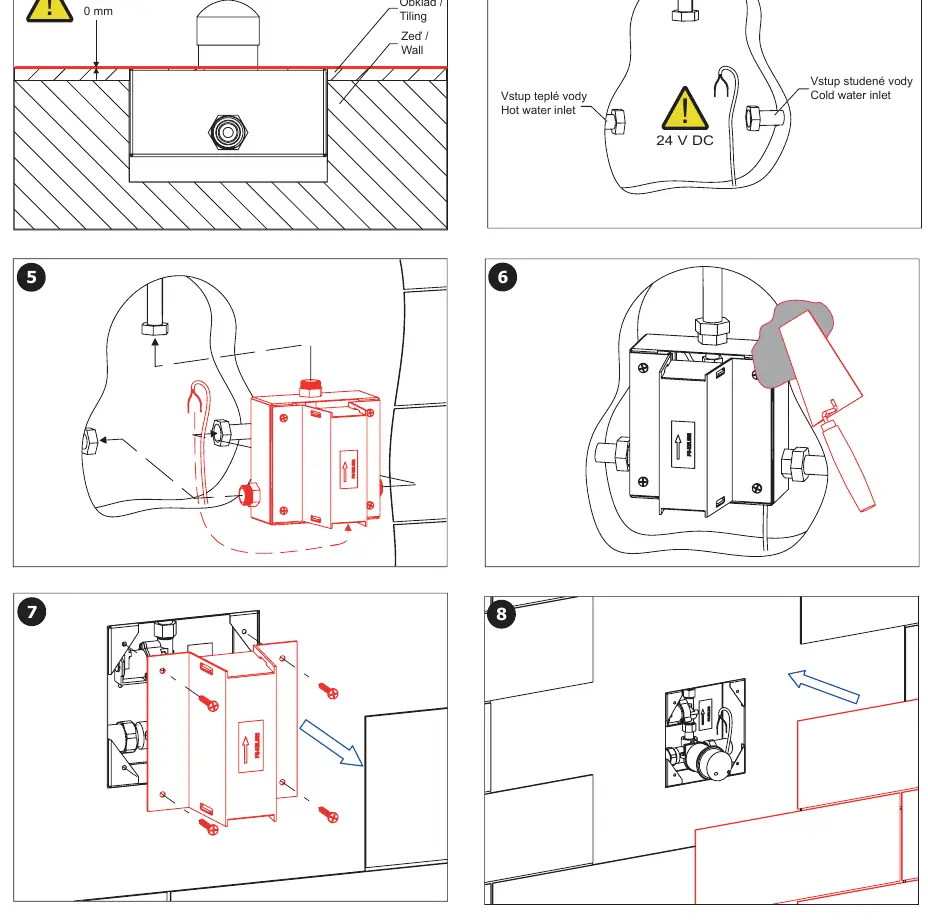

- Page 3: Installation steps including wall preparation and water inlet connections.

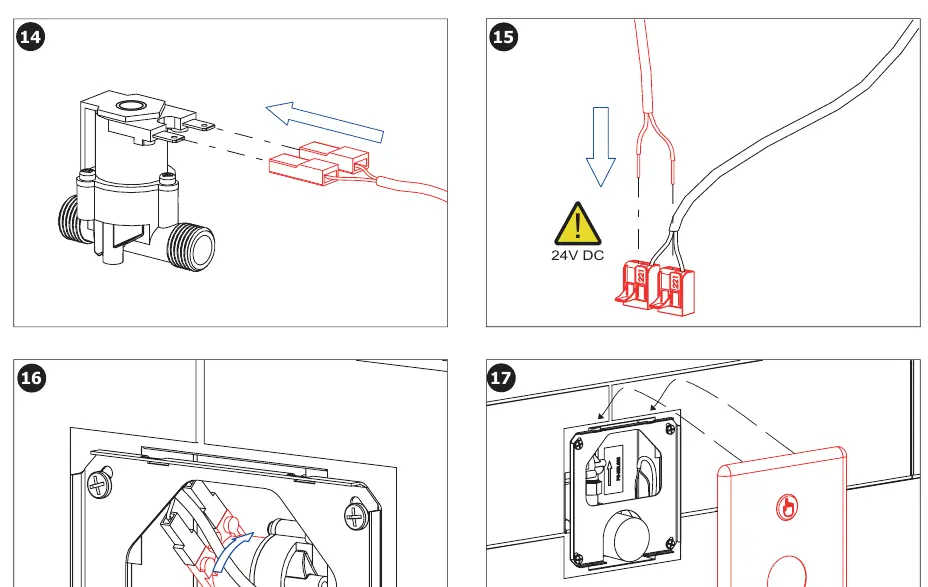

- Page 4: Electrical wiring and connection to the 24V DC power source.

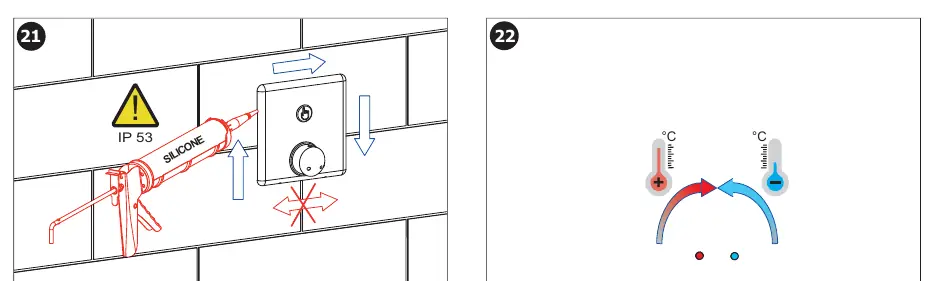

- Page 5: Final assembly, silicone sealing, and temperature adjustment.
Model compatibility
- Requires SLD 04 remote control for parameter adjustments.
- Compatible with SLZ series power supplies (24V DC).
