User Manual for Sanela SLS 02TAB Automatic Shower Control
Quick guide for the Sanela SLS 02TAB automatic shower control. Includes installation steps, wiring diagrams, parameter settings, and maintenance instructions.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Sanela SLS 02TAB is an automatic shower control system with a thermostatic mixer. This guide provides essential information for installation, wiring, and configuration. Ensure you have read the safety instructions before beginning the installation process. The system requires a water pressure between 0.1 and 0.6 MPa and a sieve dimension of ≤ 90 µm.
Installation
The installation must be performed by qualified personnel. Ensure the wall is prepared according to the dimensions provided in the manual. The tiling gap should be between 0 and 6 mm. Connect the hot and cold water supplies to the G 1/2" inlets. Secure the unit to the wall using the provided mounting hardware.
Wiring and Assembly
Follow the wiring diagram carefully to connect the solenoid valve and the battery pack. Ensure the polarity is correct when connecting the solenoid valve. Once wiring is complete, assemble the cover and ensure all seals are properly seated. Use silicone to seal the edges of the cover against the wall if necessary.
Operation
The shower operates automatically via infrared sensors. The system includes a start/stop function and a thermostatic mixer to maintain a set temperature (typically 38°C). The automatic stop function prevents excessive water usage.
Parameter Settings
Advanced settings, such as shower activation delay, time safety shut-off, and hygienic flush intervals, can be configured using the SLD 03 remote control. The remote allows you to adjust:
- Shower activation delay (0-15 s)
- Time safety shut-off (10-310 s)
- Hygienic flush interval (OFF / 6 / 8 / 12 / 24 / 48 / 72 / 168 h)
- Hygienic flush duration (5-1200 s)
Maintenance and Battery
The system is powered by batteries. Monitor the battery status via the LED indicator on the sensor. If the LED indicates low capacity, replace the batteries immediately to ensure continued operation. For maintenance, shut off the water supply using the integrated valves before servicing the unit.
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Shower does not activate
Check battery status. If the LED indicates 0% capacity, replace the batteries. Ensure the sensor area is clean and unobstructed.
Water temperature is incorrect
Adjust the thermostatic mixer manually. Ensure the hot and cold water supplies are correctly connected and pressurized.
Hygiene flush not occurring
Verify the hygiene flush settings using the SLD 03 remote control. Ensure the interval is not set to 'OFF'.
Before use
- Verify water pressure is between 0.1 and 0.6 MPa.
- Ensure the sieve dimension is ≤ 90 µm.
- Check that the wall tiling gap is within 0-6 mm.
- Ensure batteries are fresh and installed with correct polarity.
- Confirm all water connections are tight and leak-free.
Images and diagrams

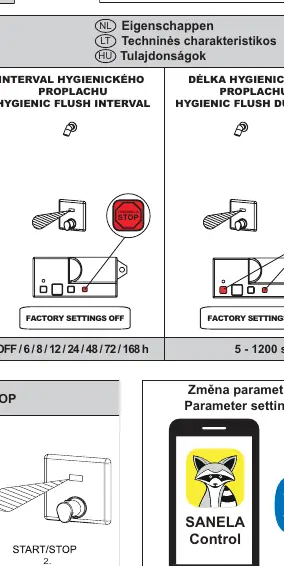

- Page 1: Parameter settings and remote control configuration.
- Page 3: Installation dimensions and wall preparation.

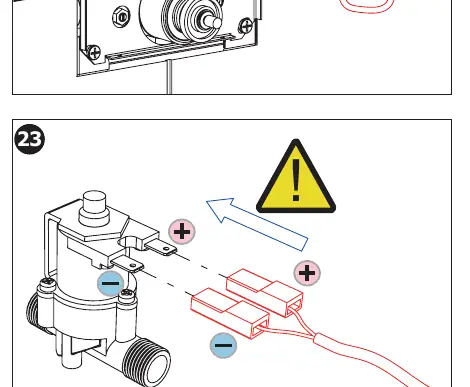

- Page 6: Wiring diagram for solenoid valve and battery.

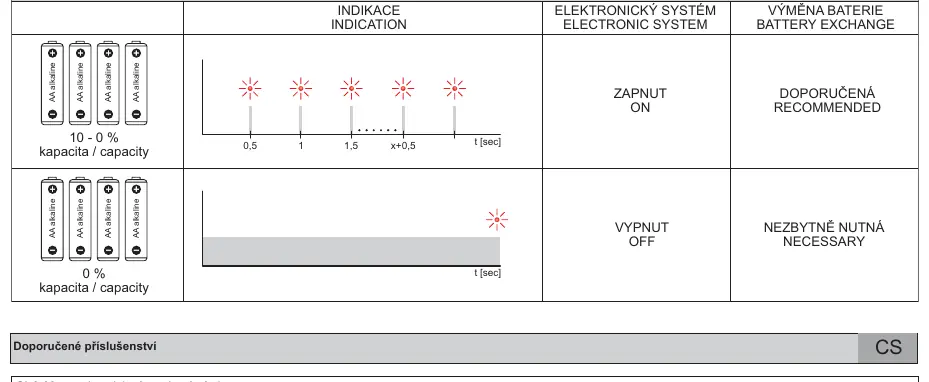

- Page 8: Battery status LED indicators.
Model compatibility
- Compatible with SLD 03 remote control for configuration.
- Uses standard AA alkaline batteries.
