User manual for Sanela SLS 02B automatic shower control
Quick guide for the Sanela SLS 02B automatic shower control. Includes installation steps, plumbing connections, battery setup, and configuration settings for optimal performance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Sanela SLS 02B is an automatic shower control system powered by 6V batteries. Key installation requirements include mounting on a vertical, smooth, and non-porous wall and ensuring the stainless steel cover is sealed with silicone to maintain IP 53 protection. Advanced settings, such as hygiene flush intervals and sensor distance, can be adjusted using the optional SLD 03 remote control.
Installation
Installation must be performed by qualified personnel. Follow these steps:
- Preparation: Ensure the wall surface is flat and non-porous.
- Plumbing: Connect the hot and cold water supplies to the designated inlets. Ensure the water pressure is between 0.1 and 0.6 MPa.
- Mounting: Secure the control unit to the wall. Refer to the dimension diagrams for precise spacing.
- Sealing: It is mandatory to seal the stainless steel cover with silicone sealant during installation to ensure IP 53 protection.
- Battery Installation: Insert the 1.5V AA batteries into the battery pack and connect it to the control unit.
Settings and Operation
The system operates automatically via infrared sensors. Default factory settings are configured for standard use, but can be modified:
- Sensor Range: Adjustable between 0.3 and 0.7 meters.
- Shower Activation Delay: Factory setting is 2 seconds (adjustable 0-15s).
- Time Safety Shut-off: Factory setting is 300 seconds (adjustable 10-310s).
- Hygiene Flush: Can be configured for specific intervals (OFF/6/8/12/24/48/72/168 hours) and durations (5-1200 seconds).
Note: Advanced configuration requires the SLD 03 universal remote control.
Maintenance
Regular maintenance ensures longevity:

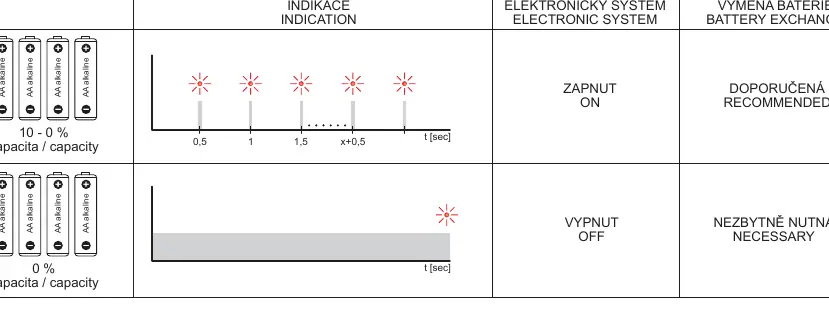

- Battery Check: Monitor the battery status. If the indicator shows 0% capacity, replace the batteries immediately.
- Cleaning: Keep the sensor area clean to ensure accurate detection.
Compliance and Support
The product complies with IP 53 standards only when installed according to the instructions, specifically regarding the silicone seal. For technical support, service interventions, or fault resolution, contact your installation company or visit www.sanela.eu/service.
Official resources from the manual
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Water does not flow
Check battery status and replace if necessary. Ensure the sensor is not obstructed.
Sensor not detecting user
Verify the sensor range setting (0.3 - 0.7 m) and ensure the sensor lens is clean.
IP 53 protection failure
Ensure the stainless steel cover is properly sealed with silicone sealant around the perimeter.
Before use
- Verify wall is vertical, smooth, and non-porous.
- Ensure water supply pressure is between 0.1 and 0.6 MPa.
- Install 1.5V AA batteries.
- Apply silicone sealant around the cover during installation.
- Check that all plumbing connections are tight and leak-free.
Images and diagrams
- Page 3 provides detailed dimensions and plumbing connection points for hot and cold water.

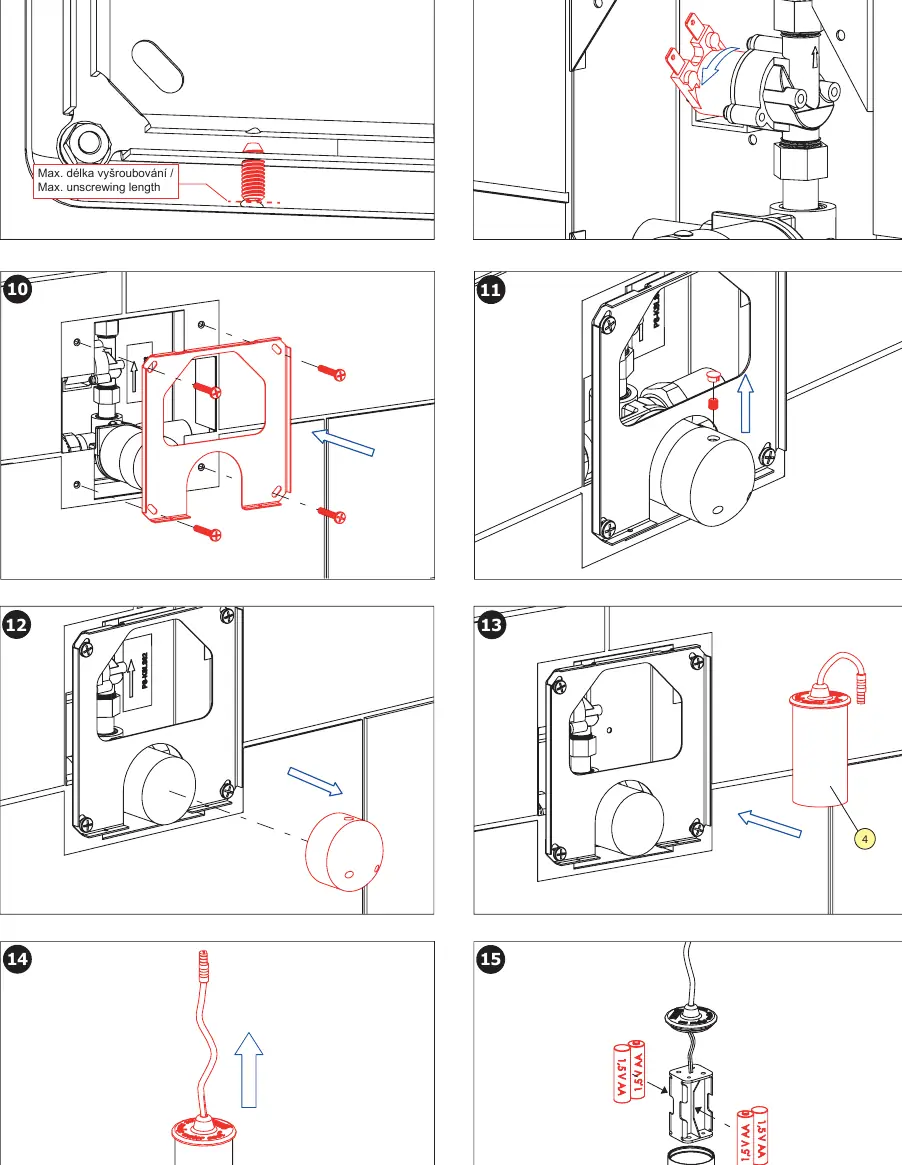

- Page 4 and 5 illustrate the step-by-step installation of the control unit and battery pack.
- Page 6 shows the mandatory silicone sealing procedure for IP 53 compliance.
Model compatibility
- Compatible with SLD 03 universal remote control for advanced sensor settings.
- Compatible with various vandal-proof shower heads (SLA 03, SLA 13, SLA 14, SLA 39, SLA 40).
