User Manual for Sanela SLS 03SB Wall-Mounted Shower Control
Quick guide for the Sanela SLS 03SB wall-mounted shower control. Includes installation steps, sensor settings, battery replacement, and maintenance instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Sanela SLS 03SB is a wall-mounted shower control with a thermostatic mixer. It operates on a 9V battery. Key requirements include a water pressure of 0.1 - 0.6 MPa and a sieve dimension of ≤ 90 µm. Installation requires 150mm spacing for hot and cold water connections.
Installation
Follow these steps for installation:
- Prepare the wall with hot and cold water connections spaced 150mm apart (G 1/2").
- Install the connection fittings.
- Attach the decorative covers.
- Mount the shower control unit to the wall.
- Connect the shower hose to the bottom outlet.
- Insert the 9V (U9VL) battery.
- Secure the unit and test functionality.
Operation
The shower control operates automatically via an infrared sensor. The sensor range is adjustable between 0.3 and 0.75 meters. You can also use the Start/Stop function manually.
Settings and Configuration
Parameters such as sensor range, hygienic flush interval, and time safety shut-off can be configured. The SLD 03 remote control is recommended for adjusting these settings.
Battery Replacement

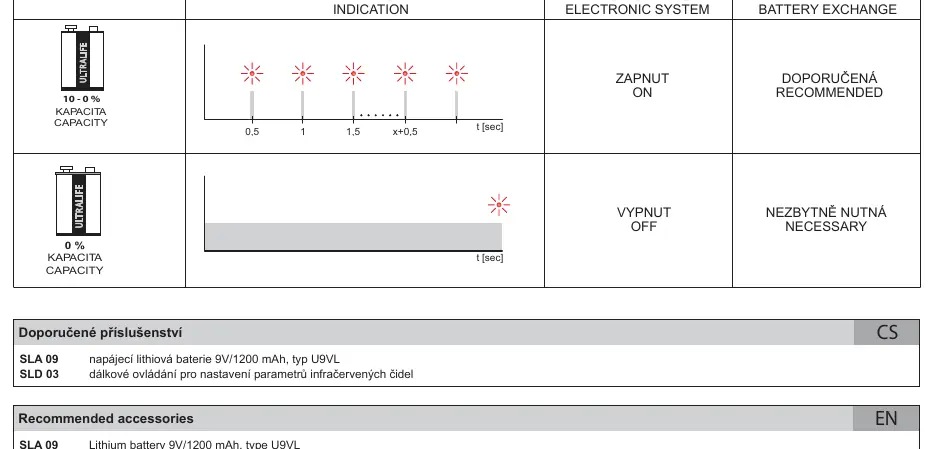

The system indicates battery status via the LED indicator. If the battery capacity is 0%, replacement is necessary. Use a 9V (U9VL) lithium battery.
Maintenance
Regular maintenance is recommended. Ensure the sieve is clean (≤ 90 µm). For technical support or service, contact the installation company or visit the manufacturer's website.
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Battery low
Replace the 9V (U9VL) lithium battery.
Sensor not activating
Check the sensor range (0.3 - 0.75m) and ensure the battery is not depleted.
Before use
- Ensure water pressure is between 0.1 - 0.6 MPa.
- Check that sieve dimension is ≤ 90 µm.
- Verify 9V battery is installed.
- Ensure 150mm spacing for hot/cold water connections.
Specs in practice
- Sieve dimension
- Must be ≤ 90 µm to prevent clogging.
Images and diagrams

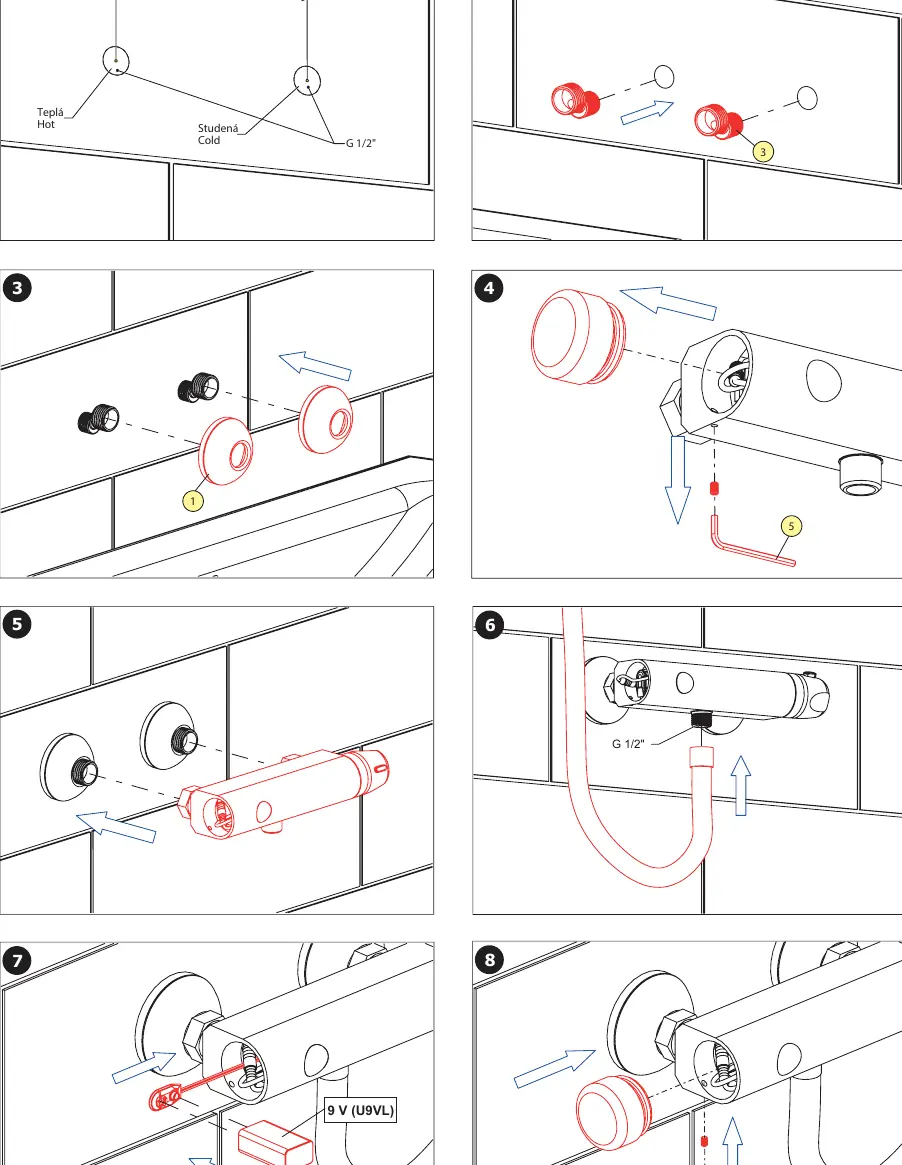

- Installation steps 1-8 show the mounting process on the wall.

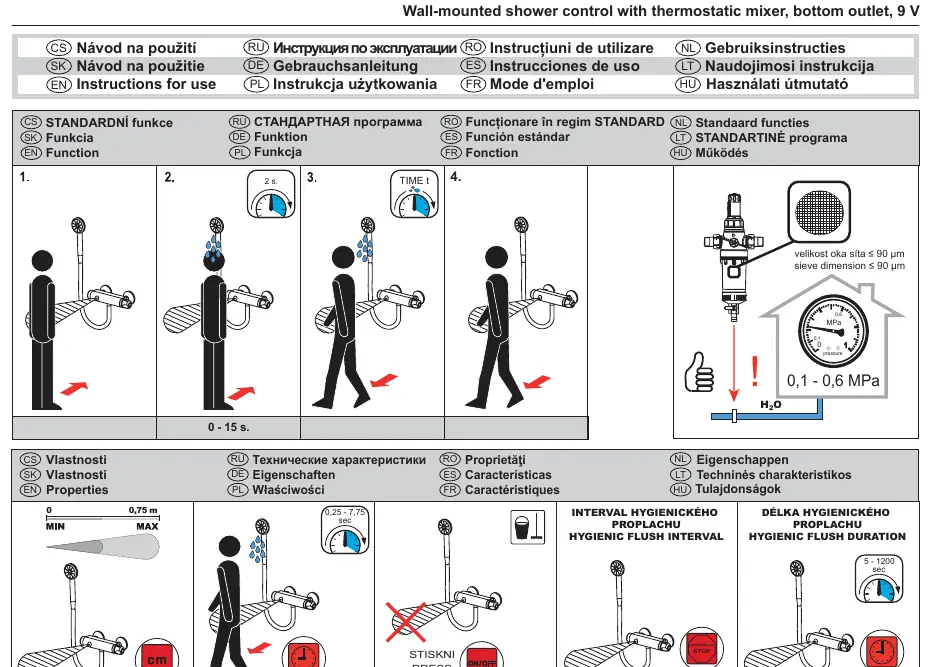

- Page 1 diagrams illustrate sensor range, hygienic flush settings, and time safety shut-off.
Model compatibility
- Requires G 1/2" connections.
- Compatible with SLD 03 remote control for parameter settings.
