Installation and User Guide for Sanela SLZA 02LM/02LN Shower Timer
Quick guide for the Sanela SLZA 02LM and SLZA 02LN coin and token shower timers. Includes installation steps, wiring diagrams, power requirements, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

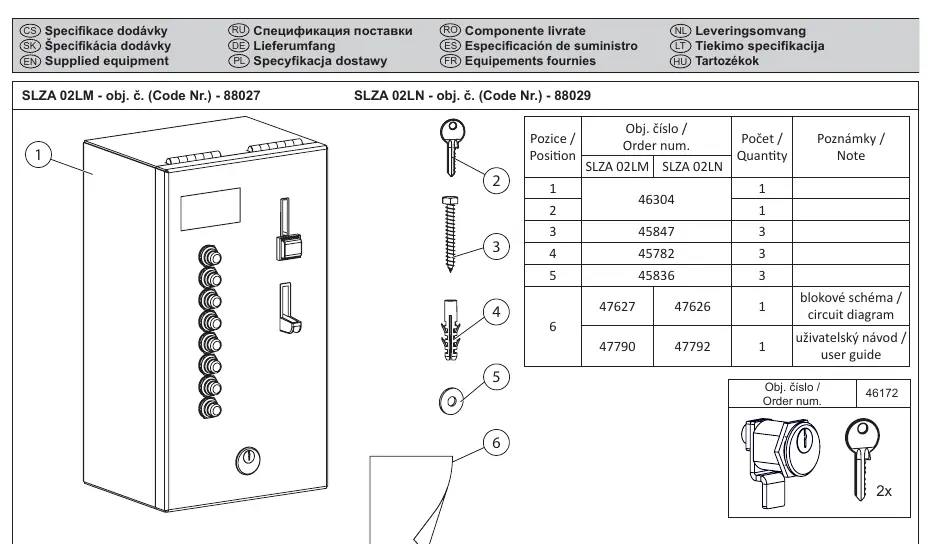

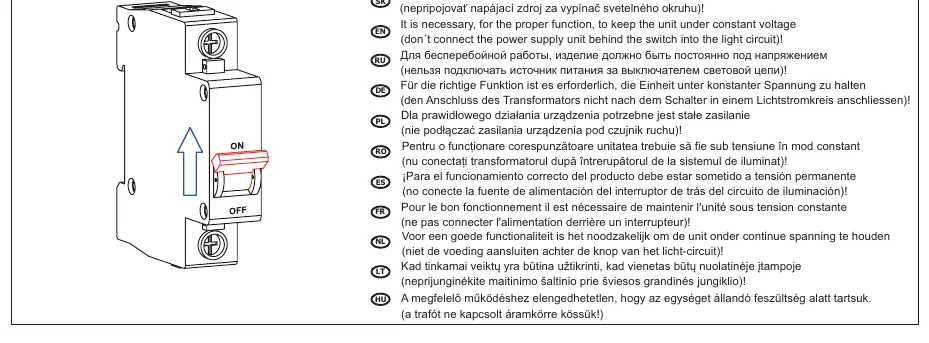

The Sanela SLZA 02LM and SLZA 02LN are coin and token-operated shower timers designed to control four to eight showers. Crucial Warning: For proper function, the unit must be kept under constant voltage. Do not connect the power supply unit behind a switch in the light circuit, as this will disrupt operation.
Installation

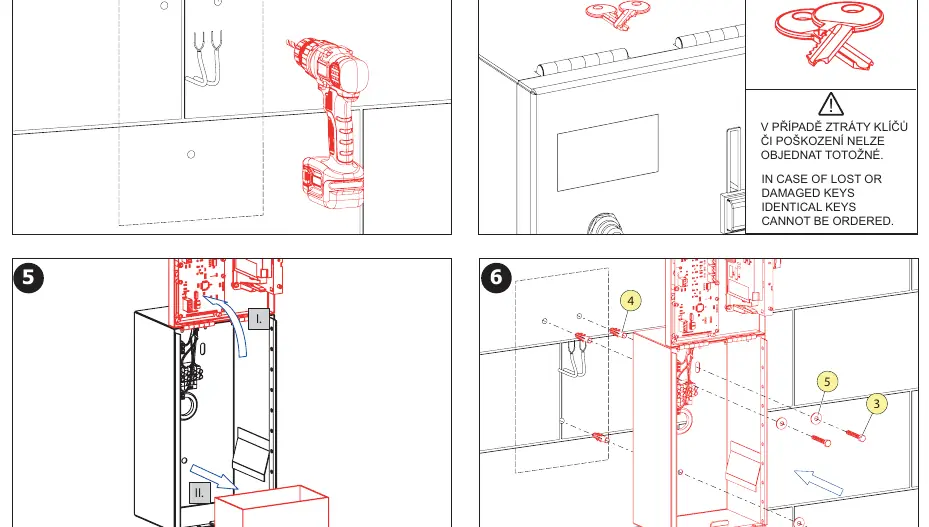

Before installation, ensure you have read the attached safety instructions. The installation process involves the following steps:
- Prepare the wall surface according to the dimensions provided (165 mm x 300 mm).
- Drill holes (8 mm diameter) as indicated in the mounting template.
- Secure the unit to the wall using the provided mounting hardware.
- Connect the power supply and control wiring according to the circuit diagram.
- Ensure the unit is properly grounded and the power supply is stable at 24V DC.
Wiring and Connections

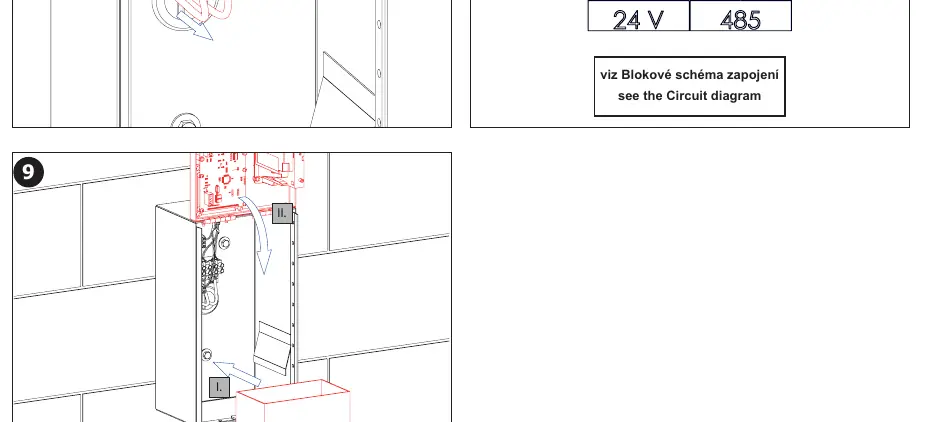

The unit requires a 24V DC power supply. Refer to the circuit diagram on page 3 for specific terminal connections. The terminal block includes connections for 24V power (+ and -) and the 485 bus communication line (A and B). Ensure all connections are secure before powering on the system.
Maintenance and Keys
The unit is secured with a key lock. Important: In case of lost or damaged keys, identical keys cannot be ordered. Keep the keys in a safe place. Regular maintenance is recommended according to the manufacturer's guidelines available at www.sanela.eu/service-download.
Accessories
The system requires specific accessories for operation, including valves and shower panels. Recommended accessories include:
- Power Supplies: SLZ 01Y (max 5 showers), SLZ 01Z (max 9 showers), and DIN rail versions (SLZ 04Y, 04Z, 04X).
- Control: SLD 05 remote control for parameter adjustment.
- Shower Heads: SLA 03, SLA 39, and SLA 40 (vandal-proof).
- Tokens: SLZA 50 (set of 50 tokens).
Official resources from the manual
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Unit not functioning correctly
Ensure the unit is under constant voltage and not connected behind a light switch.
Lost keys
Identical keys cannot be ordered; keep keys in a secure location.
Before use
- Verify 24V DC power supply is available.
- Ensure the installation surface is flat and suitable for mounting.
- Check that all required accessories (valves, shower panels) are compatible.
- Read the attached safety instructions thoroughly.
Images and diagrams
- The circuit diagram shows the terminal block layout for 24V power input and 485 bus communication.
- Mounting diagram indicates the required spacing and drilling points for the unit.
Model compatibility
- Requires specific Sanela shower panels and valves (e.g., SLZA 20, SLZA 21 series).
- Compatible with Sanela coin/token systems.
