Installation Guide for Schneider Electric Mureva IP65 Enclosure
A comprehensive installation guide for the Schneider Electric Mureva IP65 electrical enclosure. Includes mounting instructions, wiring specifications, accessory installation, and essential safety requirements for qualified electricians.
Quick answers from the manual
Quick answer
- The Mureva IP65 is an electrical enclosure. Installation must be performed by a qualified electrician using PZ2/PH2/5mm tools and cut-resistant gloves. Ensure the door gap is less than 1 mm for IP65 compliance. p. 1, 3, 4
Key actions
- Mounting the enclosure p. 1
- Installing terminal blocks p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated insulation voltage | 750 V | Maximum voltage rating | p. 2 |
Where to find it in the PDF
- Mounting and Dimensions p. 1
- Wiring and Accessories p. 2
- Door Installation p. 3
- Safety Warnings p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Schneider Electric Mureva IP65 is an electrical enclosure designed for professional installation. Important: Installation must be performed exclusively by qualified electricians. Protective equipment, specifically cut-resistant gloves, must be worn during installation.

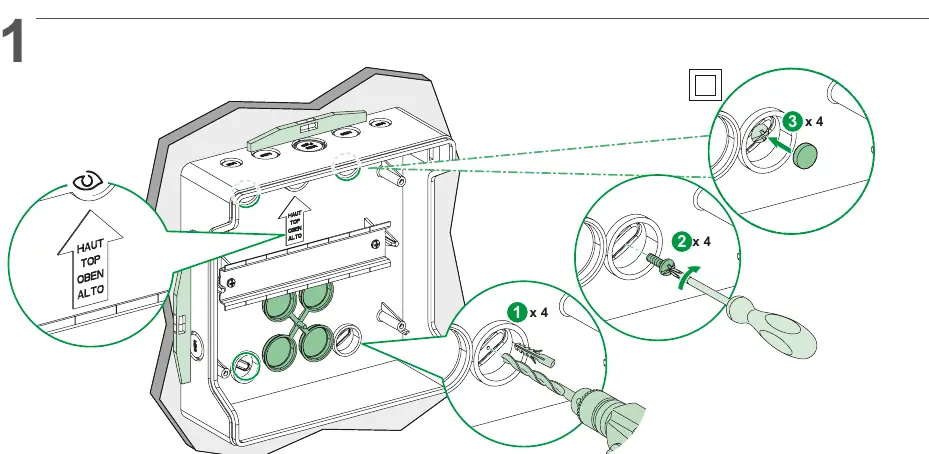

Mounting and Installation
The enclosure is designed for wall mounting. Ensure you have the following tools before starting:
- PZ2 and PH2 screwdrivers
- 5 mm screwdriver
- Spirit level
Follow the mounting sequence provided in the manual (Step 1):
- Mark the mounting positions on the wall.
- Secure the enclosure base to the wall using the provided mounting points.
- Ensure the enclosure is level.

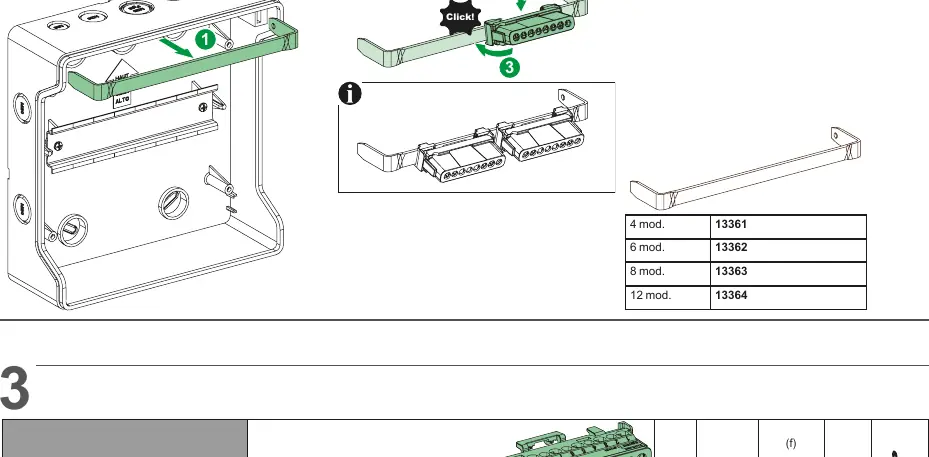

Wiring and Accessories
The enclosure supports various terminal block configurations. When installing terminal blocks:
- Ensure the terminal block clicks securely into place.
- Tighten connections to a torque of 2 N.m.
- Use appropriate wire gauges (0.5 to 16 mm² depending on the specific terminal block model).
- Strip wires to a length of 11-12 mm.

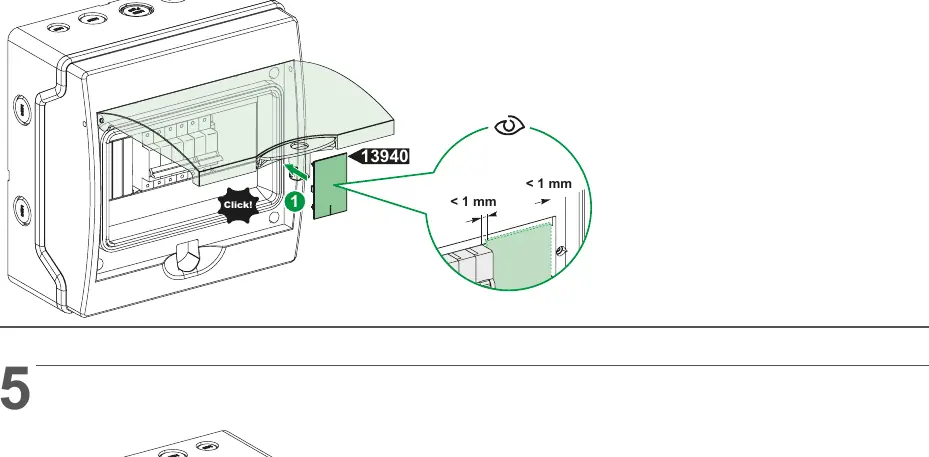

Door Installation
The door can be installed after the base is mounted and wired:
- Align the door hinges with the enclosure base.
- Snap the door into place until you hear a click.
- Ensure the gap between the door and the frame is less than 1 mm for proper IP65 sealing.
Technical Specifications
- Rated insulation voltage (Ui): 750 V
- Ingress Protection: IP65
- Standards: IEC 61439-3, EN 61439-3 § 8.4.4
Manufacturer information
Schneider Electric
Practical help
Common problems
Door not sealing properly
Ensure the gap between the door and the frame is less than 1 mm.
Terminal block not secure
Ensure the block is fully clicked into the mounting rail.
Before use
- Verify that the installer is a qualified electrician.
- Wear cut-resistant gloves.
- Ensure you have PZ2, PH2, and 5 mm screwdrivers.
- Check the wall surface for suitability.
- Verify the module configuration (3, 4, 6, 8, or 12 mod).
Specs in practice
- Rated insulation voltage (Ui)
- The maximum voltage the insulation can withstand (750 V).
Images and diagrams
- Page 1: Mounting dimensions and wall attachment steps.
- Page 2: Terminal block installation and wiring torque specifications.
- Page 3: Door installation and sealing gap verification.
Model compatibility
- Compatible with 3, 4, 6, 8, and 12 module configurations.
