Smart Home / Smart Plugs & Strips
ELKO Wifer SmartPlug 16A
Quick start guide for the ELKO Wifer SmartPlug 16A. Learn about installation, safety warnings, load limits, and technical specifications for this Zigbee-enabled smart plug.
Table of contents
Quick guide from the manual
The ELKO Wifer SmartPlug 16A is a Zigbee 3.0 certified smart plug designed for remote control and power monitoring of connected electrical loads. It is intended for indoor use only and features a built-in temperature protection mechanism that may switch off the socket if the device is used with high loads over an extended period.
Installation
The device must be connected to a mains socket outlet with a protective earthing connection. To disconnect the plug from the power supply, pull it out of the socket outlet or turn off the fuse in the incoming circuit.
Operating elements
- A: Status LED
- B: Operation button
Important limitations
- Do not connect devices that depend on a permanent power supply.
- Do not mix different load types in the controlled socket.
- Do not use multi-sockets in the controlled socket.
- Do not use for EV charging.
- The plug must be used indoors only.
Technical data
Nominal voltage: 230 V AC, 50 HzNominal current: 16 AStandby power: max. 0.5 WOperating temperature: 0 to 35 °CCommunication protocol: Zigbee 3.0 certifiedIP rating: IP20Operating frequency: 2405 to 2480 MHz
Cybersecurity and support
For complete information about the device, including operation, configuration, and pairing with a Wiser system, scan the QR code provided in the full user guide. General cybersecurity information is available via the Schneider Electric Cybersecurity Portal.
Manufacturer information
Schneider Electric
Practical help
Common problems
Device turns off unexpectedly
The built-in temperature protection mechanism may have triggered due to high load over a long period.
Cannot connect to Wiser system
Ensure the device is within range and follow the pairing instructions in the full online user guide.
Before use
- Ensure the wall socket has a protective earthing connection.
- Verify the device is for indoor use only.
- Check that the load does not exceed 16A.
- Do not use multi-sockets or extension leads with this device.
- Ensure the device is not used for EV charging.
Specs in practice
- Nominal current 16A
- The maximum current the plug can handle safely.

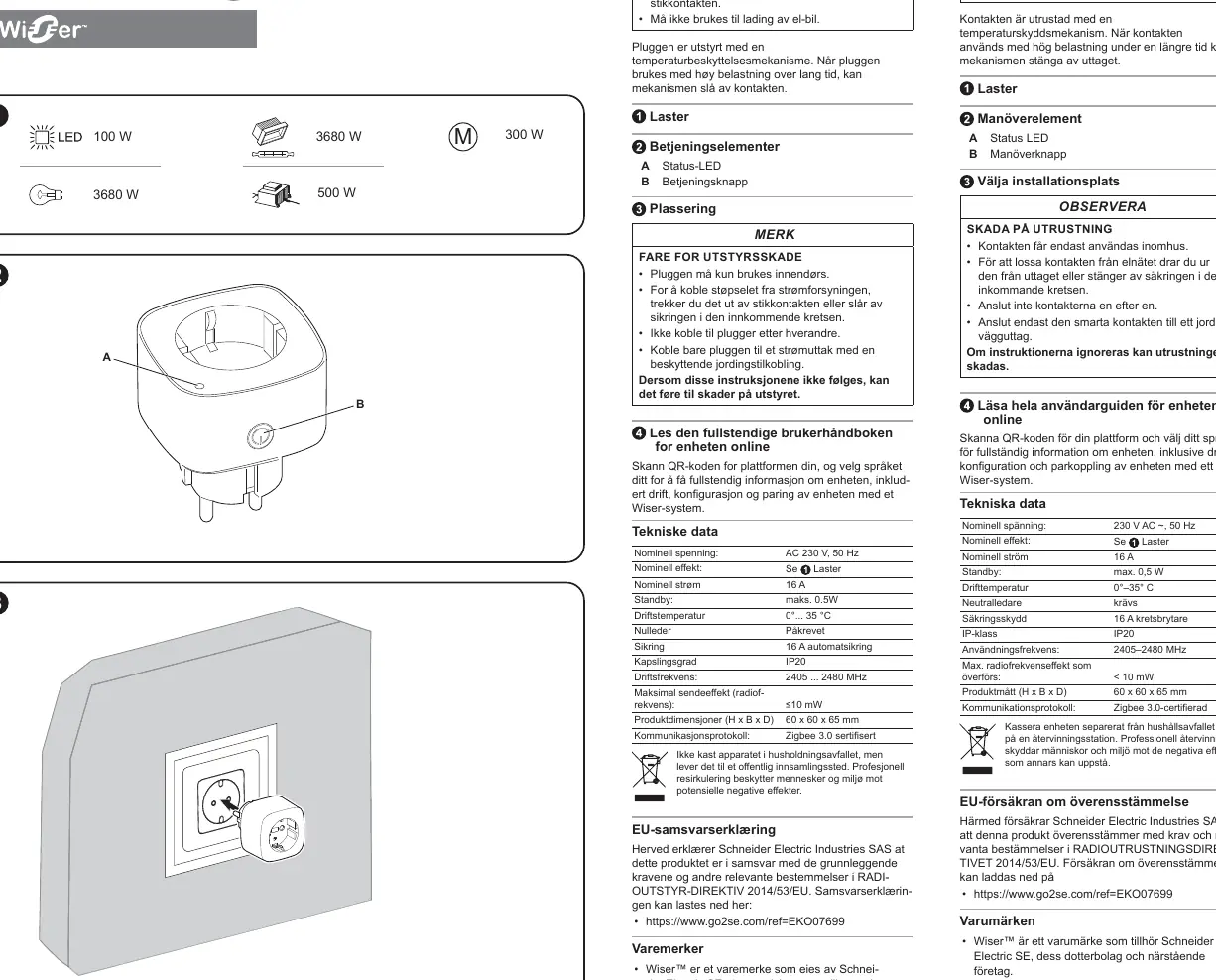

Images and diagrams
- 1: Load icons indicating supported power types and limits.
- 2: Operating elements showing the Status LED (A) and Operation button (B).
- 3: Installation diagram showing the plug connected to a wall socket.
- 4: QR codes for Wiser Home and ELKO Smart app setup.
Model compatibility
- Requires a neutral conductor in the installation.
- Compatible with Wiser systems.
- Zigbee 3.0 certified.
