Parts List for Sealey Premier Straight Air Drill 10mm SA622.V2
Access the official parts list and exploded view diagram for the Sealey Premier Straight Air Drill 10mm (Model SA622.V2). Identify components for maintenance and repair.
Table of contents
Parts Information and Overview
This document provides the official parts breakdown for the Sealey Premier Straight Air Drill 10mm (Model SA622.V2). It includes an exploded view diagram and a comprehensive list of components to assist with identification and maintenance.

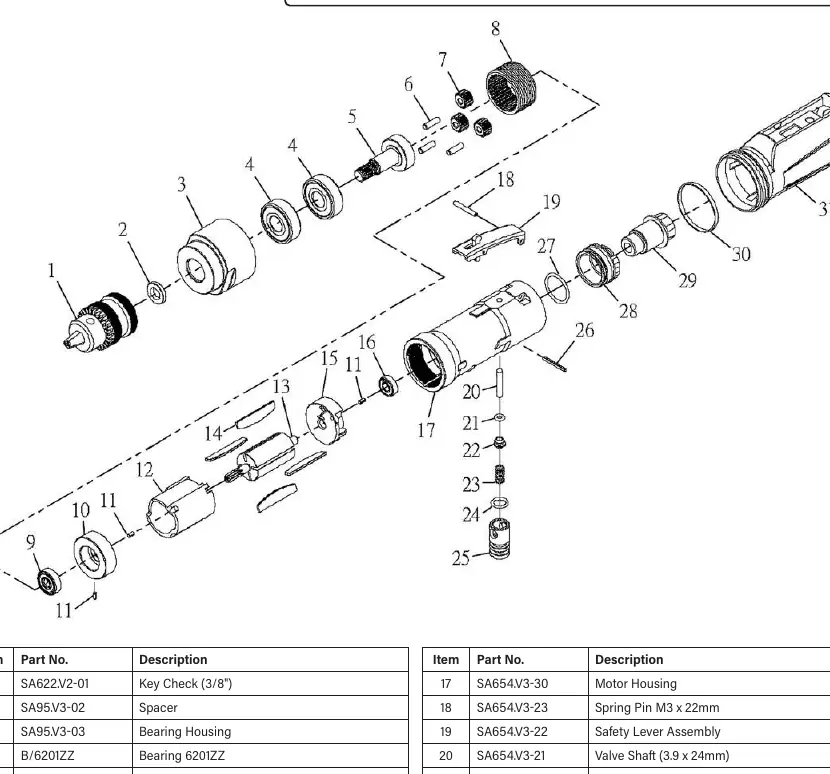

Parts Breakdown and Exploded View
The exploded view illustrates the internal assembly of the air drill, including the motor housing, rotor, bearings, and valve assembly. Use the item numbers in the diagram to locate the corresponding part numbers in the table below. The list covers 31 distinct components, ranging from the key check and bearings to the motor housing and seals.
Important Safety and Maintenance
Important: No liability is accepted for incorrect use of the product. Spare parts must be fitted by a competent person to ensure safety and proper functionality. The product is covered by a 12-month guarantee from the date of purchase, for which proof of purchase will be required for any claim.
Contact Information
For further assistance or to order spare parts, contact Sealey Group:
Jack Sealey Ltd, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk, IP32 7AR UKJack Sealey (EU) Ltd, Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 IrelandTel: 01284 757500Email: [email protected]: www.sealey.co.uk
Official resources from the manual
Manufacturer information
Sealey Group
Practical help
Common problems
Incorrect product operation
No liability is accepted for incorrect use; ensure the tool is operated according to standard pneumatic tool safety practices.
Need for replacement parts
Spare parts must be fitted by a competent person. Identify the specific part number from the exploded view list before ordering.
Before use
- Verify the model number is SA622.V2
- Ensure you have the correct part number from the list before ordering replacements
- Check if the tool requires maintenance by a competent person
Specs in practice
- Keyless Chuck
- Allows for tool-free bit changes
Images and diagrams
- The exploded view shows the assembly order of internal components including the rotor, bearings, and valve assembly.
- Items 1-31 correspond to the specific part numbers listed in the table.
Model compatibility
- This parts list is specific to model SA622.V2.
- There may be alternative versions of this product; contact Sealey if you require information on other versions.
