Operating Instructions for Siemens SIMOTICS XP 1MB1.33 Low-Voltage Motors
Comprehensive operating instructions for Siemens SIMOTICS XP 1MB1.33 low-voltage motors. This guide covers safety, installation, commissioning, operation, maintenance, and technical specifications for shaft heights 71 to 315.
Quick answers from the manual
Quick answer
- The Siemens SIMOTICS XP 1MB1.33 is a low-voltage motor designed for industrial applications. This manual provides instructions for installation, commissioning, operation, and maintenance, including specific safety requirements for hazardous zones. p. 1, 11
Key actions
- Follow the 5 safety rules before any work. p. 20
- Measure insulation resistance before commissioning. p. 68, 70
First start
- Perform a test run without load to verify smooth operation. p. 109, 111
Problems and fixes
Motor fails to start
Check for overload, interrupted phases, or incorrect winding connection.
p. 122Maintenance and reset
- Re-grease bearings according to the lubricant plate. p. 130, 132
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Tightening torque (M8) | 20 Nm | Required torque for M8 bolted connections. | p. 169 |
Where to find it in the PDF
- Safety information p. 17, 28
- Installation p. 30, 44
- Maintenance p. 123, 144
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential instructions for the safe handling, installation, and maintenance of Siemens SIMOTICS XP 1MB1.33 low-voltage motors. Before starting, ensure you have read the safety information and that the motor is suitable for your specific application and hazardous zone requirements.
Safety information
Qualified personnel are required for all tasks. Always follow the 5 safety rules:
- Disconnect the system.
- Secure against reconnection.
- Verify absence of operating voltage.
- Ground and short-circuit.
- Provide protection against adjacent live parts.
Special attention is required for hazardous areas. Ensure the motor is used only in zones for which it is certified (check the rating plate). Avoid electrostatic discharge by following ESD protective measures.
Installation and assembly
Proper installation is critical for safe operation:
- Cooling: Ensure adequate ventilation. Do not obstruct air intake.
- Alignment: Precisely align the motor with the driven machine to avoid bearing damage.
- Electrical connection: Use certified cable entries and ensure proper grounding. Follow the circuit diagram inside the terminal box cover.
- Rotor shipping brace: Remove the rotor shipping brace only when ready to mount the output element.
Commissioning
Before starting the motor:
- Check that the machine is undamaged and properly aligned.
- Measure the insulation resistance of the winding.
- Ensure the cooling system is operational.
- Perform a test run without load to check for smooth operation and correct direction of rotation.
Operation
During operation, monitor for abnormal noise, vibration, or temperature rises. If the anti-condensation heating is used, it must be interlocked to switch off when the motor is running. In case of an emergency stop, eliminate the cause before restarting.
Maintenance
Regular maintenance is essential for a long service life:
- Inspection: Perform a first inspection after 500 operating hours.
- Re-greasing: Follow the intervals and grease types specified on the lubricant plate.
- Cleaning: Keep cooling air ducts clean. Do not use compressed air on sealing elements.
- Corrective maintenance: Only use original spare parts. Repairs to explosion-proof machines must be performed by authorized personnel.
Technical data
Refer to the rating plate for specific motor data. Tightening torques for bolted connections are provided in the technical data section (e.g., M5 to M24).
Manufacturer information
Siemens AG
Practical help
Common problems
Motor fails to start or accelerates sluggishly
Check for overload, interrupted phases in the supply cable, or incorrect stator winding connection.
High temperature rise
Check for overload, incorrect voltage/frequency, or blocked cooling air ducts.
Abnormal noise or vibration
Check alignment, balance of the drive output element, or foundation stability.
Bearing overheating
Check lubrication, coupling pressure, or bearing play. Contact service if necessary.
Before use
- Check delivery for completeness and damage.
- Measure insulation resistance of the winding.
- Ensure the assembly area is stable and clear.
- Remove rotor shipping brace if present.
- Verify correct direction of rotation.
- Ensure all electrical connections are tightened to specified torques.
Specs in practice
- Shaft height
- Determines the physical size and mounting dimensions of the motor (71 to 315).
- Degree of protection (IP)
- Indicates the level of protection against dust and water (e.g., IP55, IP65).
- Tightening torque
- Required force for bolts to ensure secure connection without damaging components.
Images and diagrams
- Exploded views of the motor assembly show the location of bearings, seals, and fans.

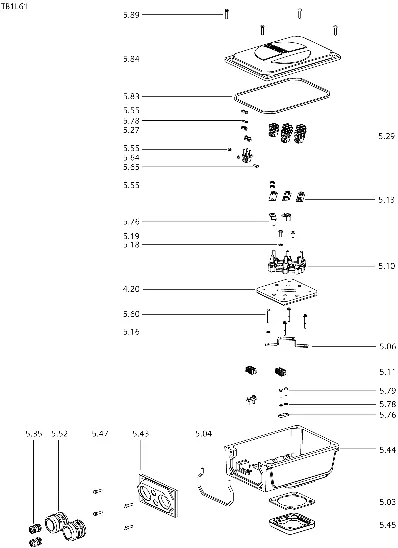

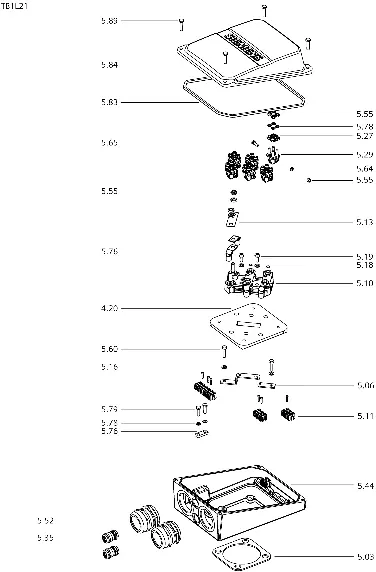

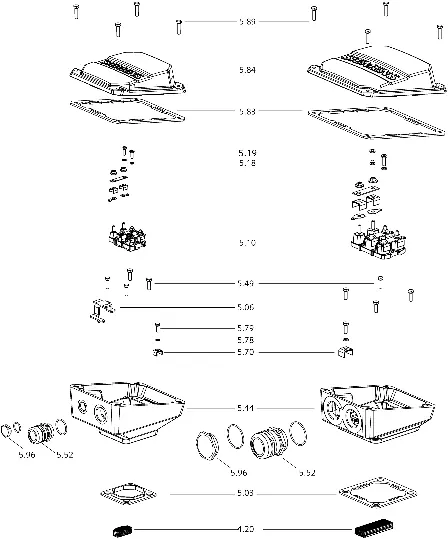

- Terminal box diagrams illustrate the arrangement of terminals and cable entries.
Model compatibility
- Motors must be used in hazardous zones only if explicitly permitted by the rating plate.
- Converter operation requires specific certification and parameterization.
- Use only original Siemens spare parts for explosion-proof machines.
