Owner's Manual for SKIL PWRCORE 20V Spot Light LH552301
Quick guide for the SKIL PWRCORE 20V Spot Light (Model LH552301). Learn how to operate, adjust the pivoting head, use the hanging features, and maintain your tool.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The SKIL PWRCORE 20V Spot Light (LH552301) is a cordless work light designed for versatility. It features a 104° pivoting head, two-stage brightness settings, and integrated magnets and a hanging loop for hands-free operation. Always ensure the battery is charged and the tool is inspected for damage before use.
Product Overview

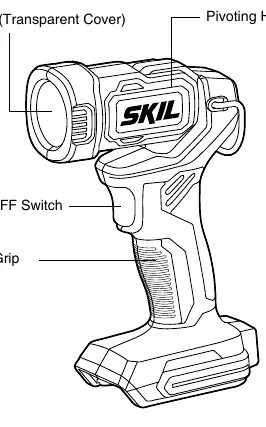

The tool consists of a lens (transparent cover), an ON/OFF switch, a soft grip handle, a pivoting head, and a base containing the battery interface, hanging loop, and magnets.
Operating Instructions
Battery Attachment and Detachment
- To attach: Align the raised rib on the battery pack with the grooves on the tool and slide the battery pack onto the tool until it snaps into place.
- To detach: Depress the battery-release button on the front of the battery pack and pull the pack out of the tool.
Brightness Adjustment
The tool features two brightness modes controlled by the ON/OFF switch:
- High mode: Press the ON/OFF switch once.
- Low mode: Press the ON/OFF switch a second time.
- Off: Press the ON/OFF switch a third time.
Pivoting Head
The light head can be manually pivoted up to 104° for flexible lighting angles. Do not force the head beyond this range.
Mounting Options
- Hanging Loop: Use the integrated loop to hang the light from suitable objects.
- Magnets: Attach the light to ferromagnetic surfaces using the integrated magnets.
Warning: When hanging the light, ensure it is secure. Do not hang the light from electrical wires or unstable objects. Do not shake the light while it is hanging.
Maintenance and Cleaning
- Cleaning: Use compressed dry air to clean ventilation openings. Do not use pointed objects. Avoid using solvents like gasoline, carbon tetrachloride, or ammonia-based detergents, as they can damage plastic parts.
- Storage: Store the tool indoors in a place inaccessible to children and away from corrosive agents.
- Service: Always remove the battery before performing maintenance. Use only identical replacement parts.
Troubleshooting
If the spot light does not illuminate, check the following:
- Ensure the battery is charged.
- Verify the battery pack is installed properly.
- If the switch is faulty, contact an authorized SKIL Service Center.
Manufacturer information
SKIL
Practical help
Common problems
Spot light does not illuminate
Check if the battery is depleted, ensure it is installed properly, or contact a service center if the switch is faulty.
Before use
- Ensure the battery is fully charged.
- Inspect the tool for damaged or missing parts.
- Wear safety goggles.
- Ensure the switch is in the OFF position before inserting the battery.
Specs in practice
- Rated voltage
- 20V d.c. - requires compatible SKIL PWRCORE 20 battery.
- Head pivot range
- 0~104° - allows for adjustable lighting angles.
- Recommended working temperature
- 14 ~ 104°F (-10° ~ 40°C).
Images and diagrams
- Fig 1: Overview of the spot light components.
- Fig 2: Battery attachment and detachment procedure.
- Fig 3: Two-stage brightness control via the ON/OFF switch.
- Fig 4: Pivoting head adjustment range.
- Fig 5a/5b: Using the hanging loop and magnets for placement.
Model compatibility
- Use only with specified SKIL battery packs (2Ah, 2.5Ah, 4Ah, 5Ah) and chargers (SC535801, QC536001).
