Installation Manual for Stoves 100CM Chimney Cooker Hood
A comprehensive installation guide for the Stoves 100CM chimney cooker hood. This manual covers safety requirements, parts identification, mounting procedures, ducting setup, and filter installation.
Table of contents
Manual images
Click an image to enlargeQuick Installation Guide
This document provides instructions for installing the Stoves 100CM chimney cooker hood. Before beginning, ensure you have read the safety information in the separate User Manual. Always wear protective gloves during installation to prevent injury from sharp edges. The minimum safety distance between the hob surface and the bottom of the cooker hood must be at least 65 cm.
Parts and Components
Before starting, verify that all parts are present:
- A: Main cooker hood unit
- B & C: Chimney sections
- W: Charcoal filters (for recirculation mode)
- I: Wall anchors (8x)
- L: Screws (8x)
- N: Screws (4x)
Installation Requirements
The hood can be installed in two modes: extraction (vented) or recirculation. Ensure you have the correct ducting diameter (120 mm or 150 mm) if using the extraction mode. The wall must be capable of supporting the weight of the unit. Use a spirit level to ensure the hood is mounted perfectly horizontal.
Step-by-Step Installation
- Marking: Determine the center line of the hob and mark the wall for the mounting brackets.
- Drilling: Drill the holes according to the template provided on page 7. Insert the wall anchors (I).
- Mounting: Secure the mounting brackets to the wall using the provided screws (L).
- Attaching the Hood: Hang the main hood unit (A) onto the brackets.
- Securing: Use the screws (L) to lock the hood in place.
- Chimney Assembly: Assemble the chimney sections (B and C) and secure them to the wall brackets using screws (N).
Ducting and Recirculation
For extraction mode, connect the ducting pipe to the top of the hood and secure it with clamps. Ensure the ducting path is as straight as possible to maintain efficiency. For recirculation mode, install the charcoal filters (W) onto the motor housing and ensure the air outlet is clear.
Filter Maintenance
The grease filters should be cleaned regularly. If using the unit in recirculation mode, the charcoal filters (W) must be replaced periodically as they cannot be washed. To access the filters, remove the grease filter panels from the underside of the hood.
Manufacturer information
Stoves
Practical help
Common problems
Hood is not extracting air effectively
Check if the ducting is restricted or if the charcoal filters are saturated and need replacement.
Unit is unstable or vibrating
Ensure all mounting screws (L) are fully tightened and the wall anchors (I) are securely seated in the wall.
Before use
- Verify the wall structure can support the weight of the hood.
- Ensure a minimum distance of 65 cm from the hob surface.
- Decide between extraction or recirculation mode.
- Wear protective gloves during the installation process.
- Check that all required screws and anchors are included.
Specs in practice
- Ø 120 mm / Ø 150 mm
- The required diameter for the exhaust ducting pipe.
Images and diagrams

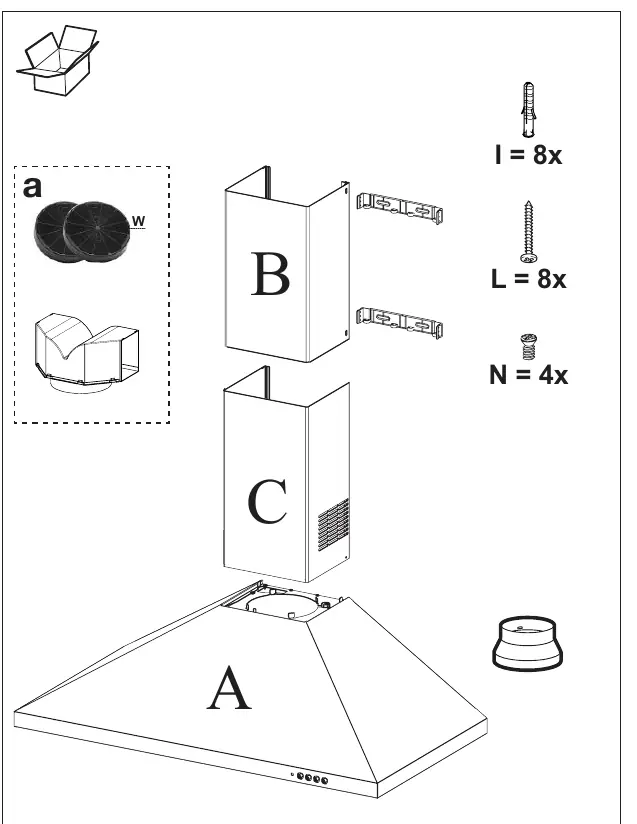

- Page 3: Identification of parts and hardware.
- Page 4: Safety distance requirements and ducting options.

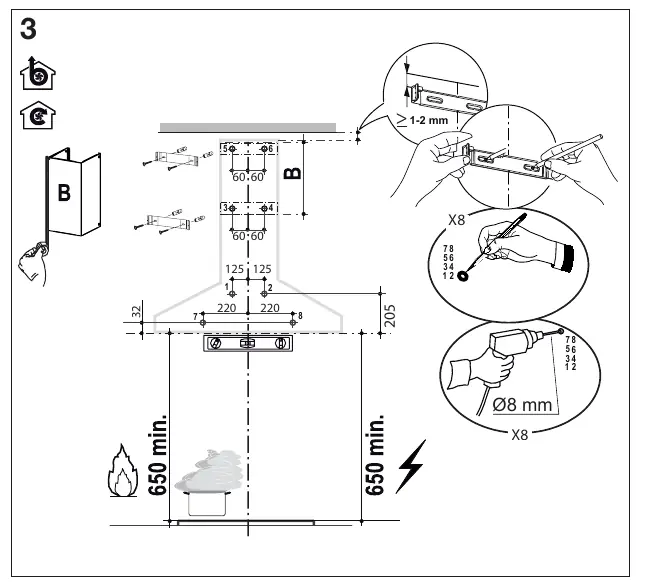

- Page 7: Drilling template and bracket positioning.

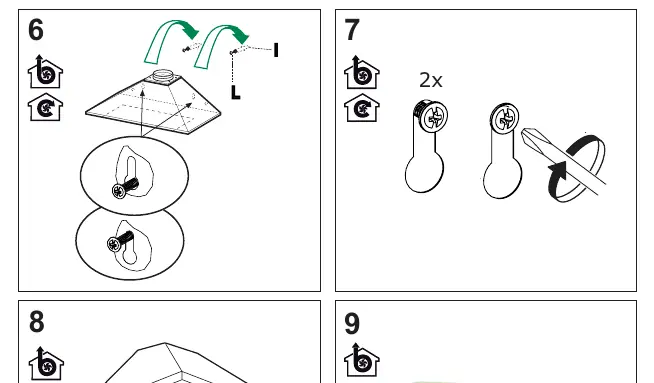

- Page 8-10: Step-by-step mounting and chimney assembly.
Model compatibility
- Compatible with both ducted extraction and recirculation modes.
