Sunricher 0-10V BLE Ceiling Mounted PIR Sensor Controller
Quick guide for the Sunricher 0-10V BLE Ceiling Mounted PIR Sensor Controller. Includes installation steps, wiring diagrams, operation instructions, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides essential information for the Sunricher 0-10V BLE Ceiling Mounted PIR Sensor Controller. Before beginning, ensure the power is disconnected. The device is designed for indoor use (IP20) and requires a 12-24VDC power supply. Configuration is performed via the Silvair commissioning tools. If the device needs to be reset, press and hold the reset button for 5 seconds until the indicator flashes.
Product Overview
The controller is a ceiling-mounted PIR sensor that supports Bluetooth mesh networking. It features daylight harvesting capabilities and provides a 0-10V signal output for dimming control. It is compatible with kinetic energy switches and EnOcean switches (EWSSB and EWSDB).
Installation

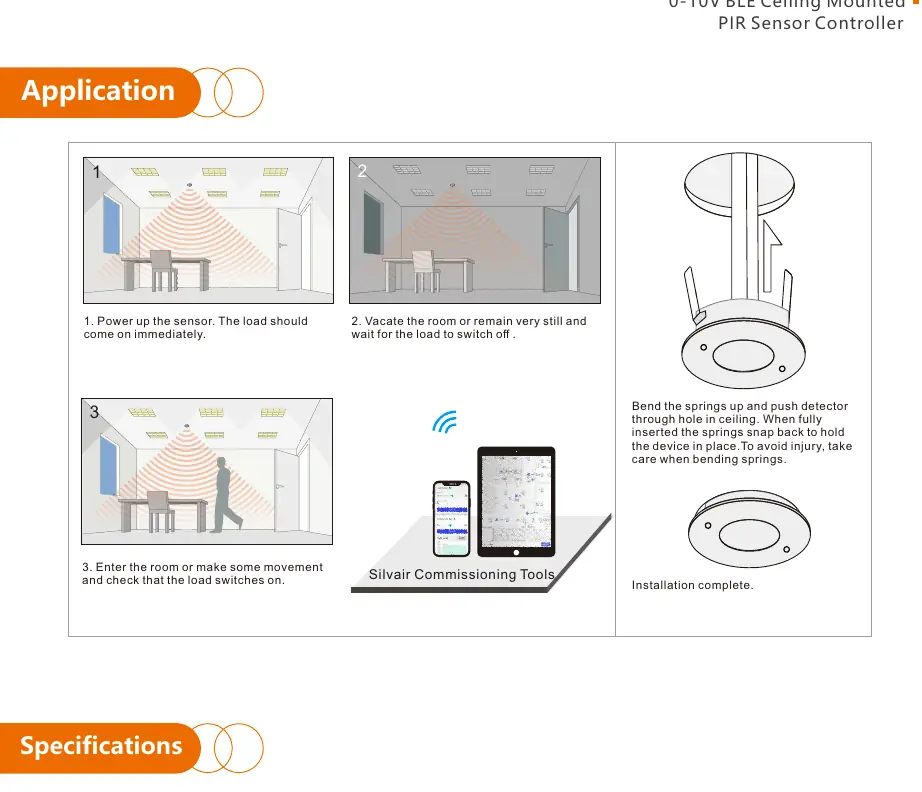

The sensor is designed for ceiling mounting using a spring-loaded mechanism:
- Ensure the installation area is clear.
- Bend the springs on the side of the detector upwards.
- Push the detector through the prepared hole in the ceiling.
- Release the springs; they will snap back to hold the device securely in place.
- Caution: Take care when bending the springs to avoid injury.
Wiring
Wiring must be performed according to the provided connection diagram. The device requires a 12-24VDC constant voltage power supply (CV PSU). Connect the V+ and GND terminals to the power supply. The 0-10V dimming signal is connected to the dimmable driver via the +10V and DIM terminals. Ensure all connections are secure before applying power.
Operation
The device operates within a Bluetooth mesh network. For initial setup and pairing, refer to the Silvair commissioning user manual. The sensor includes a reset function: press and hold the reset button on the controller for over 5 seconds until the indicator flashes to withdraw the device from the network.
Detection Pattern
The PIR sensor has a detection area diameter of 8 meters when mounted at a height of 2.5 meters. The detection area is divided into two parts: slow movement (person moving less than 0.3m/s) and quick movement (person moving faster than 0.4m/s).
Technical Specifications
- Input Voltage: 12-24VDC
- Output: 0-10V signal (Max 20mA)
- Operating Temperature: 0°C to 45°C
- Relative Humidity: 8% to 80%
- Wireless Range: 20m to 25m in typical indoor environments
- Waterproof Grade: IP20
Safety Warnings
- DO NOT install the device while power is applied.
- DO NOT expose the device to moisture.
- Ensure the installation complies with local electrical codes.
Practical help
Common problems
Device not responding or needs re-pairing
Perform a reset by pressing and holding the reset button for over 5 seconds until the indicator flashes.
Load does not switch on
Verify wiring against the connection diagram and ensure the 12-24VDC power supply is active.
Device exposed to moisture
The device is rated IP20 (indoor use only). If exposed to moisture, disconnect power immediately and inspect for damage.
Before use
- Ensure power is disconnected before starting installation.
- Verify that the power supply provides 12-24VDC.
- Check that the ceiling hole is appropriate for the device dimensions.
- Confirm you have access to Silvair commissioning tools for setup.
- Ensure the installation environment is dry (IP20).
Specs in practice
- 0-10V Output
- Provides the dimming control signal to compatible LED drivers.
- Detection Area
- 8m diameter coverage when mounted at a 2.5m height.
- Bluetooth Mesh
- Allows the device to transmit signals to neighboring devices for extended control range.
Images and diagrams
- The wiring diagram illustrates the connection from the 12/24V CV PSU to the sensor and the 0-10V dimmable driver.
- Ensure correct polarity for V+ and GND connections.
Model compatibility
- Compatible with Bluetooth mesh networks.
- Supports kinetic energy switches and EnOcean switches (EWSSB and EWSDB).
- Requires Silvair commissioning tools for configuration.
