Thermaltake G6 Direct Drive Racing Wheel with Pedals Bundle User Manual
Quick guide for the Thermaltake G6 Direct Drive Racing Wheel, covering assembly, pedal installation, desk mounting, calibration, and safety warnings.
Table of contents
Quick guide from the manual
This document provides assembly and usage instructions for the Thermaltake G6 Direct Drive Racing Wheel. It covers the setup of the base, pedal unit, and desk mounting, as well as calibration procedures and safety guidelines for optimal performance.
Product Overview
The G6 Direct Drive Racing Wheel is designed for PC (Windows 7/10/11) and features a 6Nm servo motor for force feedback, 12 function buttons, rotary knobs, a 5-way joystick, and Hall effect sensor paddle shifters.
Installation Guide
Base Mounting: Fix the base to your bracket using the 2-4 screw holes on the bottom. Connect the USB Type-A to C cable to your PC and the base. Connect the pedal unit to the base using the USB Type-B to C cable. Finally, connect the power adapter and press the power button.
Desk Clamp: Install the upper part of the clamp onto the base, attach the lower part, combine the components, and tighten the knobs securely to fix the unit to your desk.
Pedal Installation: Arrange the clutch, brake, and throttle pedals on the footrest and secure them with M4*10mm screws. Connect the pedals to each other using the provided RJ11 6P4C cables (Throttle to Brake, Clutch to Brake).
Quick Release Instructions
Align the 10 steel balls on the steering wheel with the 10 grooves on the wheelbase. Press the wheel into the base until it snaps into place. To remove, pull back on the outer black ring and pull the wheel out.
Calibration
If controls behave abnormally: 1. Press and hold A + VIEW buttons for 3 seconds to enter calibration mode. 2. Move the joystick in all four directions and press each shift paddle twice. 3. Press and hold B + VIEW buttons for 1 second to complete.
Safety and Maintenance
Ensure at least 10 cm of space around the base for ventilation. Do not block ventilation holes. The base will automatically reduce power if the motor exceeds 60°C and will shut down if it exceeds 70°C. Do not touch the motor if it overheats.
Manufacturer information
Thermaltake
Practical help
Common problems
Indicator light on the steering wheel does not turn on.
Remove and reinstall the wheel, check power connection, and ensure the USB cable is securely plugged into the PC.
Steering wheel or pedals unresponsive during gameplay.
Exit the game, unplug and replug the USB cable on the base, then restart the game.
Joystick or shift paddles behaving abnormally.
Enter calibration mode by holding A + VIEW for 3 seconds, perform the movement sequence, and save with B + VIEW.
Before use
- Ensure the base is securely mounted to a bracket or desk.
- Verify all cables (USB, Pedal, Power) are firmly connected.
- Download and install the latest Thermaltake Racing Control Software from www.thermaltake.com.
- Check that ventilation holes on the base are not blocked.
- Ensure the steering wheel is properly locked via the quick-release mechanism.
Specs in practice
- 6Nm Peak Torque
- The maximum force feedback strength provided by the servo motor.
- 16-bit Resolution
- High-precision input tracking for steering and pedal movements.
- Hall Effect Sensor
- Contactless sensor technology for high sensitivity and durability in paddle shifters.
Images and diagrams

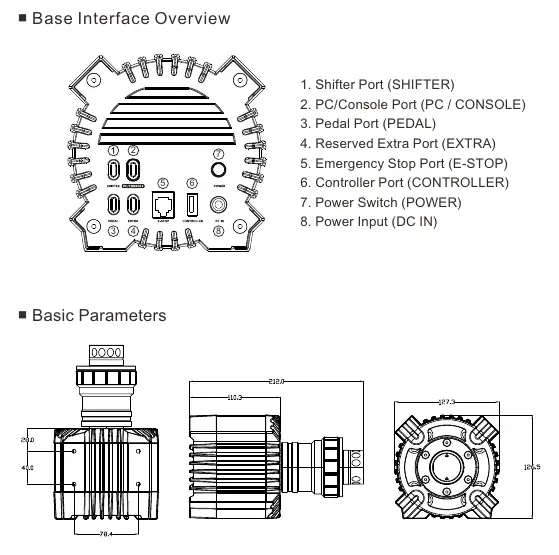

- Base Interface: Shows ports for Shifter, PC/Console, Pedal, Extra, E-Stop, Controller, Power Switch, and DC Input.
- Quick Release: Illustrates aligning 10 steel balls with grooves and using the guide line for correct orientation.
- Pedal Wiring: Shows the specific RJ11 connections between the brake pedal and the throttle/clutch pedals.
Model compatibility
- Compatible with Windows 7, 10, and 11.
- Intended for users aged 16 and older.
- Requires 10cm clearance around the base for ventilation.
