Installation Manual for Trio Lighting 2042602XX Garden Wall Lamp
A comprehensive installation guide for the Trio Lighting 2042602XX garden wall lamp. Includes wiring diagrams, technical specifications, safety requirements, and mounting instructions.
Quick answers from the manual
Quick answer
- The Trio Lighting 2042602XX is an outdoor wall lamp requiring 230V power and two GU10 bulbs (max 35W each). Installation involves mounting the base to the wall, connecting the L/N/Earth wires, and inserting the bulbs. p. 2
Key actions
- Mount the base plate to the wall using the provided screws and wall plugs. p. 2
- Connect the power supply wires to the terminal block (L, Earth, N). p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 230V~50Hz | Operating voltage | p. 2 |
| Bulb Socket | 2 x GU10 | Type of bulb required | p. 2 |
| Max Wattage | 35W | Maximum power per bulb | p. 2 |
| IP Rating | IP44 | Ingress protection rating | p. 2 |
Where to find it in the PDF
- Safety Warnings p. 1
- Installation and Specifications p. 2
Table of contents
Quick guide from the manual
This document provides essential installation and safety instructions for the Trio Lighting 2042602XX garden wall lamp. Before beginning any work, ensure the power supply is disconnected. The lamp is designed for outdoor use with an IP44 rating and requires two GU10 bulbs with a maximum wattage of 35W each.
Installation
The installation process involves mounting the fixture to the wall and connecting the electrical wiring. Follow these steps based on the provided diagram:
- Preparation: Ensure the power is switched off at the main circuit breaker.
- Mounting: Drill holes in the wall according to the fixture's mounting points and insert the wall plugs. Secure the base plate to the wall using the provided screws.
- Wiring: Connect the power supply wires to the terminal block. Ensure the Live (L), Earth (Ground), and Neutral (N) wires are connected to the corresponding terminals as indicated in the diagram.
- Assembly: Attach the main housing of the lamp to the base plate and secure it.
- Bulb Installation: Insert the two GU10 bulbs into the sockets and secure them.
Technical specifications
- Voltage: 230V~50Hz
- Bulb Type: 2 x GU10
- Maximum Wattage: 35W per bulb
- Protection Rating: IP44 (Splash-proof)
- Minimum Distance: 0.3 meters from illuminated objects
Safety and maintenance
Always read the safety instructions provided in the manual before starting the installation. Ensure the lamp is installed at least 0.3 meters away from any illuminated surfaces to prevent overheating. The IP44 rating indicates the fixture is protected against splashing water, making it suitable for outdoor garden environments. If you encounter issues, verify all electrical connections and ensure the bulbs are correctly seated.
Practical help
Common problems
Lamp does not turn on
Check if the power supply is active, verify that the bulbs are correctly installed, and ensure all wiring connections in the terminal block are secure.
Bulb overheating or flickering
Ensure the bulbs used do not exceed the maximum wattage of 35W and are compatible with the GU10 socket.
Before use
- Ensure the main power supply is switched off.
- Verify that the wall surface is suitable for mounting.
- Check that you have two GU10 bulbs (max 35W each).
- Confirm the installation location allows for a 0.3m distance from illuminated objects.
- Ensure all necessary tools (drill, screwdriver) are available.
Specs in practice
- 2 x GU10 max. 35W
- Requires two GU10 base bulbs, each not exceeding 35 watts.
Images and diagrams

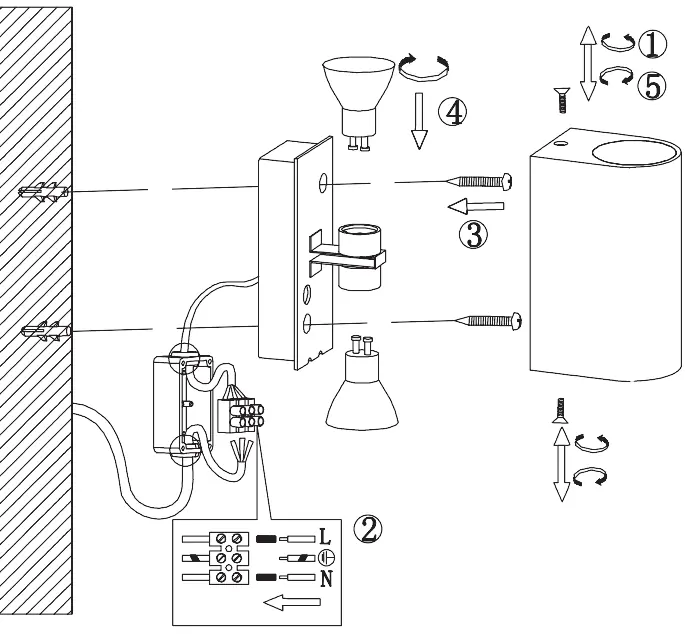

- The diagram illustrates the wiring connection to the terminal block (L, Earth, N).
- It shows the physical mounting of the base plate to the wall using screws and wall plugs.
- It depicts the insertion of the GU10 bulbs into the fixture housing.
Model compatibility
- Designed for outdoor use (IP44).
- Compatible with GU10 bulbs only.
